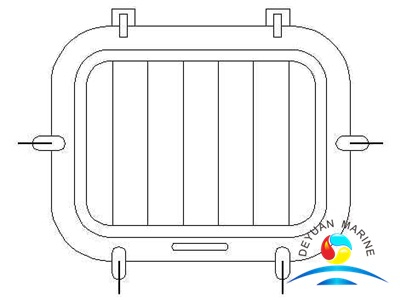

Product Description
Model | Nominal size | Cut-out size | Cover plate size | Coaming | Clear size | Weight | |||
B*L | B1*L1 | R | B2*L2 | t | t0 | H | B3*L3 | (Kg) | |
C | 470*620 | 450*600 | 90 | 520*670 | 3 | 4 | 120 | 300*425 | 8.2 |
6 | 7 | 9.3 | |||||||
520*770 | 500*750 | 570*820 | 3 | 4 | 355*500 | 8.2 | |||
6 | 7 | 10.9 | |||||||
620*920 | 600*900 | 670*970 | 6 | 7 | 2(300*425) | 12.2 | |||
820*1220 | 800*1200 | 870*1270 | 2(400*560) | 20.4 | |||||
D | 470*620 | 450*600 | 520*670 | 3 | 4 | 300*425 | 6.5 | ||
6 | 7 | 9.4 | |||||||
520*770 | 500*750 | 570*820 | 3 | 4 | 355*500 | 8.5 | |||
6 | 7 | 11.2 |
