Model 212 NK Approved Boat Aluminum Frame Fixed Rectangular Window

Origin: Made in China
Open type: Fixed type
Install: Bolt mount type/Welded
Clear size: 630*450mm etc
Glass thickness: 5/6/8mm
Certificate: CCS, BV, NK, DNV, etc
Delivery time: 7-30days
Payment terms: TT, western union, paypal etc
Brand: Deyuan Marine
Availability:

Product Description

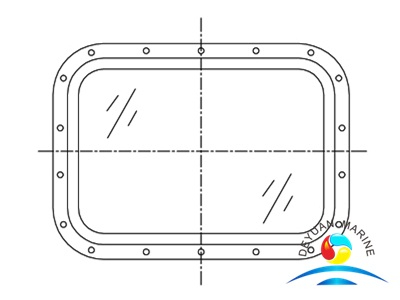

Model 212 NK Approved Boat Aluminum Frame Fixed Rectangular Window



Model Clear size Window frame size Cut-out size Decoration
thickness
Glass
thickness
Weight
W*h W1*h1 W2*h2 W3*h3 R S t t=5 t=6 t=8
QL-212R

QL-212F
560*400 600*440 650*490 605*445 80 User's
option
5、6、8 5.2 5.7 7.3
630*450 670*490 720*540 675*495 5.9 6.3 7.8
710*500 750*540 800*590 755*545 6.9 7.8 9.8
800*560 840*600 890*650 845*605 8.3 9.8 12.5
900*630 940*670 990*720 945*675 10.5 11.8 15.1
This series be suitable for inland
vessels.


Marked sample:Aluminum fixed type rectangular window which clear size 630*450,with round corner R80(R)
Marked as:RECTANGUALR WINDOW 630*450 QL-212R
