Model 216 Ship Marine Aluminum Sliding Window With Mosquito Screen

Origin: Made in China
Open type: Sliding type
Corner: Square/Round
Clear size: 560*400mm etc
Glass thickness: 5/6mm
Certificate: CCS, BV, NK, DNV, etc
Delivery time: 7-30days
Payment terms: TT, western union, paypal etc
Brand: Deyuan Marine
Availability:

Product Description

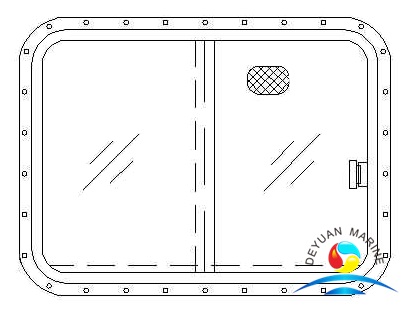

Model 216 Ship Marine Aluminum Sliding Window With Mosquito Screen



Model Clear size Window frame size Cut-out size Decoration
thickness
Glass
thickness
Weight
W*h W1*h1 W2*h2 W3*h3 R S t t=6 t=8
QL-216R

QL-216F
560*400 616*456 662*502 624*464 80 User's
option
5、6 6.4 7.5
630*450 686*506 732*552 694*514 7.8 8.9
710*500 766*556 812*602 774*564 9.3 10.5
800*560 856*616 902*662 864*624 10.8 12.1
900*630 956*686 1002*732 964*694 12.9 14.3
1000*630 1056*686 1102*732 1064*694 14.5 15.8
Aluminum sliding window opening direction as rule CB/T 3746-1996.This series be suitable for inland
vessels.


Marked sample:Aluminum sliding window with mosquito screen which clear size 630*450,with round-corner R80(R).
left slided(L)
Marked as:SLIDING WINDOW 630*450-L QL-216R
