Product Description

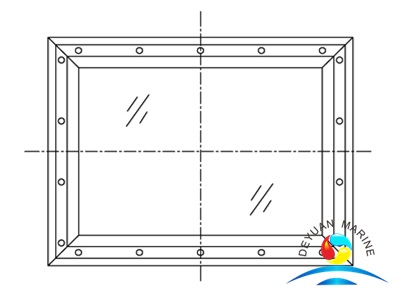

Model 211 Marine Bolt Mount Type Aluminum Frame Fixed Rectangular Windows
| Model | Clear size | Window frame size | Cut-out size | Decoration thickness | Glass thickness | Weight | ||||
| W*h | W1*h1 | W2*h2 | W3*h3 | R | S | t | t=5 | t=6 | t=8 | |
| QL-211F | 560*400 | 570*410 | 640*480 | 570*410 | 80 | User's option | 5、6、8 | 4.9 | 5.7 | 6.9 |
| 630*450 | 640*460 | 710*530 | 640*460 | 6.1 | 7 | 8.5 | ||||
| 710*500 | 720*510 | 790*580 | 720*510 | 7 | 8 | 10 | ||||
| 800*560 | 810*570 | 880*640 | 810*570 | 8.9 | 9.8 | 12.9 | ||||
| 900*630 | 910*640 | 980*710 | 910*640 | 11.2 | 12.9 | 16.3 | ||||
| This series be suitable for inland vessels. | ||||||||||
