Model 203 Aluminum Rectangular Window

  • DEYUAN MARINE

Product Description

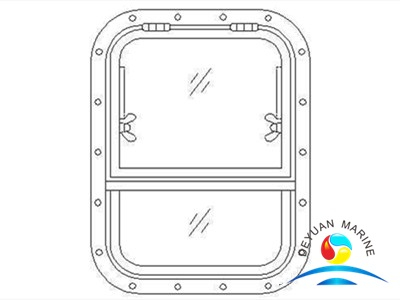

Model 203 Aluminum Rectangular Window
Model Clear size Window frame size Cut-out size Decoration
thickness
Glass
thickness
Weight
(Kg)
W*h W1*h1 L W2*h2 W3*h3 R S t t=6 t=8
QL-203-B

QL-218-B
450*630 510*690 User's
option
562*742 516*696 80 User's
option
6、8 12.9 14.2
500*710 560*770 612*822 566*776 14.8 16.2
560*800 620*860 672*912 626*866 16.5 18.2
630*800 690*860 742*912 696*866 17.3 19.1
710*800 770*860 822*912 776*866 18.2 19.9
710*900 770*960 822*1012 776*966 19.2 21
QL-203-D

QL-218-D
450*630 560*712 614*766 550*702 13.4 14.7
500*710 610*792 664*846 600*872 15.3 16.7
560*800 670*882 724*936 660*872 17 18.7
630*800 740*882 794*936 730*872 17.8 19.6
710*800 820*882 874*936 810*872 18.7 20.4
710*900 820*982 874*1036 810*972 19.7 21.5

Instruction:'S' indicates overall thickness of hull's decoration.if need to provide decoration frame,the
thickness is requested upon order.Weights in the form excluding the decorate frame.
'L' indicates length of the fixed part of aluminum rectangular window,it need be confirmed by user.If user
did not make that confirmation,it will be fabricate as 1/3 as 'W'.
Model Name
QL-203R-B Out-upward lower part fixed
type round-corner aluminuim
rectangular window
QL-203R-D Out-upward lower part fixed
type round-corner aluminuim
rectangular window

Model Name
QL-203F-B Out-upward lower part fixed
type square-corner aluminuim
rectangular window
QL-203F-D Out-upward lower part fixed
type square-corner aluminuim
rectangular window

Model Name
QL-218R-B Outward side lower part fixed
type round-corner aluminuim
rectangular window
QL-218R-D Out-upward lower part fixed
type round-corner aluminuim
rectangular window

Model Name
QL-218F-B Out-upward lower part fixed
type square-corner aluminuim
rectangular window
QL-218F-D Out-upward lower part fixed
type square-corner aluminuim
rectangular window

Marked sample:1 out-upward opened lower part fixed type rectangular window which
nominal size 710*900,L=300mm,model D structure.
2 Outward left side opened lower part fixed type rectangular window which nominal
size 710*900,L=350mm,model B structure.
Marked as:1 ALUMINIUM RECTANGULAR WINDOW 710*900 OTB-L=300*QL-203RD
2 ALUMINIUM RECTANGULAR WINDOW 710*800 OLB-L=350*QL-218FB
