8×65 Class Round Strand Wire Rope

8×65 Class Round Strand Wire Rope

Product Introduction:

Engineered for the most extreme heavy‑lift, deep‑sea mooring, and large‑scale offshore operations, our 8×65 Class Round Strand Wire Rope (construction code 8×65FNS) represents the ultimate evolution in large‑diameter wire rope technology. Manufactured in strict compliance with GB/T 20067‑2006 — the Chinese national standard covering diameters up to 200 mm — this rope features an advanced 8‑strand configuration with 65 wires per strand, incorporating a compound‑laid non‑slip (FNS) strand design.

The FNS construction employs a multi‑stage twisting process with a layered wire arrangement, creating a combination of point‑and‑line contact that delivers:

1.Exceptional breaking strength — the high metallic fill factor and optimized wire distribution maximise load capacity for each diameter.

2.Superior fatigue endurance — reduced internal stress concentrations extend service life under repeated bending and sheave contact.

3.Outstanding crush and abrasion resistance — the compact strand geometry withstands severe drum crushing and abrasive wear.

4.Minimal rotation and excellent spooling — the 8‑strand geometry inherently reduces torque, ensuring stable, predictable performance in single‑fall hoisting and multi‑layer drum winding.

What sets this rope apart is its expanded diameter range — from 60 mm up to 200 mm — making it the ideal solution for the world’s largest cranes, deepest mooring systems, and most demanding industrial applications where standard‑sized ropes fall short.

Two core configurations are available to meet diverse operational requirements:

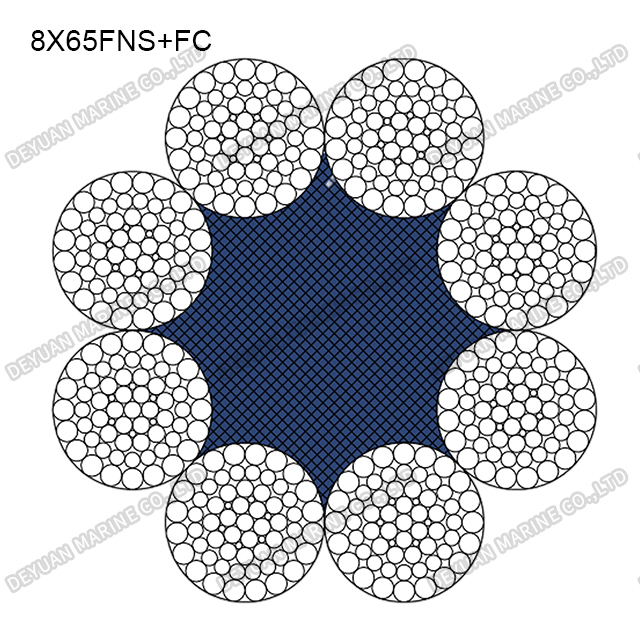

*FC (Fiber Core) – provides natural elasticity and shock absorption, reducing peak dynamic loads and offering excellent flexibility. The fibre core retains lubricant effectively, lowering maintenance frequency in moderate to heavy‑duty cycles.

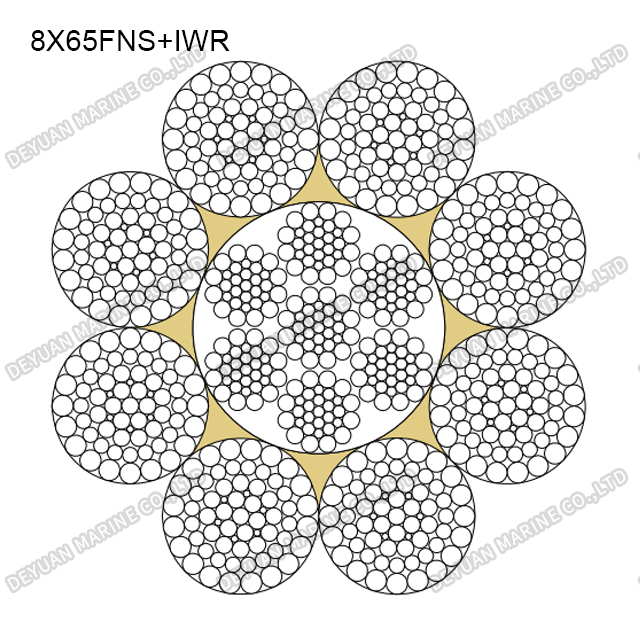

*IWR (Independent Wire Rope Core) – delivers a fully metallic core that maximises the rope’s metallic cross‑section, providing the highest possible breaking loads, superior crush resistance, and outstanding performance in extreme tension and high‑pressure conditions. This option is essential for ultra‑deep‑water mooring, super‑heavy‑lift cranes, and high‑capacity towing hawsers.

Technical Specifications：

The rope is available with various surface finishes — bright, galvanised, or specially lubricated — to provide exceptional corrosion resistance in seawater and humid marine environments. Custom lengths, reeling drums, and end terminations (sockets, thimbles, or swaged fittings) can be supplied to meet specific project specifications.

Typical Applications Include:

*Ultra‑large shipbuilding gantry cranes and floating cranes.

*Deep‑sea mooring systems for floating production units (FPSOs, semi‑submersibles).

*Heavy‑lift offshore platform cranes and subsea installation operations.

*Towing hawsers for very large crude carriers (VLCCs) and container ships.

*Large‑scale dredging and underwater salvage.

*Mega‑mining excavators and industrial hoists.

Every production batch undergoes stringent quality control — from raw material wire rod inspection through to final proof‑load testing. Our ropes can be supplied with certifications from leading classification societies, including API‑9A, ISO 9001, CCS, ABS, DNV, LR, and CE, ensuring full traceability and compliance with international marine and industrial standards.

With its advanced FNS strand geometry, 8‑strand stability, and unprecedented diameter range up to 200 mm, the 8×65 Class Round Strand Wire Rope is the definitive choice for professionals who demand the highest levels of strength, durability, and safety in the most extreme lifting and mooring environments on Earth.
