6×19W Class Round Strand Wire Rope

6×19W Class Round Strand Wire Rope

Product Introduction:

Engineered to withstand the harshest oceanic environments, our 6×19W Class Round Strand Wire Rope is a top-tier hoisting and rigging solution designed specifically for heavy-duty maritime operations. This rope features a classic six-strand construction, each strand composed of 19 individual wires in a Warrington pattern, delivering an optimal equilibrium between tensile strength, wear resistance, and operational flexibility.

Construction Details & Core Options：

The 6×19W Warrington construction utilizes a precise wire arrangement to ensure excellent load distribution across the strands, reducing internal friction and extending service life. As shown in our standard configurations, this rope is available in two distinct core types:

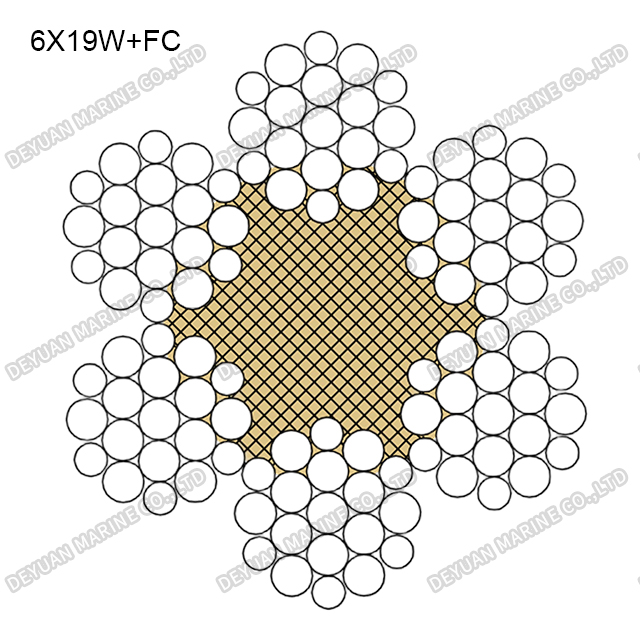

*6×19W + FC (Fibre Core): Built with a natural or synthetic fiber core. This variant offers superior flexibility, excellent shock absorption, and reduced weight. It is the preferred choice for mooring lines, general cargo handling, and towing where the rope must bend easily over sheaves.

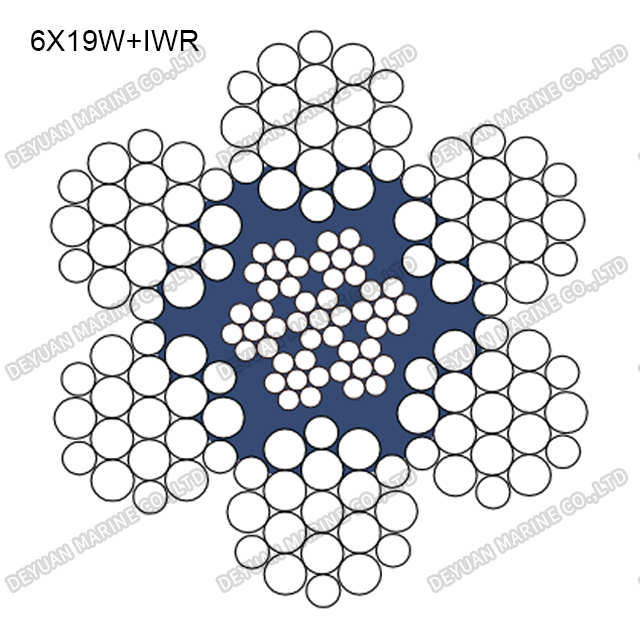

*6×19W + IWR (Independent Wire Rope Core): Constructed with an independent steel wire strand as the central core. This design drastically enhances resistance to crushing and radial compression, making it ideal for multi-layer spooling on winches and heavy-duty crane operations requiring extreme durability.

Technical Specifications：

Primary Applications：

The exceptional reliability of this 6×19W round strand rope makes it indispensable across multiple maritime sectors, including:

*Ship mooring and anchorage.

*Port, harbor, and deck cranes.

*Tugboat towing and haulage.

*Commercial fishing trawling.

*Floating offshore platform rigging.

Maintenance & Operational Care：

To maximize the lifespan of the rope, we recommend strict adherence to proper lubrication schedules, especially for the FC core rope which relies on internal lubrication. Regular visual inspections for broken wires, kinking, or localized wear are critical, particularly around termination fittings and sheave contact points. For the IWR variants, special attention should be paid to preventing core slippage under highly asymmetrical loads.

Quality Standards:

Our entire production line conforms to rigorous international standards, including GB/T 8918, ISO 2408, and EN 12385 standards. Each batch undergoes rigorous tensile and torsion testing to guarantee consistent maritime safety and performance.
