Product Description
6×19 Steel Wire Rope For Elevators
Product Introduction:
Our 6×19 Steel Wire Rope is a high-performance lifting solution specifically designed for elevator applications. Manufactured in strict accordance with the national standard GB 8903-2005, this rope ensures optimal safety, durability, and operational efficiency for both passenger and freight elevators.

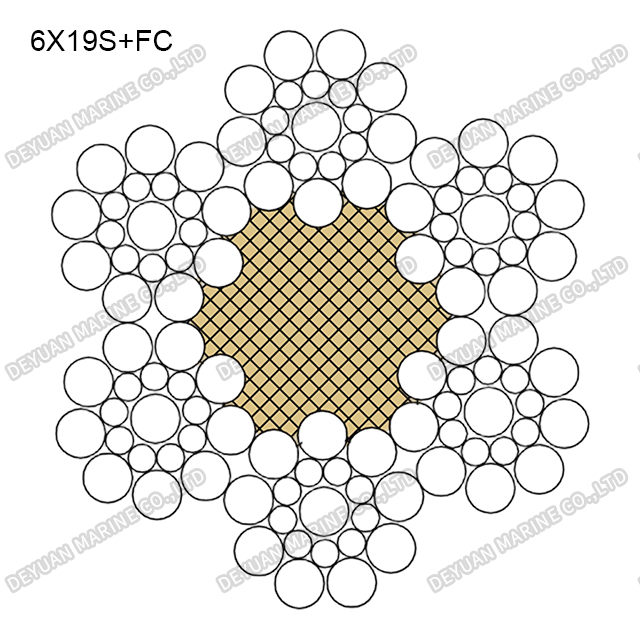

Structural Excellence (6X19S+FC)：
This rope features a 6X19S+FC construction, comprising 6 strands wound around a central Fiber Core (FC). The "S" denotes the Seale construction within each strand, where a core wire is surrounded by an inner layer of thicker wires and an outer layer of finer wires. This specialized arrangement provides:
1.Superior Flexibility: The fiber core acts as a cushion, reducing internal friction and providing excellent flexibility for the frequent bending and bending cycles of elevator traction systems.
2.Smooth Surface & Wear Resistance: The outer layer of fine wires ensures a smooth exterior, minimizing wear on elevator sheaves and reducing vibration and noise during operation.
Technical Specifications：
| Construction: 6×19S+FC | ||||||||
| Standard: GB/T 8903-2005 | ||||||||
| Nominal Diameter | Approx.Weight | Minimun Breaking Load of Rope(KN) | ||||||
| Dual Strength (MPa) | Single Strength (MPa) | |||||||
| mm | kg/100m | 1180/1770 | 1320/1620 | 1370/1770 | 1570/1770 | 1570 | 1620 | 1770 |
| 6 | 12.9 | 16.3 | 16.8 | 17.8 | 19.5 | 18.7 | 19.2 | 21 |
| 6.3 | 14.2 | 17.9 | - | - | 21.5 | - | 21.2 | 23.2 |
| 6.5 | 15.2 | 19.1 | 19.7 | 20.9 | 22.9 | 21.9 | 22.6 | 24.7 |
| 8 | 23 | 28.9 | 29.8 | 31.7 | 34.6 | 33.2 | 34.2 | 37.4 |
| 9 | 29.1 | 36.6 | 37.7 | 40.1 | 43.8 | 42 | 43.3 | 47.3 |
| 9.5 | 32.4 | 40.8 | 42 | 44.7 | 48.8 | 46.8 | 48.2 | 52.7 |
| 10 | 35.9 | 45.2 | 46.5 | 49.5 | 54.1 | 51.8 | 53.5 | 58.4 |
| 11 | 43.4 | 54.7 | 54.3 | 59.5 | 65.5 | 62.7 | 64.7 | 70.7 |
| 12 | 51.7 | 65.1 | 67 | 71.3 | 77.9 | 74.6 | 77 | 84.1 |
High Tensile Strength & Reliability
As detailed in our specification sheet, this wire rope is engineered with exceptional breakage resistance. It offers a wide range of Minimum Breaking Forces (kN) to match your specific load requirements.
*Single Strength: 1570 MPa, 1620 MPa, 1770 MPa.
*Dual Strength: 1180/1770, 1320/1620, 1370/1770, 1570/1770 MPa.
Technical Specifications:
*Nominal Diameters: Ranging from 6 mm to 12 mm.
*Reference Weight: 12.9 kg to 51.7 kg per 100 meters.
*Safety Standard: GB 8903-2005 Certified.
