6×41 Class Round Strand Wire Rope

6×41 Class Round Strand Wire Rope

Product Introduction:

Our Marine 6×41 Class Round Strand Wire Rope is a premium heavy‑lift and mooring solution, designed for the most demanding shipboard and offshore operations. The 6‑strand configuration with a Warrington‑Seale (WS) outer layer – containing 41 wires per strand – delivers an optimal balance of flexibility, abrasion resistance, and fatigue life, outperforming coarser constructions in cyclic loading applications.

Two core options are available to suit different working conditions:

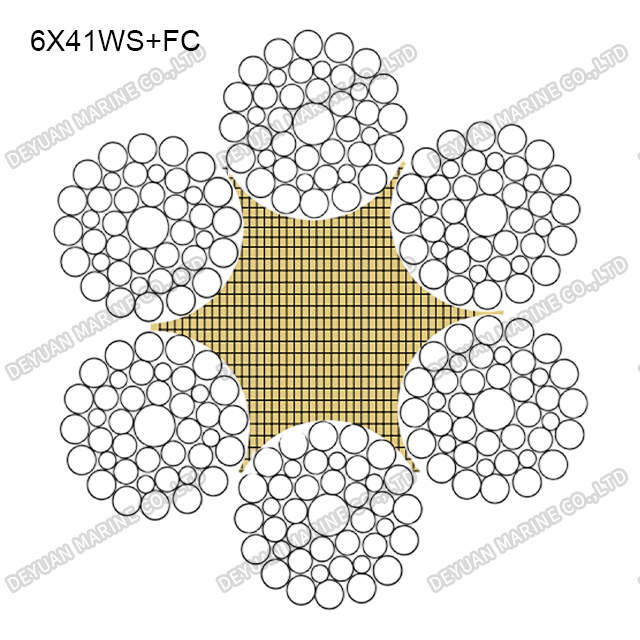

*6×41WS + FC (Fibre Core) – offers excellent shock absorption and elasticity, ideal for towing, mooring, and cargo handling where dynamic surges occur.

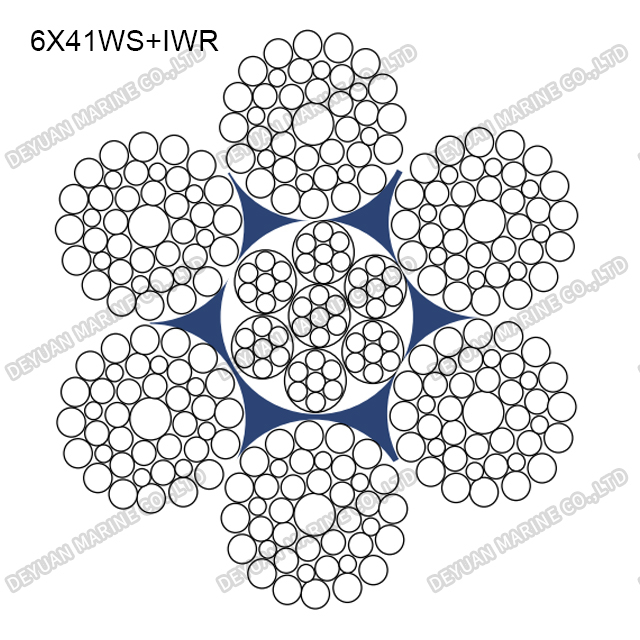

*6×41WS + IWR (Independent Wire Rope Core) – provides superior crush resistance and higher breaking strength, recommended for deep‑water anchoring, winch drums, and fixed rigging under high tension.

Manufactured strictly in accordance with GB/T20118‑2017 and GB/T8918‑2006, this rope is available in nominal diameters from 8 mm to 120 mm, with strength grades up to 1960 MPa (and alternative grades as per the table). The comprehensive specification table includes approximate weight (kg/100m) and minimum breaking load (kN) for each diameter, core type, and tensile grade – allowing precise selection for safe and efficient design. Galvanized or bright finishes resist corrosion in salt‑water environments.

Typical applications include shipboard cranes, deck winches, heavy‑lift offshore platforms, dredging lines, and salvage operations. Custom lengths, lubrication, and end terminations are supplied on request. All products are proof‑tested and certified to meet international safety standards.

Technical Specifications：

Deyuan Marine provides one-stop sourcing services and offers tailor-made products on request.
