6×26 Class Round Strand Wire Rope

6×26 Class Round Strand Wire Rope

Product Introduction:

Engineered for the most demanding marine and offshore applications, our 6×26 Class Round Strand Wire Rope features a Warrington‑Seale (WS) strand design – six strands each composed of 26 wires, with outer layers formed by alternating thick and thin wires. This unique arrangement creates a remarkably smooth surface, significantly enhancing abrasion resistance and bending fatigue life compared to conventional filler‑wire designs. The WS construction also provides excellent resistance to crushing and distortion, making it ideal for multi‑layer spooling on winch drums and sheave systems.

Fully compliant with GB/T 20118‑2017, this rope is available in two core options to suit different operational needs:

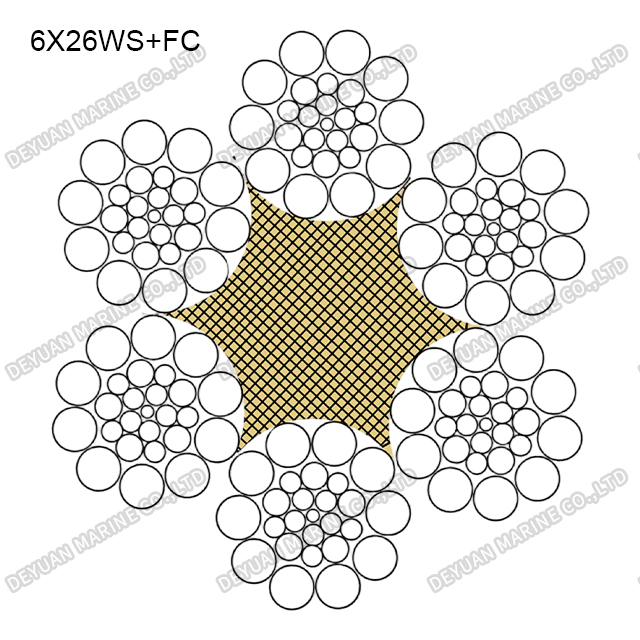

*FC (Fibre Core) – offers superior flexibility and internal lubrication, perfect for dynamic bending applications.

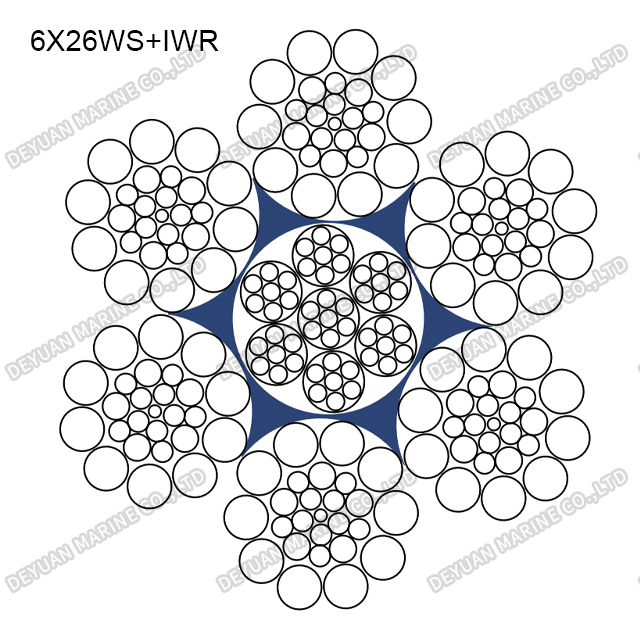

*IWRC (Independent Wire Rope Core) – delivers maximum crush resistance and higher breaking strength for heavy‑duty lifting and towing.

Typical diameter range: 8 mm to 120 mm (custom sizes available).

Tensile grades: 1670 MPa, 1770 MPa, 1870 MPa, and 1960 MPa – with breaking loads and approximate weights per 100 m provided upon request (actual weight tolerance ≤ ±6 % as per standard).

Key Marine Advantages:

*The WS lay ensures low stretch and high stability under cyclic loading.

*Hot‑dip galvanized finish (standard) protects against saltwater corrosion; bright finish optional.

*Ideal for mooring lines, tugboat towing springs, crane hoist cables, anchor pendants, and offshore platform winch ropes – especially where long service life and resistance to wear are critical.

Every coil is proof‑tested and certified, and we offer custom lengths, end fittings, and packaging to meet your vessel’s specific requirements.

Technical Specifications：

Deyuan Marine provides one-stop sourcing services and offers tailor-made products on request.
