6×29 Class Round Strand Wire Rope

6×29 Class Round Strand Wire Rope

Product Introduction:

Our 6×29 Class Round Strand Wire Rope is engineered to deliver an optimal balance between strength, flexibility, and wear resistance for demanding marine environments. The Filler Wire (Fi) strand design – six strands each containing 29 wires with additional filler wires compacting the cross‑section – provides a larger metallic area than standard 6×37 ropes, resulting in higher breaking loads and enhanced abrasion resistance, while the extra wires (compared to 6×25Fi) offer improved flexibility and bending fatigue performance. This makes it an excellent all‑round choice for shipboard applications that require both durability and manoeuvrability.

Manufactured in strict accordance with GB/T 20118‑2017, the rope is available in two core configurations:

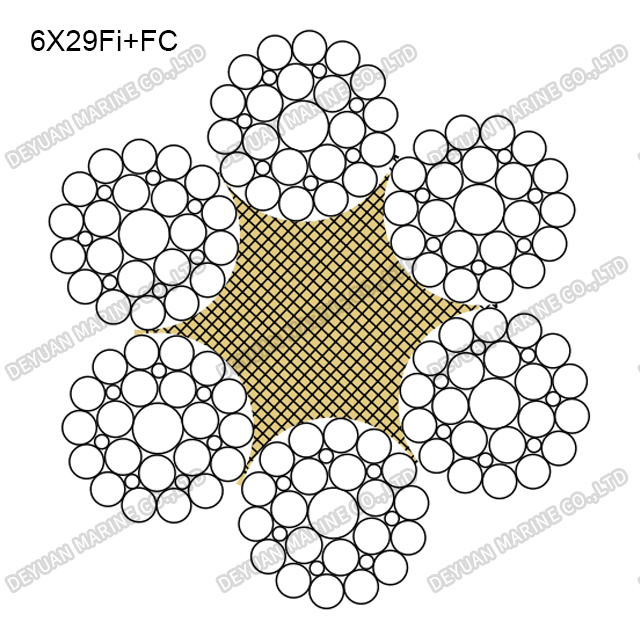

*FC (Fibre Core) – provides superior shock absorption and internal lubrication, ideal for dynamic and multi‑plane bending.

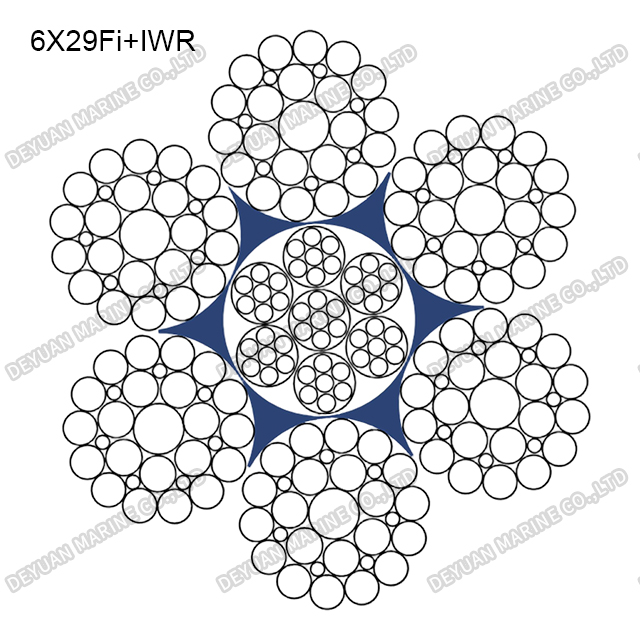

*IWRC (Independent Wire Rope Core) – delivers exceptional crush resistance and maximum tensile strength, suited for heavy‑duty lifting and multi‑layer spooling.

Specification Highlights:

1.Diameter range: 8 mm – 120 mm (nominal), with custom sizes on request.

2.Tensile grades: 1670 MPa, 1770 MPa, 1870 MPa, and 1960 MPa – offering breaking loads and approximate weights (per 100 m) as per the standard tables (actual weight tolerance ≤ ±6 %).

3.Surface finish: Hot‑dip galvanised as standard for superior corrosion protection in saltwater; bright (uncoated) finish also available upon request.

Key Marine Advantages:

1.The Fi construction ensures a smooth, round profile that reduces wear on sheaves and drums.

2.Excellent resistance to crushing, deformation, and fatigue – prolonging service life in mooring, towing, and cargo handling.

3.Proven performance in offshore platforms, tugboats, crane hoists, anchor pendants, and winch lines.

All ropes are proof‑loaded, inspected, and supplied with mill test certificates. We offer custom lengths, end terminations, and packaging to meet your vessel’s operational requirements.

Technical Specifications：

Deyuan Marine provides one-stop sourcing services and offers tailor-made products on request.
