Product Description

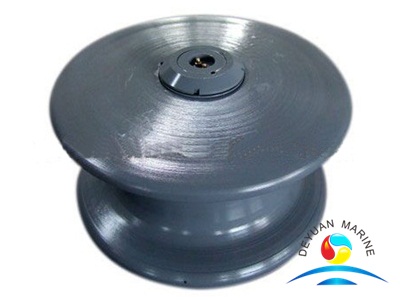

Marine Mooring Roller Fairlead NS2585
Introduction of Roller Fairlead
Roller Fairlead ,also known as warping roller or guide roller, is a type of ship's mooring fitting installed on board to lead and change the direction of mooring ropes.
The roller fairlead usually made from high quality cast steel or cast iron and finished with good workmanship.
DEYUAN MARINE offers a comprehensive range of warping rollers, fairlead rollers to meet clients' different request
ISO13755 Guide rollers, type A warping roller
ISO13755 Guide rollers, type B warping roller
ISO13755 Steel plate rollers, type C warping roller with dust cover
JIS F2014 single guide rollers
JIS F2014 Two Roller Fairlead In Group Open Roller Type
JIS F2014 Three Roller Fairlead In Group Open Roller Type
JJIS F2014 Two Roller Fairlead In Group Closed Roller Type
JJIS F2014 Three Roller Fairlead In Group Closed Roller Type
Should any of guide rollers or warping rollers be interested of you, pls feel free to contact DEYUAN MARINE for a catalog.
Roller Fairlead NS2585 Warping Roller
| ROLLER DIA (mm) | Wire Rope's Maximum Diameter(mm) | Outline Dimension(mm) | Weight (kg) | |||||||||
| synthetic fiber rope | hemp rope | Tensile Strength 1550N/mm² | D1 | D0 | D7 | H | s | t | k | |||
| 6×24 | 6×37 | |||||||||||
| 150 | 32 | 45 | 17 | 15 | 240 | 90 | 79 | 154 | 5 | 12 | 9 | 24.8 |
| 200 | 40 | 55 | 22.5 | 19.5 | 310 | 115 | 99 | 186 | 5 | 14 | 10 | 49.3 |
| 250 | 45 | 65 | 24 | 24 | 380 | 135 | 119 | 230 | 6 | 14 | 10 | 92 |
| 300 | 50 | 70 | 30 | 28 | 440 | 155 | 129 | 255 | 7 | 16 | 12 | 127 |
| 350 | 55 | 75 | 37.5 | 34.5 | 500 | 175 | 149 | 271 | 7 | 18 | 13 | 168 |
| 400 | 65 | 85 | 41 | 39 | 560 | 185 | 159 | 307 | 7 | 20 | 14 | 252 |
| 450 | 80 | - | 44.5 | 43 | 630 | 210 | 178 | 316 | 7 | 20 | 14 | 310 |
