Cast Steel JIS F2014-87 Marine Single Warping Roller

Brand: DEYUAN MARINE
Standard: JIS F2014-87
Roller diameter: 100mm-450mm
Material: Cast iron or cast steel
Hemp rope dia.: 40mm-85mm
Synthetic fiber rope Dia,: 28mm-80mm
Certificate: CCS,ABS,RINA,LR,BV,DNV etc
Delivery time: depends on order
Orgin:China
Payment:T/T .L/C etc
  • Standard: JIS F2014-87
  • Roller diameter: 100mm-450mm
  • Material: Cast iron or cast steel
  • Hemp rope dia.: 40mm-85mm
  • Synthetic fiber rope Dia,: 28mm-80mm
  • Certificate: CCS,ABS,RINA,LR,BV,DNV etc
  • Delivery time: depends on order
Availability:

Product Description

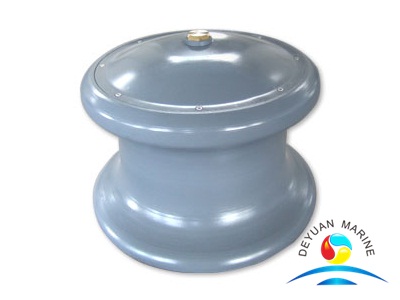

Cast Steel Marine Warping Roller JIS F2014-87

Cast Steel Marine Warping Roller product description

Introduction of JIS F2014-87  Marine Warping Roller

This type of warping roller is designed according to the standard of JIS F2014-87.Warping roller diameter is from100mm to 450mm,suitable for rope diameter from 40mm to 80mm.


Material for the warping roller is  cast iron or cast steel,available certificate is CCS,ABS,LR,DNV,BV,RINA etc.
Apart from JIS F2014-87 warping rollers, we still offer other rollers like guide roller with stand(open type &close type),DIN81906 warping roller,DIN80907 warping roller with pedestal type A and type B.
Warmly welcome you to send us your inquiry if you are interested.

Cast Steel Marine Warping Roller technical parameters

JIS F2014-87 Warpingg roller data for your reference

NOMINAL DIA
(mm)
Ø
(mm)
1
(mm)
H
(mm)
C
(mm)
WEIGHT
(kg)
150 150 240 195 3 32.1
200 200 310 235 3 64.6
250 250 380 282 4 108
300 300 440 305 4 159
350 350 500 330 4 235
400 400 560 355 5 336

JIS F2014-87 Single Warping Roller
