JIS F2014 Fairlead Roller In Group Closed Roller Type

Brand:Deyuan Marine
Product Name: Roller Fairlead
Material:Steel Casting
Type: Closed Roller Type
Standard: JIS F2014
Nominal Dia.:150mm~450mm
Certificate:CCS, LR, DNV, ABS, BV, NK etc
Place of origin: China

Product Description

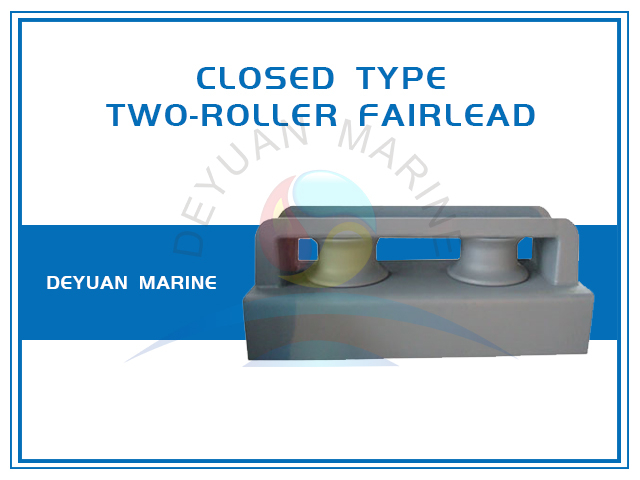

JIS F2014 Fairlead Roller In Group Closed Roller Type

JIS F2014 Fairlead Roller manufacturers product description

Introduction of JIS F2014 Fairlead Closed Roller Type

Closed roller type fairlead is a type of ship's mooring fitting that designed and fabricated as per the JIS F2014 Japanese Industiral Standard.

JIS F2014 Fairlead can be delivered in closed type with two rollers or three rollers and to be installed on board to lead and change the direction of mooring ropes.

Apart from JIS F2014 closed roller type fairleads, DEYUAN MARINE also supplies open roller type fairlead with two rollers or three rollers, neither closed roller  fairleads nor open roller types fairleads, both can be delivered with any IACS certificate like CCS, LR, BV, DNV, ABS, NK etc.



DEYUAN MARINE offers a comprehensive range of warping rollers, fairlead rollers to meet clients' different request

  • ISO13755 Warping rollers, type A steel roller

  • ISO13755 Warping rollers,  type B steel roller

  • ISO13755 Steel plate rollers, type C warping roller with dust cover

  • JIS F2014 single guide rollers

  • JIS F2014 Two Roller Fairlead Open Type

  • JIS F2014 Three Roller Fairlead  Open Type

  • JJIS F2014 Two Roller Fairlead In Group Closed Type

  • JJIS F2014 Three Roller Fairlead In Group Closed Type

If you are looking for any warping rollers or rollers fairleads for your project, pls donot hesitate to contact DEYUAN MARINE for more details.

JIS F2014 Fairlead Roller suppliers technical parameters

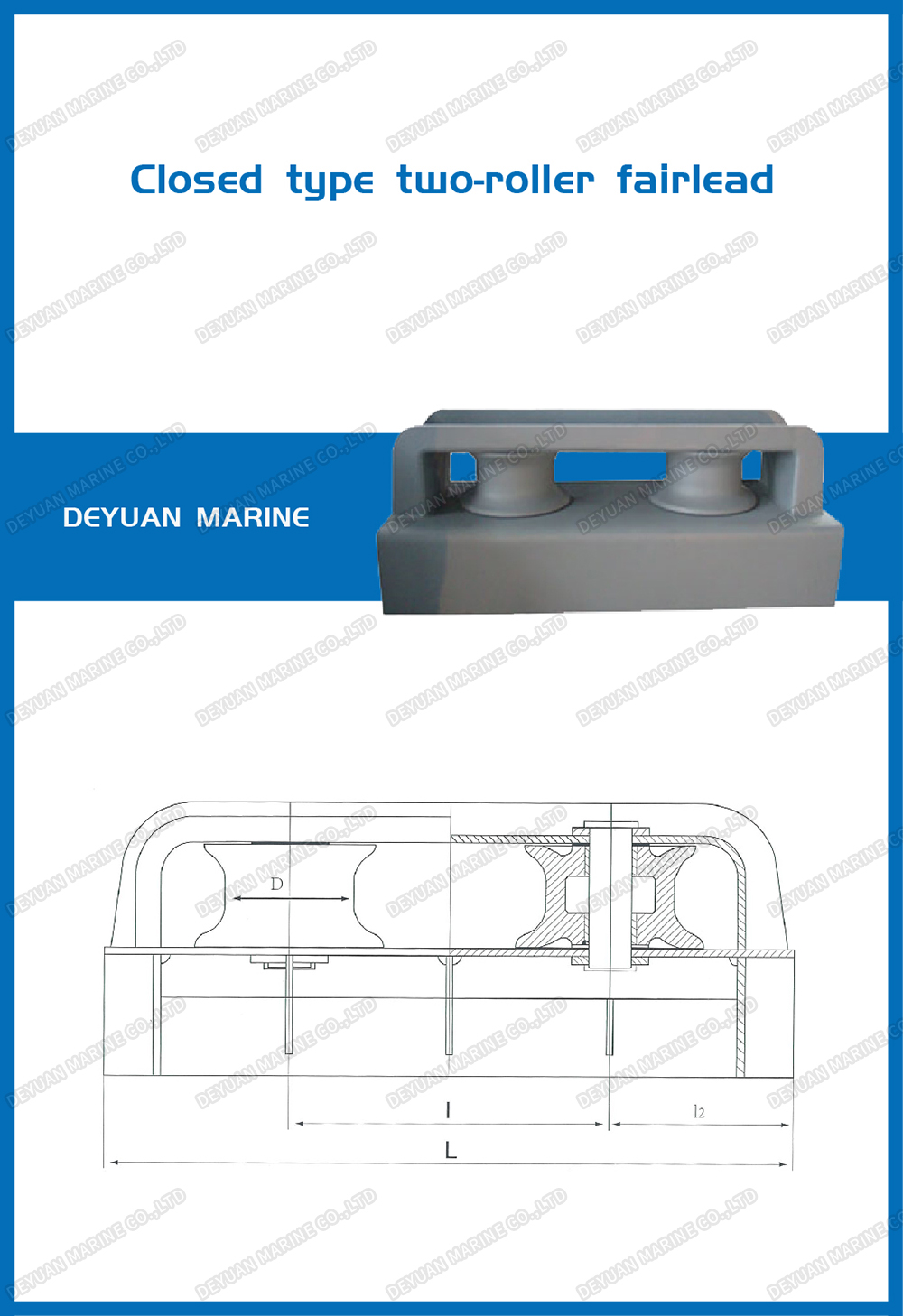

JIS F2014 Fairlead Closed Roller Type --Two-Roller Fairlead

Dia.of roller Dia. of Mooring Line Dimensions(mm)
Wire rope Hemp rope Synthetic
 rope
D L l l2
6X24 6X30 6X37
150 17 17.5 15 45 32 150 1020 420 300
200 22.5 21.5 19.5 55 40 200 1190 530 330
250 24 26 24 65 45 250 1430 640 395
300 30 32.5 28 70 50 300 1610 750 430
350 37.5 39 34.5 75 55 350 1890 860 515
400 41 39 39 85 65 400 2100 970 565
450 44.5 47.5 43 / 80 450 2360 1080 640

JIS F2014 Fairlead Roller in stock
