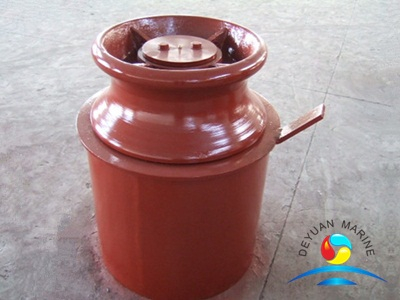

DIN 81907 -1997 Warping Roller Fairlead with Socket Type A and B

Type: Warping Roller Fairlead
Brand: Deyuan Marine
Standard: DIN 81907 -1997
SWL: 10KN-320KN
Material: Cast Iron, Cast Steel.
Service life: 12-15 years
Payment Terms: T/T, L/C, Western Union, Paypal

Product Description

DIN 81907 -1997 Warping Roller Fairlead with Socket Type A and B


This type of  Warping roller with socket Type A was designed as per the standard of DIN81907.


Warping Roller Fairlead casts from the finest quality steel for added durability,our warping roller  was equipped with a weld down base  or socket/pedestal with optional heights and delivered with Bronze-Steel bearings or other bearings upon request.


Rollers on a socket can equipped with a keeper that prevents the mooring line from dropping when tension on the line slackens.


If you are looking for any warping rollers, pls donot hesitate to contact for more details and favorable prices.

Model d1× S1(mm) d2(mm) b(mm) d4(mm)
1 219×12.5 255 60 -
2 273×12.5 310 60 -
3 355×12.5 395 60 -
5 457×12.5 495 60 -
8 559×12.5 595 80 560
12 660×14.2 705 80 660
20 660×17.5 705 100 660
32 813×16 965 100 810
