Brand: DEYUAN MARINE
Name: Open Type Two-roller Fairlead With Pedestal
Roller No.: single roller,two roller ,three roller etc
Roller type: open type or closed type
Standard: DIN,JIS,ISO,GB,CB etc
Certificate: CCS,ABS,LR,BV,DNV,ABS,RINA etc
Delivery time: In stock or depends on order
Orgin:China
Product Description

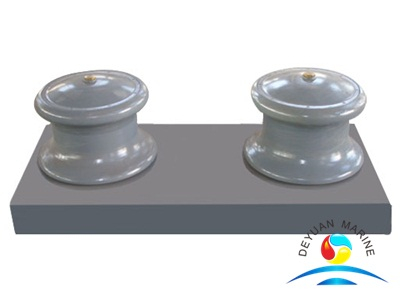

Marine Open Type DIN Two-roller Fairlead With Pedestal
Open type two roller fairlead with stand for ship is a kind of ship mooring equipment, which is widely used in the ship industry.Deyuan Marine open type two roller fairlead with the good operation performance,compact structure and high quality .Win the very high honor from the clients .
If you have any other requirements you can contact us .Thanks you .
Open Type Fairlead data for reference :
| NOMINAL DIA (mm) | D (mm) | L (mm) | 1 (mm) | 1₁ (mm) |
| 150 | 150 | 740 | 420 | 160 |
| 200 | 200 | 930 | 530 | 200 |
| 250 | 250 | 1100 | 640 | 230 |
| 300 | 300 | 1270 | 750 | 260 |
| 350 | 350 | 1440 | 860 | 290 |
| 400 | 400 | 1610 | 970 | 320 |
| 450 | 450 | 1800 | 1080 | 360 |
