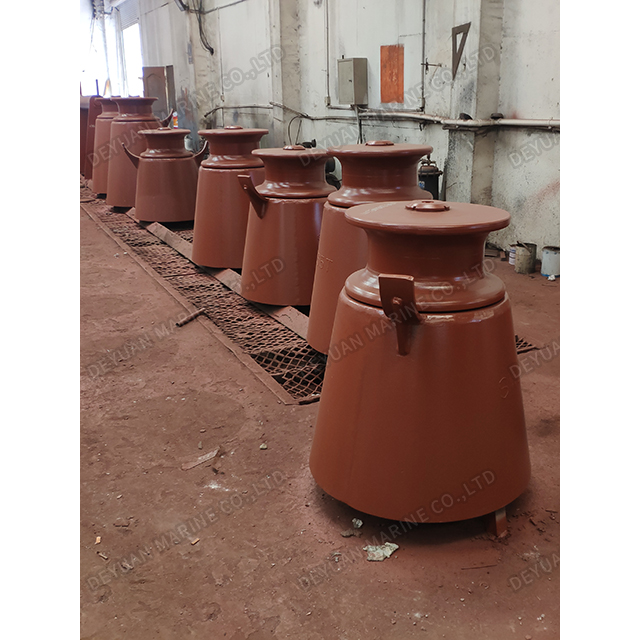

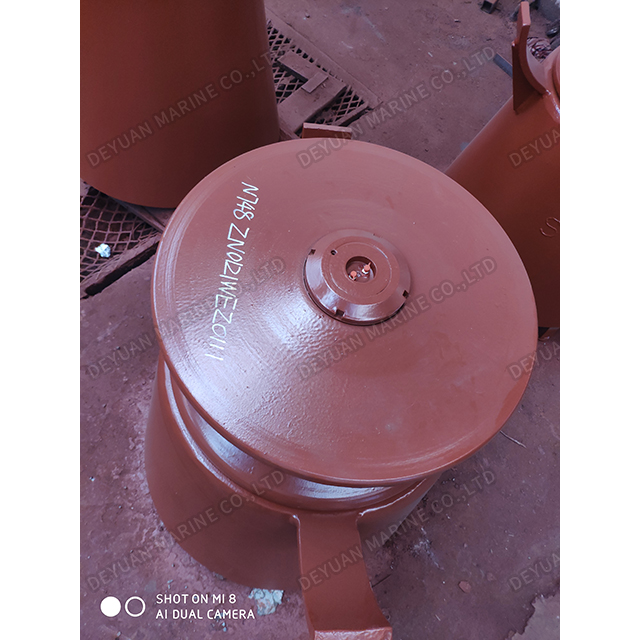

CB/T436-2000 Warping Rollers With Pedestal Type B

Brand:Deyuan Marine
Product Name: warping rollers
Application:for wire,hemp rope,synthetic fiber rope
Roller Dia.:100mm to 450mm
Standard: CB/T436-2000
Socket: Cylindrical & conical
Certificate:CCS ,DNV, ABS ,BV, NK etc
Place of origin: China

Product Description

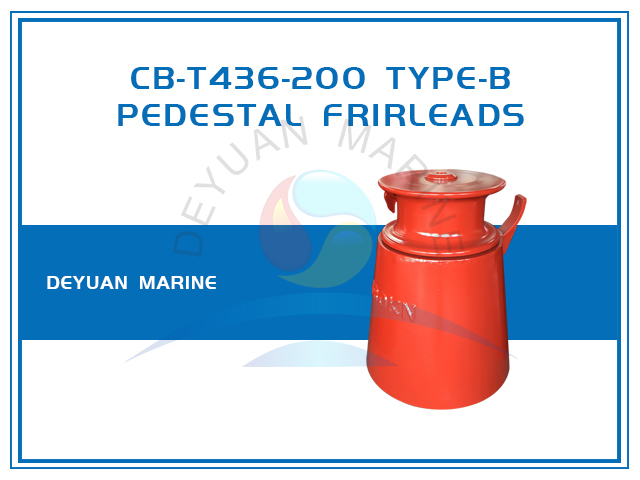

CB/T436-2000 Warping Rollers With Pedestal Type B

Shipside roller fairleads With Pedestal product description

Introduction of Warping Rollers With Pedestal

Warping rollers, also known as Pedestal fairleads or pedestal roller fairlead, is a type of ship's mooring fitting installed on board, warping rollers usually are positioned on bow or stern of the vessel and are used to guide the mooring ropes or cables from the panama chock or fairleads rollers to the ship mooring winches.


Warping rollers are available in different roller diameters and support foundations heights to fit all kind of vessels.

Warping rollers can be delivered on socket or pedestal  with optional heights, cylindrical or conical socket for option, custom-made also accepted.  A keeper that prevents the mooring line from dropping when tension on the line slackens also can be equipped with.

All our warping rollers with socket can be delivered with any class approval certificate  from IACS members, like CCS, ABS, DNV, NK, BV etc.


DEYUAN MARINE offer a full range of roller fairleads,pedestal fairleads  to meet different marine application.

  • ISO13755 steel rollers type A: made of steel casting without upper dust cover.

  • ISO13755 steel rollers type B:  made of steel casting with upper dust cover

  • ISO13755 steel rollers type C:  made of steel plate with dust cover.

  • ISO13776 warping rollers with pedestal

  • JIS F2014 Guide Rollers

  • DIN81906 warping Rollers

  • DIN81907 Warping Rollers with pedestal

  • CB/T3861-2011 Guide Rollers

  • CB/T436-200 Pedestal roller fairlead with socket type A

  • CB/T436-200 warping roller with pedestal type B

Should any of warping rollers be interested of you, pls feel free to drop us an inquiry, DEYUAN MARINE always here at your service

CBT436-2000 Warping Rollers technical parameters

CB/T436-2000 Warping Rollers With Pedestal Type B

Dia. of
roller
Wire rope strength Hemp rope synthetic
fiber rope
Dimensions(mm) weight(kg)
6 X 24 6 X 37 D1 D4 H H1 roller socket
150 16-18 14-16 45 32 240 264 154 30 24.8 129
200 22 20 55 40 310 338 186 30 49.3 178
250 24 24 65 45 380 408 230 35 92 207
300 30 28 70 50 440 472 255 35 127 265
350 38 34 75 55 500 536 271 35 168 332
400 40-42 38-40 85 65 560 600 307 40 252.5 401.3
450 44 42-44 / 80 630 670 316 40 310 452

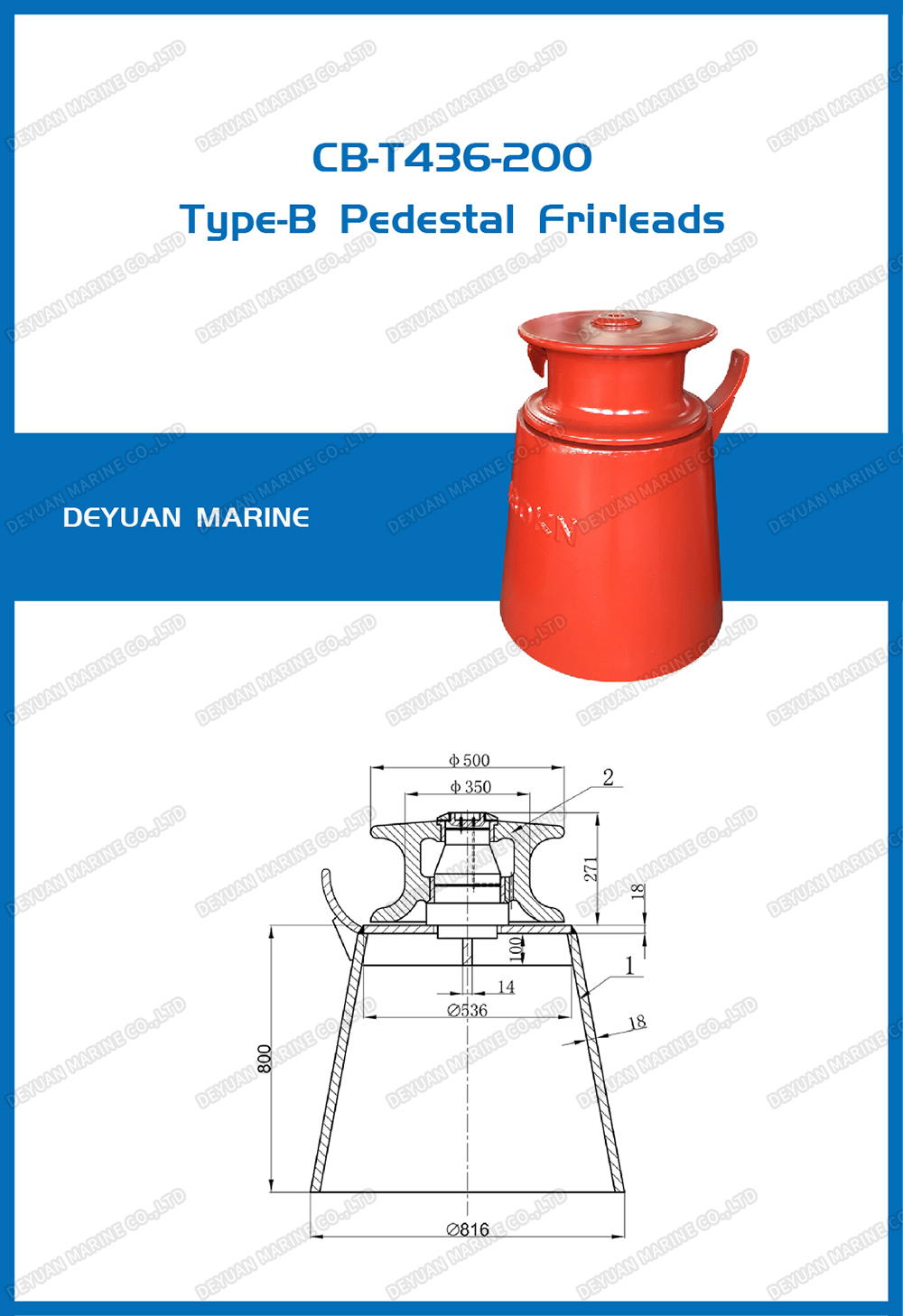

pedestal roller guide With Pedestal
