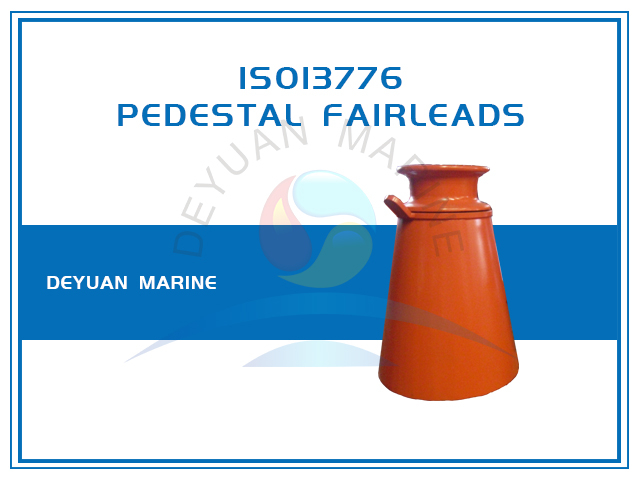

ISO13776 Pedestal Fairleads In Stock

Brand:Deyuan Marine
Product Name: Pedestal fairleads
Material:weldable steel plates Pedestal
Type: A, B, C
Standard: ISO13776
Nominal Dia.:150mm~500mm
Certificate:CCS ,DNV, ABS ,BV, NK etc
Place of origin: China

Product Description

ISO13776 Pedestal Fairleads In Stock

ISO13776 Warping rollers in stock product description

Introduction of ISO13776 Pedestal Fairleads

ISO13776 Pedestal fairleads is a type of warping rollers with socket, warping rollers are positioned on bow or stern of the vessel and are used to guide the mooring ropes or cables from the panama chock or fairleads rollers to the ship mooring winches.

ISO13776 Pedestal fairleads are available in different roller diameters and support foundations heights to fit all kind of vessels.

The pedestal was made from weldable steel plates having a yield point of not less than 235 N/mm2 and can be equipped with a keeper that prevents the mooring line from dropping when tension on the line slackens.

Our ISO13776 pedestal fairleads would be coated externally with an anti-corrosion protective finish.


DEYUAN MARINE offer a full range of roller fairleads,pedestal fairleads  to meet different marine application.

  • ISO13755 steel rollers type A: made of steel casting without upper dust cover.

  • ISO13755 steel rollers type B:  made of steel casting with upper dust cover

  • ISO13755 steel rollers type C:  made of steel plate with dust cover.

  • ISO13776 Pedestal fairleads

  • JIS F2014 Guide Rollers

  • DIN81906 Guide Rollers

  • DIN81907 Warping Rollers with sockets

  • CB/T3861-2011 Guide Rollers

  • CB/T436-200 Pedestal roller fairlead

Should any of Pedestal fairleads be interested of you, pls feel free to drop us a message, DEYUAN MARINE always here at your service

ISO13776 Pedestal roller fairlead technical parametersISO13776 Pedestal Fairleads

Nominal
size
θb= 90°
θ = 0° Weight Dimensions
(kN) (t) (kN) (t) H = 500 H = 1 000 H = 1 500 D1 D2 h h1
150 265 27 186 19 55 115 198 220 230 200 100
200 441 45 314 32 86 169 278 288 300 200 100
250 579 59 412 42 113 210 335 357 370 200 100
300 726 74 510 52 145 256 395 417 430 225 125
350 1040 106 736 75 201 358 552 472 490 225 125
400 1246 127 883 90 255 436 657 540 560 250 150
450 1599 163 1128 115 314 530 791 600 620 250 150
500 1942 198 1373 140 383 636 938 655 680 250 150

Warping rollers with socket in stock
