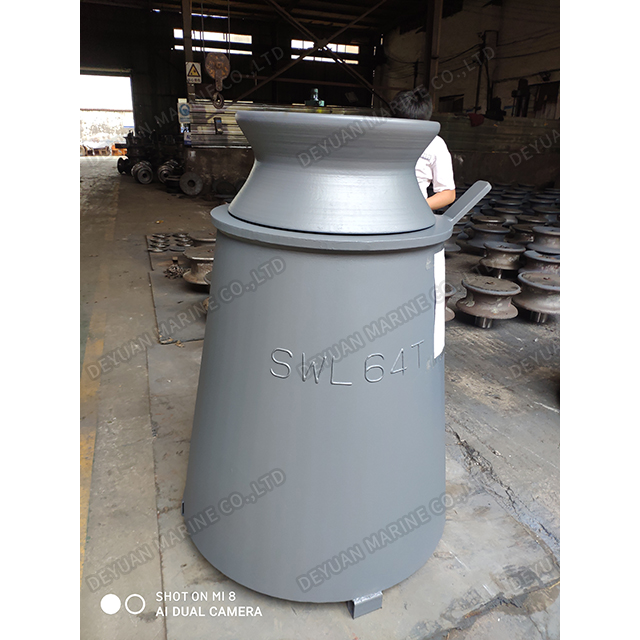

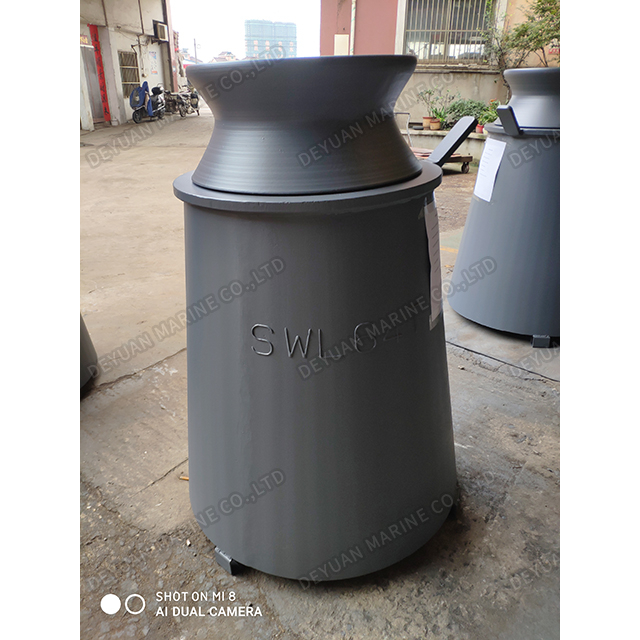

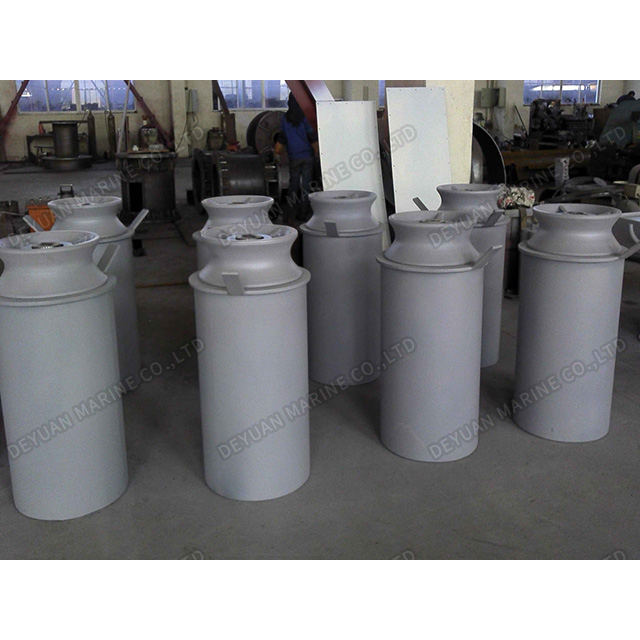

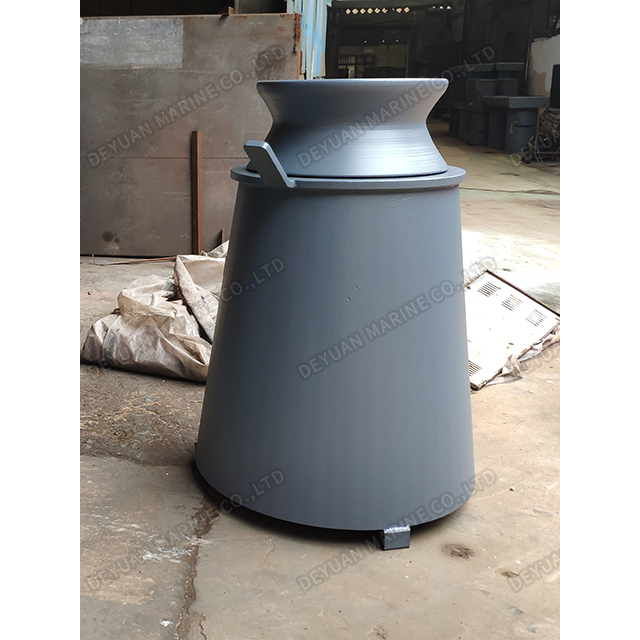

DIN81907 Pedestal Fairleads

Brand:Deyuan Marine
Product Name: Pedestal fairleads
Material:weldable steel plates Pedestal
Type: A
Standard: DIN81907
Pedenstal: Cylindrical & conical
Certificate:CCS ,DNV, ABS ,BV, NK etc
Place of origin: China
Availability:

Product Description

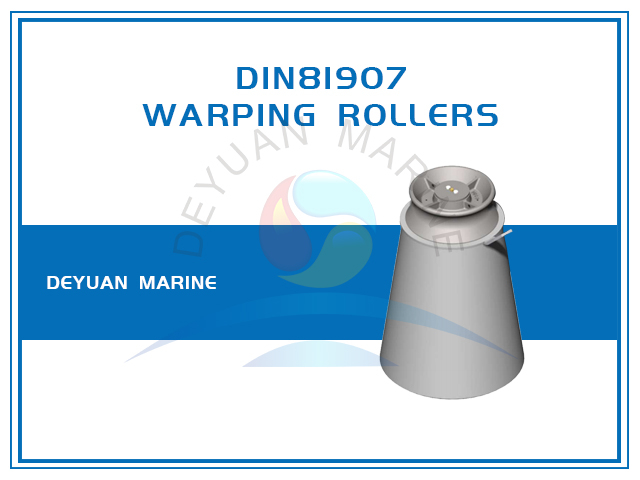

DIN81907 Pedestal Fairleads

DIN81907 Warping rollers with cylindrical pedestal product description

Introduction of DIN81907 Pedestal Fairleads

Pedestal fairleads, also known as warping rollers or pedestal roller fairlead, is a type of ship's mooring fitting installed on board to lead and change the direction of mooring ropes.

Pedestal fairleads are useful, to guide wire on deck towards the place you want the wire to exit the deck. A full range different roller diameters and support foundations heights of Pedestal fairleads were designed to fit all kind of vessels.

DIN81907 Warping rollers with cylindrical pedestal and DIN81907 Warping rollers with conical pedestal are available and certified by different class approval certificate like CCS, ABS, DNV, NK, BV etc.

Our pedestal can be equipped with a keeper that prevents the mooring line from dropping when tension on the line slackens. DIN81907pedestal fairleads would be coated externally with an anti-corrosion protective finish.


DEYUAN MARINE offer a full range of roller fairleads,pedestal fairleads  to meet different marine application.

  • ISO13755 steel rollers type A: made of steel casting without upper dust cover.

  • ISO13755 steel rollers type B:  made of steel casting with upper dust cover

  • ISO13755 steel rollers type C:  made of steel plate with dust cover.

  • ISO13776 warping rollers with socket

  • JIS F2014 Guide Rollers

  • DIN81906 warping Rollers

  • DIN81907 Warping Rollers with pedestal

  • CB/T3861-2011 Guide Rollers

  • CB/T436-200 Pedestal roller fairlead with socket

Should any of Pedestal fairleads be interested of you, pls feel free to drop us an inquiry, DEYUAN MARINE always here at your service

DIN81907 Warping rollers with conical pedestal technical parametersDIN81907 Pedestal Fairleads

Type Weight Pipe
(D X S)
H
2 43 273 * 12.5 200
59 273 * 12.5 400
75 273 * 12.5 600
91 273 * 12.5 800
3 68 355.6 * 12.5  200
89 355.6 * 12.5  400
111 355.6 * 12.5  600
132 355.6 * 12.5  800
5 117 457.2 * 12.5 200
144 457.2 * 12.5 400
172 457.2 * 12.5 600
199 457.2 * 12.5 800
8 209 558.8 * 12.5 200
342 558.8 * 12.5 400
276 558.8 * 12.5 600
310 558.8 * 12.5 800
12 325 660.4 * 14.2 200
370 660.4 * 14.2 400
415 660.4 * 14.2 600
460 660.4 * 14.2 800
20 460 660.4 * 17.5 200
516 660.4 * 17.5 400
571 660.4 * 17.5 600
32 748 812.8 * 16 200
810 812.8 * 16 400
873 812.8 * 16 600

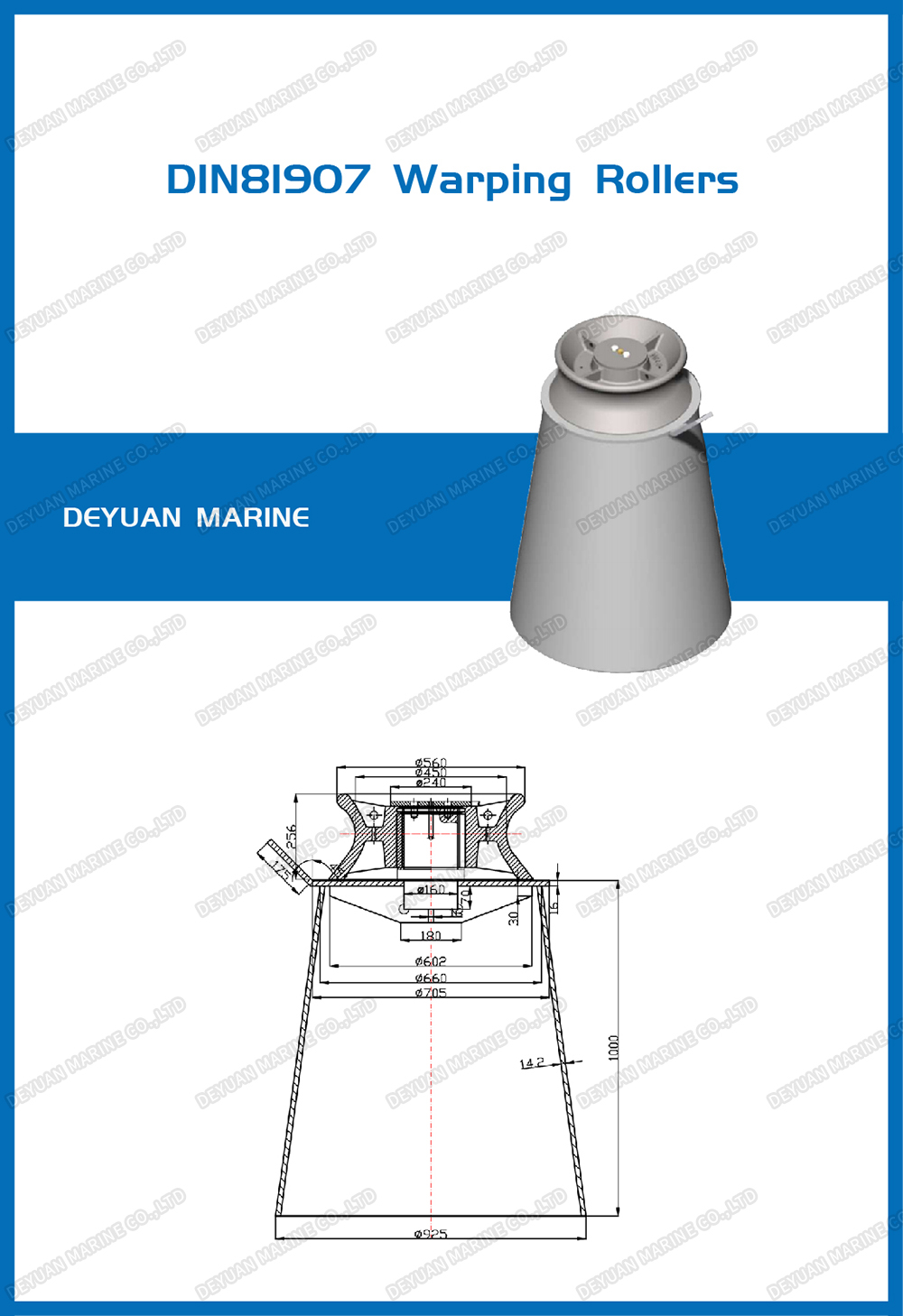

Warping-roller on cylindrical pedestal
