Product Description

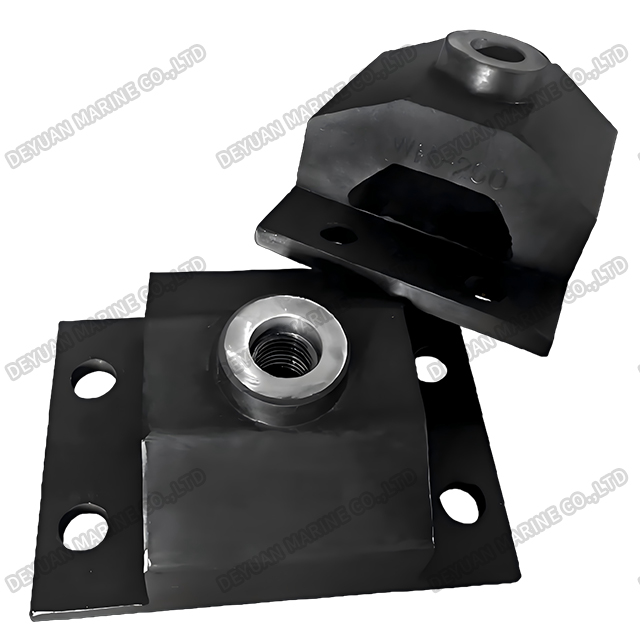

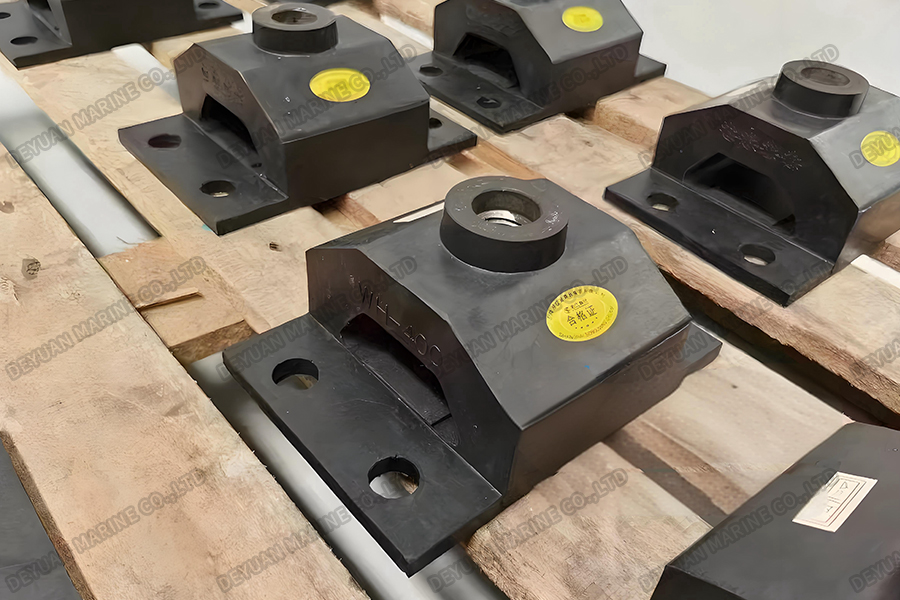

WH Type Rubber Vibration Isolator
Product introduction
The WH Type Rubber Vibration Isolator is a high-performance, versatile elastic support component designed to isolate mechanical vibration and reduce impact noise. Manufactured from premium natural or synthetic rubber through a precision vulcanization process, it features an optimized structural design that effectively absorbs and dissipates vibrational energy. This provides a stable and quiet operating environment for a wide range of machinery and equipment. As one of the most common and universal solutions in industrial applications, the WH Type offers reliable vibration control for diverse operational needs.

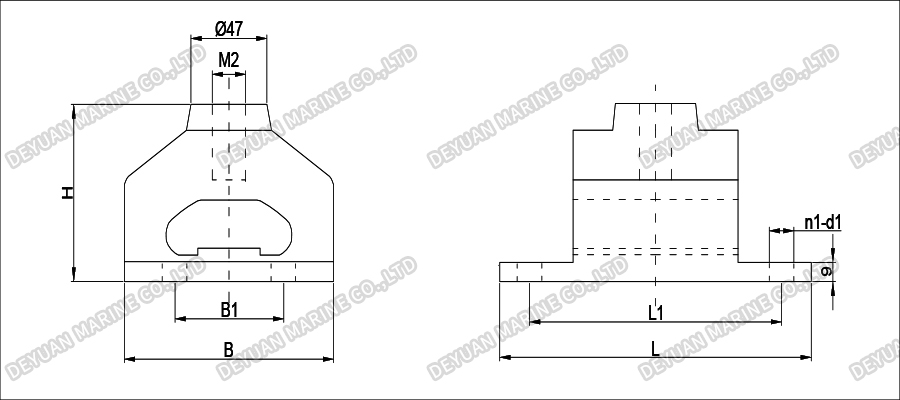

Drawing:
Performance Parameters:
| Model | Rated Load | Rated Static Deformation | Frequency | Damping Ratio | Product Weight |
| daN | mm | Hz | C/Cc | kg | |
| WH-150 | 150 | 12±2 | 6±1 | >0.07 | 2.5 |
| WH-150A | 100 | 12±2 | 6±1 | >0.07 | 2.5 |
| WH-150B | 120 | 12±2 | 6±1 | >0.07 | 2.5 |
| WH-250 | 250 | 12±2 | 6±1 | >0.07 | 2.45 |
| WH-250A | 135 | 12±2 | 6±1 | >0.07 | 2.45 |
| WH-250B | 200 | 12±2 | 6±1 | >0.07 | 2.45 |
| WH-400 | 400 | 12±2 | 6±1 | >0.07 | 2.4 |
| WH-400A | 340 | 12±2 | 6±1 | >0.07 | 2.4 |
| WH-400B | 450 | 12±2 | 6±1 | >0.07 | 2.4 |
Structural Dimensions:
| Model | L | A | B | B1 | H | M | n-d |
| WH-150 | 185 | 150 | 127 | 65 | 80 | 18 | 4-15 |
| WH-150A | |||||||
| WH-150B | |||||||
| WH-250 | 185 | 150 | 127 | 65 | 80 | 22 | 4-17 |
| WH-250A | |||||||
| WH-250B | |||||||
| WH-400 | 185 | 150 | 127 | 65 | 80 | 24 | 4-19 |
| WH-400A | |||||||
| WH-400B |
Core Features and Benefits
*Excellent Vibration Isolation
*Multi-Directional Load Capacity and Isolation
*High Load-Bearing Capacity and Stability
*Corrosion Resistance and Long Service Life
*Easy Installation and Low Maintenance
*Cost-Effective Solution
