Product Description
JF Type Rubber Shock Absorber
Product introduction
The JF Series Rubber Vibration Isolator is a high-performance, engineered component designed to effectively mitigate shock, dampen vibration, and reduce structure-borne noise across a wide range of industrial and commercial applications. Manufactured from premium synthetic rubber, these isolators provide an optimal balance of flexibility, durability, and load-bearing capacity, ensuring enhanced performance and longevity for your machinery and equipment.

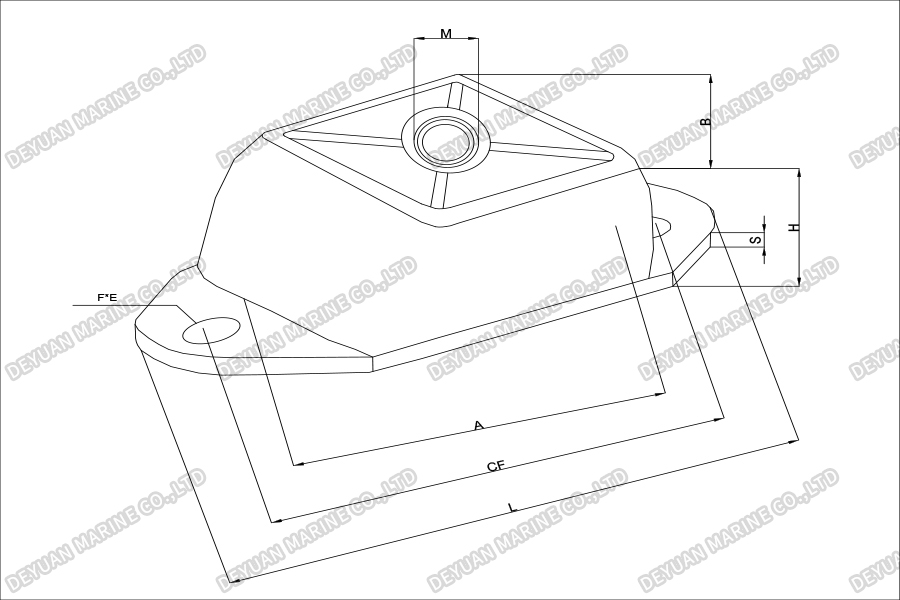

Drawing
Performance parameters
| Model | Rubber hardness （IRHD） | A | H | M | F*E | CF | L | S | Average load (kg/mm) | Maximum load (kg) | Maximum compression(mm) |
| JF-60M12 | 40 | 80 | 38 | M12 | 14*11 | 100 | 120 | 3 | 9 | 36 | 4 |
| JF-60M12 | 50 | 80 | 38 | M12 | 14*11 | 100 | 120 | 3 | 13 | 52 | 4 |
| JF-60M12 | 60 | 80 | 38 | M12 | 14*11 | 100 | 120 | 3 | 16 | 64 | 4 |
| JF-60M12 | 70 | 80 | 38 | M12 | 14*11 | 100 | 120 | 3 | 24 | 96 | 4 |
| JF-60M12 | 35 | 104 | 50 | M16 | 30*13 | 140 | 187 | 4 | 16 | 80 | 5 |
| JF-60M12 | 45 | 104 | 50 | M16 | 30*13 | 140 | 187 | 4 | 24 | 120 | 5 |
| JF-60M12 | 60 | 104 | 50 | M16 | 30*13 | 140 | 187 | 4 | 38 | 190 | 5 |
| JF-60M12 | 70 | 104 | 50 | M16 | 30*13 | 140 | 187 | 4 | 60 | 300 | 5 |
| JF-60M12 | 80 | 104 | 50 | M16 | 30*13 | 140 | 187 | 4 | 95 | 475 | 5 |
Key Features & Benefits
Effective Vibration Damping
Shock Absorption
Noise Reduction
Durable & Weather Resistant
Cost-Effective & Maintenance-Free
Easy Installation
