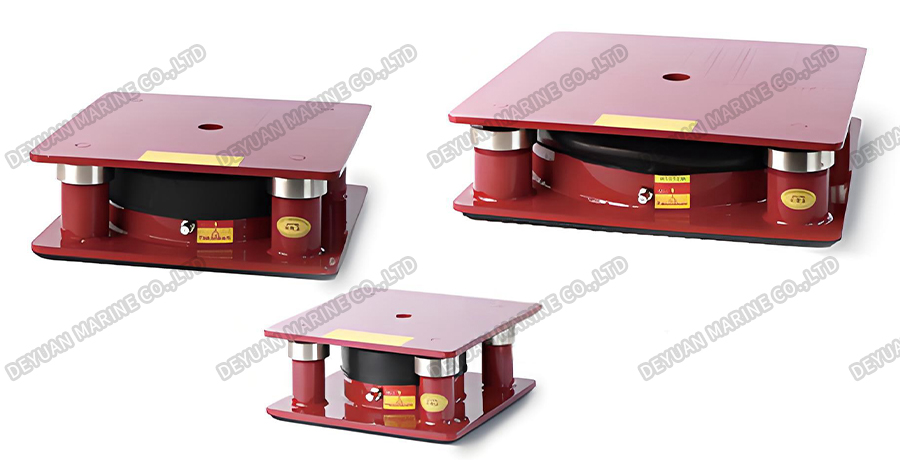

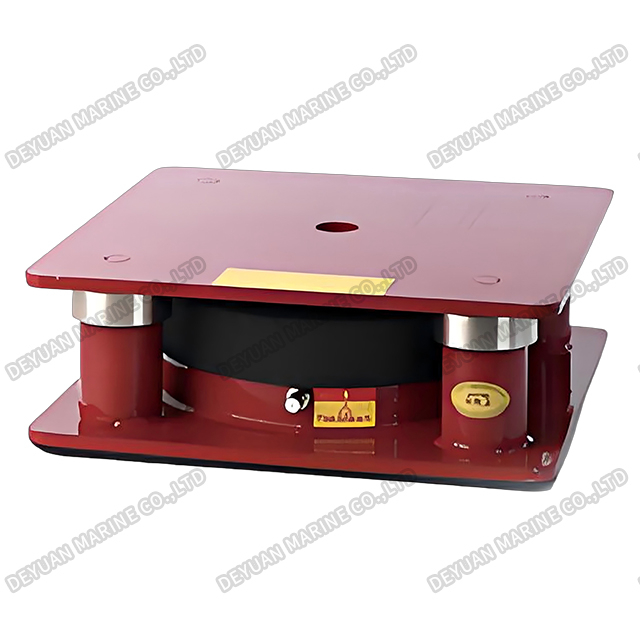

KQJZ-B Type Damping Air Shock Absorber
Product introduction
The KQJZ-B Damped Air Shock Absorber represents a significant advancement in vibration isolation technology, engineered for superior performance in demanding industrial applications. By integrating a precision air spring with an advanced hydraulic damping system, it effectively isolates equipment from disruptive vibrations, shocks, and structure-borne noise.

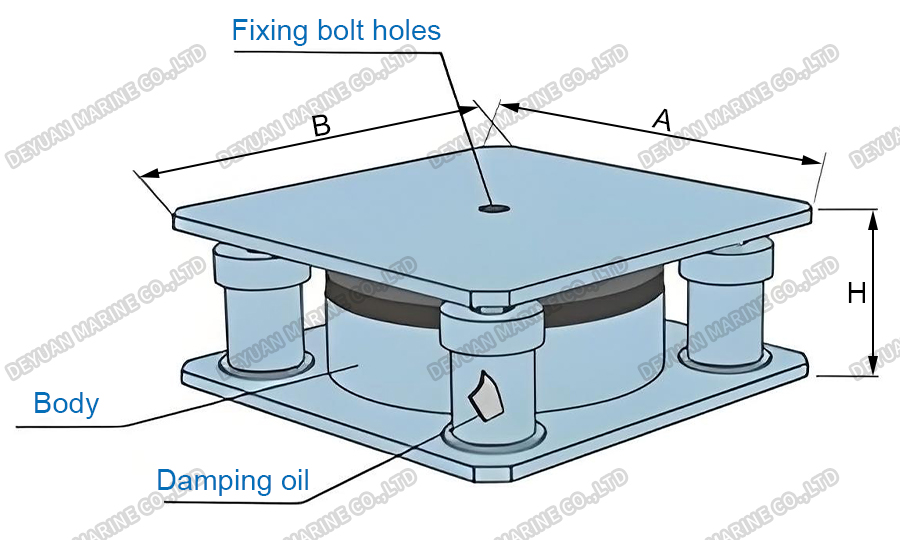

Drawing
Performance parameters
| Model | Load | Product Size | Natural frequency (HZ) | Fixing bolts (CS*L) | |||
| Min | Max | A | B | H | |||
| KQJZ-400-B | 200 | 400 | 235 | 235 | 110 | 3~5 | M12-80L |
| KQJZ-700-B | 400 | 700 | 260 | 260 | 110 | 3~5 | M12-80L |
| KQJZ-900-B | 700 | 900 | 270 | 270 | 110 | 3~5 | M16-130L |
| KQJZ-1200-B | 900 | 1200 | 300 | 300 | 110 | 3~5 | M16-130L |
| KQJZ-1600-B | 1200 | 1600 | 350 | 350 | 110 | 3~5 | M16-130L |
| KQJZ-2000-B | 1600 | 2000 | 390 | 390 | 110 | 3~5 | M16-130L |
| KQJZ-3500-B | 2800 | 3500 | 500 | 500 | 115 | 3~5 | M16-130L |
Features
1. Air-type vibration damping device combined with hydraulic damping cylinder design;
2. Effectively suppresses excessive equipment amplitude, ensuring equipment stability;
3. Suitable for eliminating impact vibration, low natural frequency design, excellent vibration damping effect;
4. Uses CR (Neoprene Rubber) material, excellent weather resistance and long service life;
5. Robotically welded air cushion shell, rubber and shell integrally molded;
6. Good airtightness, avoiding frequent inflation and maintenance, making it more worry-free to use;
7. Oil-proof cap design, oil-resistant and prevents corrosion from general oil stains;
8. Internal damping mechanism effectively avoids resonance;
9.Natural frequency 3Hz~5Hz, damping coefficient 0.12~0.13, operating pressure 4.5 kg/cm^2, meets JISD-4101 air cushion pressure resistance test standard;
Suitable for cutting machines, high-speed punches, injection molding machines, hydraulic presses, blister machines, die-cutting machines, automatic spraying oil machines, printing machines, carton creasing machines, reciprocating air compressors, blanking machines, textile machines, embroidery machines Needle punching machine, quilting machine, embroidery machine, forming machine, cupping machine, CNC machine tool, shearing machine, washing machine, industrial washing machine, three-coordinate detector, length measuring instrument, two-dimensional detector, circle measuring instrument, etc. Vibration reduction of equipment with large natural vibration and vibration isolation and anti-vibration of equipment susceptible to vibration interference;
Other suitability: The shock absorption effect is more demanding, and the swing of type B will be lower than that of type A;
