Product Description

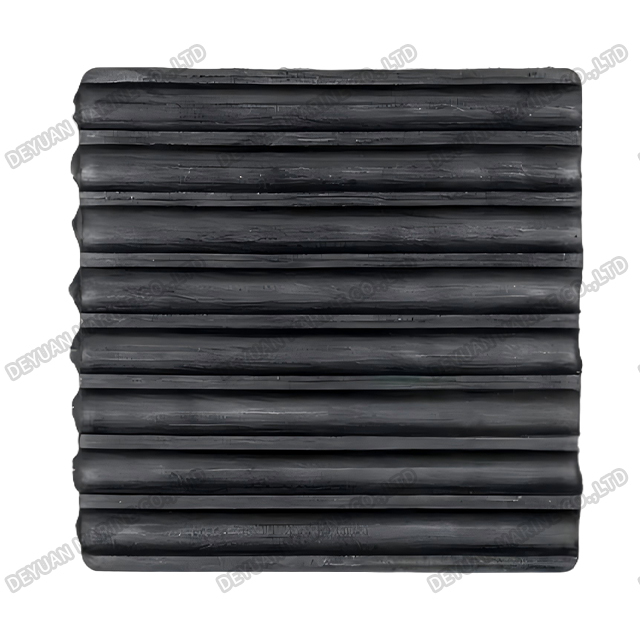

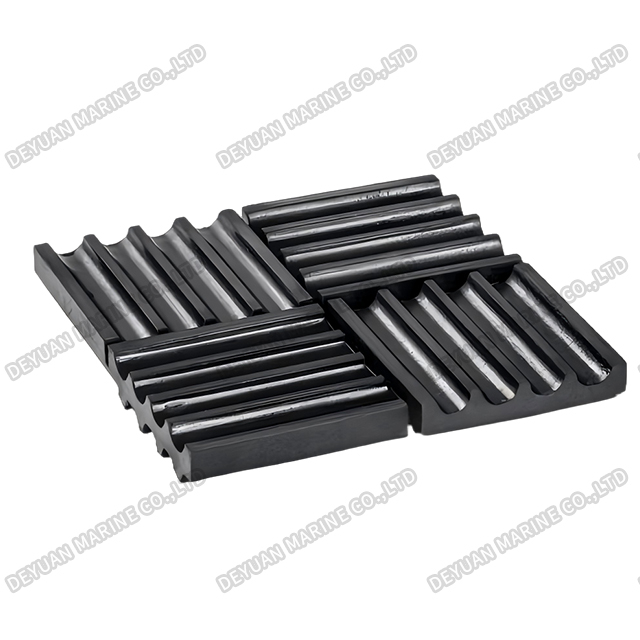

SD/JDF Type Rubber Damping Pad
Product introduction
SD-Type Rubber Vibration Isolation Pads are engineered to provide superior performance in reducing noise, absorbing shock, and minimizing the transmission of vibration across a wide range of industrial and commercial applications. Manufactured from high-quality, durable rubber, these pads offer an optimal balance of flexibility and strength, ensuring long-lasting protection for your machinery and structures.
Characteristics and use of products

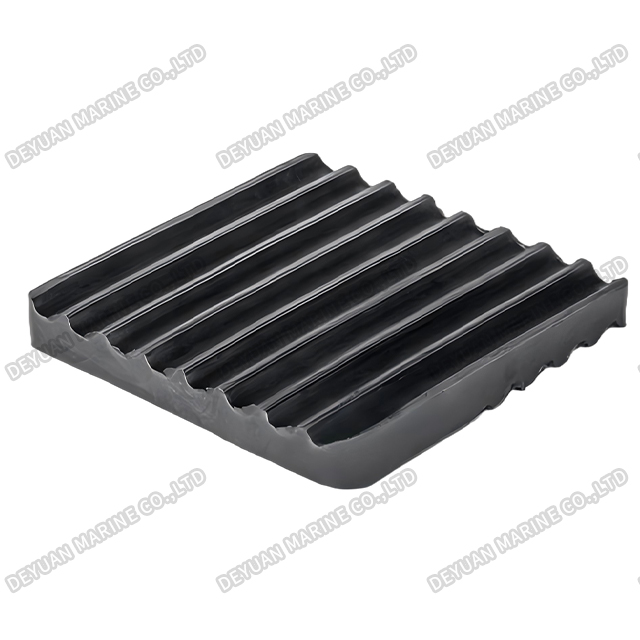

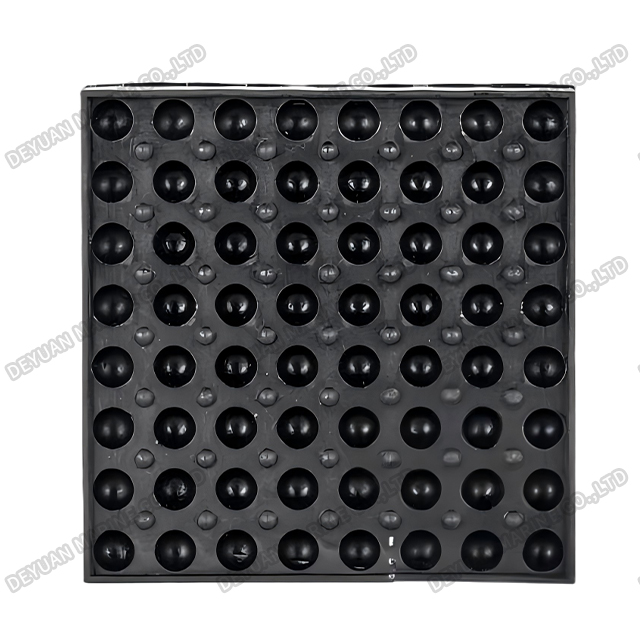

SD type rubber shock pad is made of high quality rubber as the material, there is a circular depression, corrugated hollow shear. In general, shear force, has low natural frequency, simple structure, easy to use. In order to improve the damping effect of the damping pad for two layer, three layer, four layer series. Suitable for water pump, fan, compressor, chiller, diesel and other mechanical equipment of negative damping.
Performance parameters
| Damping pad | Vertica allowable load | Vertical deformation | Vertical natural frequency | Stee plate | |||
| Model | Layer | Lump | KN | F(mm) | HZ | lump | size(mm) |
| SD-41-4 | 1 | 4 | 1.28~3.44 | 2.5~5.0 | 12.9~9.1 | / | 180*180*3 |
| SD-61-4 | 3.52~9.48 | 2.5~5.0 | 12.9~9.1 | ||||
| SD-81-4 | 8.88~23.7 | 2.5~5.0 | 12.9~9.1 | ||||
| SD-42-4 | 2 | 8 | 1.28~3.44 | 4.0~9.0 | 10.3~6.5 | 1 | 180*180*3 |
| SD-62-4 | 3.52~9.48 | 4.0~9.0 | 10.3-6.5 | ||||
| SD-82-4 | 8.88~23.7 | 4.0~9.0 | 10.3-6.5 | ||||
| SD-43-4 | 3 | 12 | 1.28~3.44 | 5.5~13.0 | 8.4~5.4 | 2 | 180*180*3 |
| SD-63-4 | 3.52~9.48 | 5.5~13.0 | 8.4~5.4 | ||||
| SD-83-4 | 8.88~23.7 | 5.5~13.0 | 8.4~5.4 | ||||
| SD-44-4 | 4 | 16 | 1.28~3.44 | 7.0~17.0 | 7.4~4.8 | 3 | 180*180*3 |
| SD-64-4 | 3.52~9.48 | 7.0~17.0 | 7.4~4.8 | ||||
| SD-84-4 | 8.88~23.7 | 7.0~17.0 | 7.4~4.8 | ||||
| SD-45-4 | 5 | 20 | 1.28~3.44 | 8.5~21.0 | 7.4~4.1 | 4 | 180*180*3 |
| SD-65-4 | 3.52~9.48 | 8.5~21.0 | 7.4~4.1 | ||||
| SD-85-4 | 8.88~23.7 | 8.5~21.0 | 7.4~4.1 | ||||
