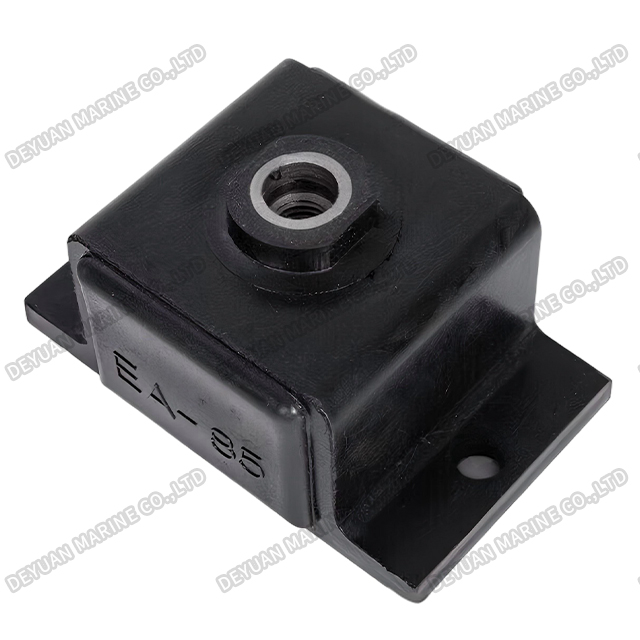

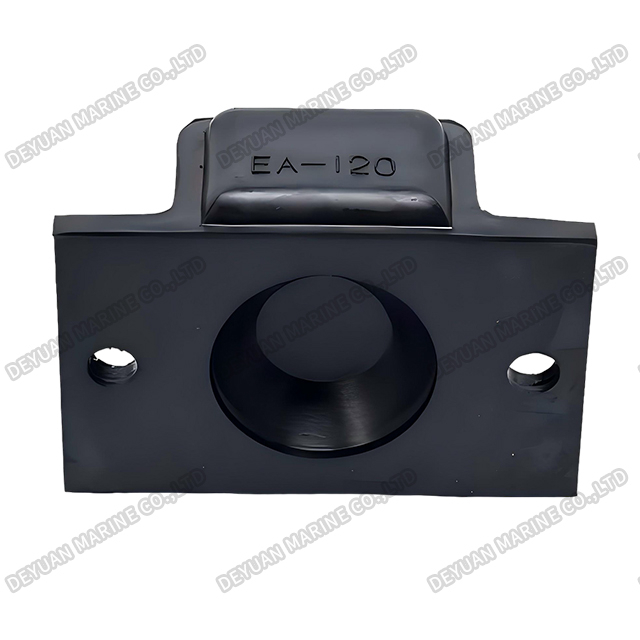

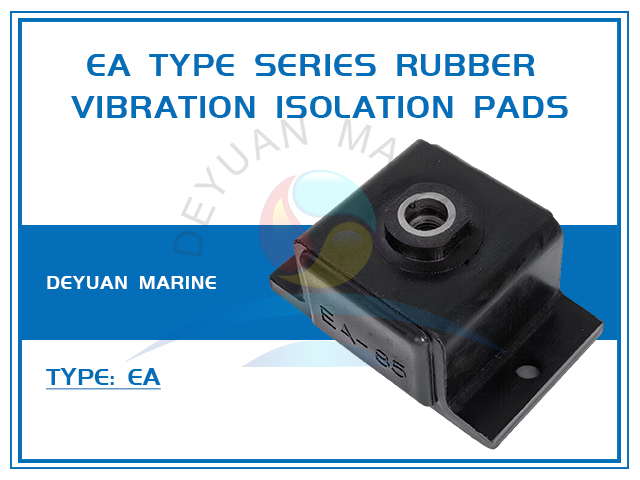

EA Type Series Rubber Vibration Isolation Pads
Product introduction
The EA Series Rubber Vibration Isolation Pads represent a premium solution engineered for superior vibration control, shock absorption, and noise reduction in demanding industrial and commercial applications. Crafted with advanced elastomer technology, these pads are designed to protect sensitive machinery, enhance operational stability, and prolong equipment service life by effectively isolating structural vibrations and impacts.

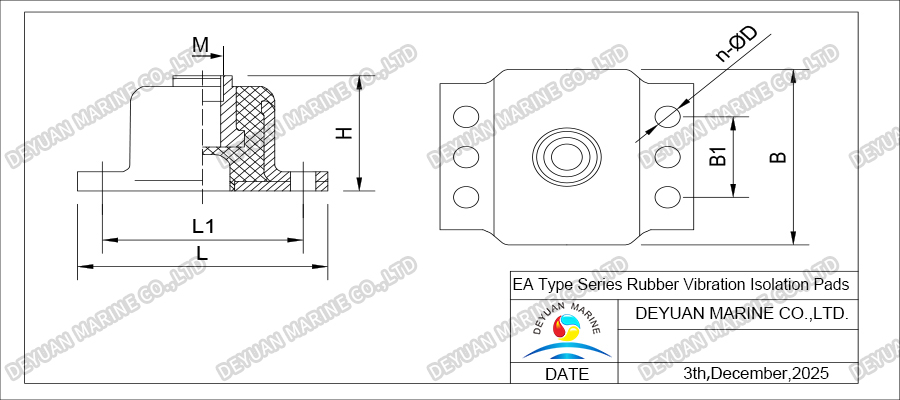

Drawing
Dimensions and Installation
| Product Model | M | L | L₁ | H | B | B₁ | n | φD | ||||
| EA25 | M8 | 70 | 54 | 40 | 48 | 2 | 7 | |||||
| EA40 | M10 | 85 | 68 | 46 | 63 | 2 | 9 | |||||
| EA60 | M12 | 100 | 80 | 50 | 73 | 2 | 9 | |||||
| EA85 | M14 | 120 | 100 | 60 | 80 | 2 | 11 | |||||
| EA120 | M16 | 140 | 112 | 65 | 101 | 2 | 13 | |||||
| EA160 | M18 | 145 | 115 | 60 | 108 | 2 | 13 | |||||
| EA220 | M22 | 150 | 120 | 60 | 118 | 2 | 15 | |||||
| EA300 | M24 | 155 | 125 | 65 | 125 | 60 | 4 | 15 | ||||
| EA400 | M27 | 175 | 140 | 65 | 130 | 65 | 4 | 17 | ||||
Technical Parameters
| Product Model | Rated Load(kg) | Static Deformation under Rated Load in the Z-direction(mm) | Product Weight (kg) | |||||||||
| Z | Y | X | ||||||||||
| EA25 | 25 | 25 | 10 | 1.0±0.4 | 0.22 | |||||||
| EA40 | 40 | 40 | 15 | 1.2±0.4 | 0.40 | |||||||
| EA60 | 60 | 60 | 25 | 1.2±0.4 | 0.70 | |||||||
| EA85 | 85 | 85 | 35 | 1.0±0.4 | 1.10 | |||||||
| EA120 | 120 | 110 | 50 | 1.5±0.4 | 1.50 | |||||||
| EA160 | 160 | 150 | 70 | 1.0±0.4 | 1.80 | |||||||
| EA220 | 220 | 190 | 80 | 1.1±0.4 | 2.20 | |||||||
| EA300 | 300 | 210 | 90 | 1.1±0.4 | 2.70 | |||||||
| EA400 | 400 | 260 | 100 | 1.4±0.4 | 3.20 | |||||||
Performance Characteristics and Applications
Widely used in various main units, auxiliary units, instruments, power machinery and other equipment, providing excellent isolation from vibration and impact, while also reducing transmitted noise in the structure.
