6JX Series Shock Absorbers
Product introduction
The 6JX Series represents a high-performance line of industrial shock absorbers and vibration dampers designed for precision motion control and energy dissipation in dynamic mechanical systems. Engineered to mitigate impact forces, reduce oscillations, and dampen harmful vibrations, these devices are essential for protecting equipment, improving positioning accuracy, and enhancing the longevity of machinery in automation, material handling, and high-cycle applications.

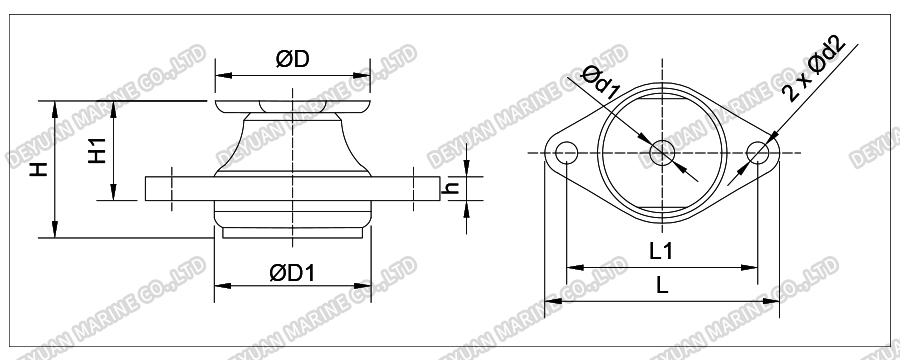

Drawing
Shape, installation dimensions and weight {Unit：(mm)}
| Product Model | L | L1 | H | H1 | h | D | D1 | d1 | d2 | |
| 6JX-25 | 126 | 100 | 60 | 46 | 8 | 70 | 70 | 10 | 12 | |
| 6JX-45 | 150 | 120 | 66 | 51 | 10 | 76 | 76 | 14 | 14 | |
| 6JX-70 | 168 | 136 | 68 | 53 | 12 | 82 | 82 | 16 | 16 | |
| 6JX-100 | 168 | 136 | 70 | 55 | 12 | 82 | 82 | 16 | 16 | |
| 6JX-120 | 168 | 136 | 70 | 55 | 12 | 82 | 82 | 16 | 16 | |
| 6JX-200 | 172 | 140 | 80 | 58 | 13 | 88 | 88 | 19 | 16 | |
| 6JX-200N | 172 | 140 | 80 | 56 | 13 | 88 | 88 | 19 | 16 | |
| 6JX-200NA(1) | 172 | 140 | 80 | 58 | 13 | 88 | 88 | 19 | 16 | |
| 6JX-200NA(2) | 172 | 140 | 80 | 56 | 13 | 88 | 88 | 19 | 16 | |
| 6JX-300 | 172 | 140 | 80 | 58 | 13 | 88 | 88 | 19 | 16 | |
| 6JX-400 | 248 | 210 | 108 | 82 | 18 | 140 | 165 | 26 | 20 | |
| 6JX-600 | 260 | 220 | 112 | 79 | 20 | 150 | 170 | 30 | 22 | |
| 6JX-900 | 290 | 244 | 115 | 79 | 22 | 165 | 190 | 33 | 24 | |
| 6JX-1200 | 340 | 288 | 135 | 95 | 26 | 193 | 224 | 36 | 26 | |
| 6JX-1500 | 340 | 288 | 135 | 95 | 26 | 193 | 224 | 36 | 26 | |
Technical Parameters
| Product Model | Rated load(N) | Static deformation under rated load(mm) | Natural frequency under rated load(Hz) | Weight(kg) | |
| Natural rubber | Nier rubber | ||||
| 6JX-25 | 250 | 7±1.5 | 7±1.5 | 8±1.5 | 1.00 |
| 6JX-45 | 450 | 7±1.5 | 7±1.5 | 8±1.5 | 1.05 |
| 6JX-70 | 700 | 8±1.5 | 7±1.5 | 8±1.5 | 1.26 |
| 6JX-100 | 1000 | 8±1.5 | 7±1.5 | 8±1.5 | 1.36 |
| 6JX-120 | 1200 | 8±1.5 | 7±1.5 | 8±1.5 | 1.36 |
| 6JX-200 | 2000 | 8±1.5 | 7±1.5 | 8±1.5 | 1.90 |
| 6JX-200N | 2000 | 8±1.5 | 7±1.0 | 8±1.0 | 2.00 |
| 6JX-200NA(1) | 2500 | 8±1.5 | 7±1.5 | 8±1.5 | 1.90 |
| 6JX-200NA(2) | 3000 | 8±1.5 | 7±1.0 | 8±1.0 | 2.00 |
| 6JX-300 | 3000 | 8±1.5 | 7±1.5 | 8±1.5 | 1.90 |
| 6JX-400 | 4000 | 14±2.0 | 7±1.5 | 8±1.5 | 7.30 |
| 6JX-600 | 6000 | 16±2.0 | 7±1.5 | 8±1.5 | 9.00 |
| 6JX-900 | 9000 | 18±3.0 | 6±1.5 | 8±1.5 | 12.5 |
| 6JX-1200 | 12000 | 22±4.0 | 6±1.5 | 8±1.5 | 21.0 |
| 6JX-1500 | 1500 | 17±2.0 | 6±1.5 | 8±1.5 | 21.0 |
Performance Characteristics and Applications
1. This type of shock absorber adopts a closed structure, ensuring the connection between the shock absorber and the equipment/foundation even if the rubber body is damaged or broken, thus guaranteeing the normal operation of the equipment.
2. It has a low natural frequency and exhibits constant frequency characteristics, with minimal change in natural frequency within the range of 1/2 rated load to rated load.
3. The load-deformation characteristic is non-linear and gradually hardens.
4. It has a wide load range, large deformation, and good impact resistance.
5. It is generally used under axial (Z-direction) load conditions.
