Product Description

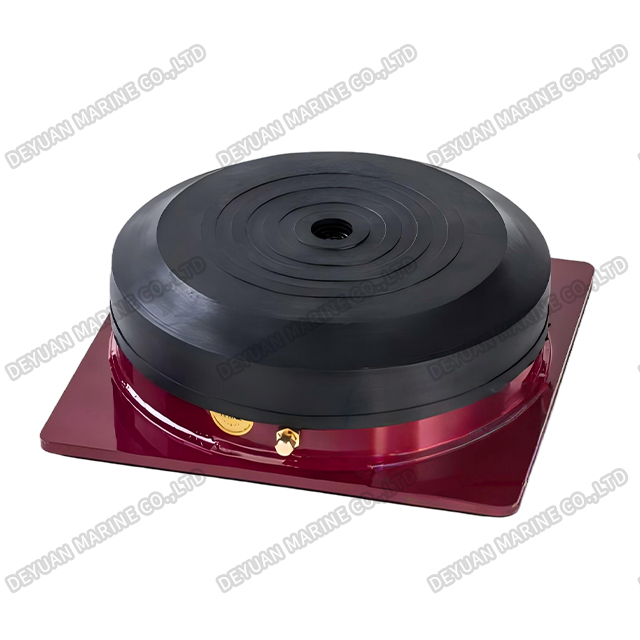

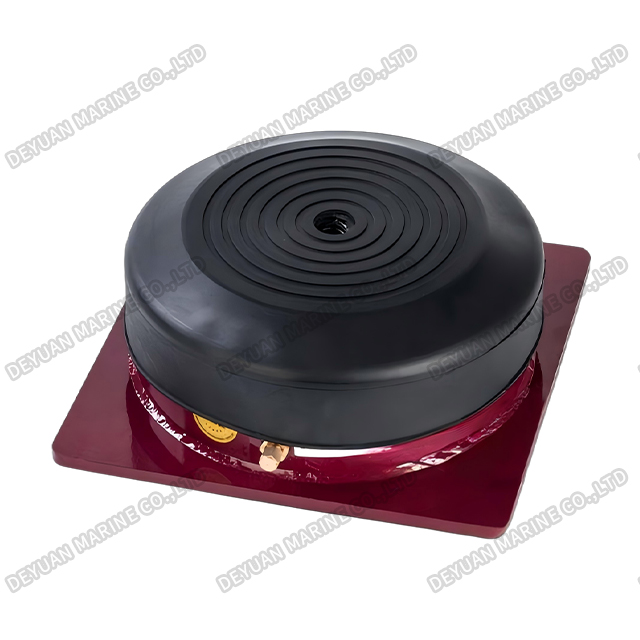

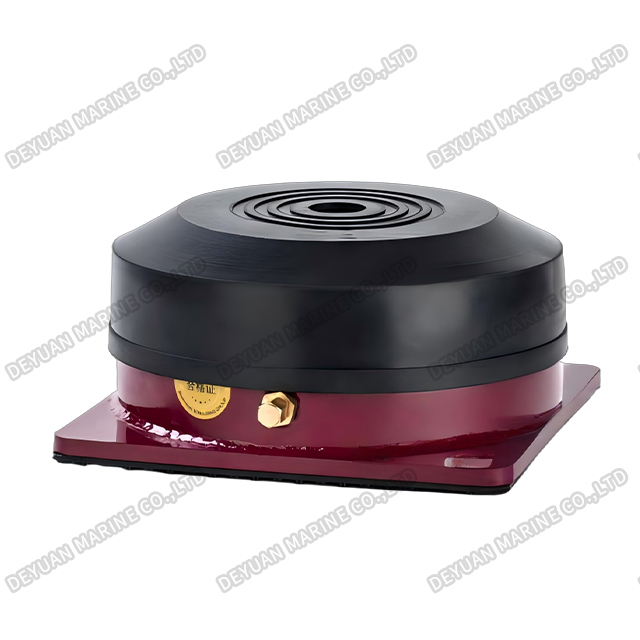

KQJZ-A Type Rubber Air Spring
Product introduction:
KQJZ-A punch air shock absorber, is the perfect vibration absorption of punch, punch after the installation and use are numerous high quality and satisfactory effect of air shock absorber.
Features:

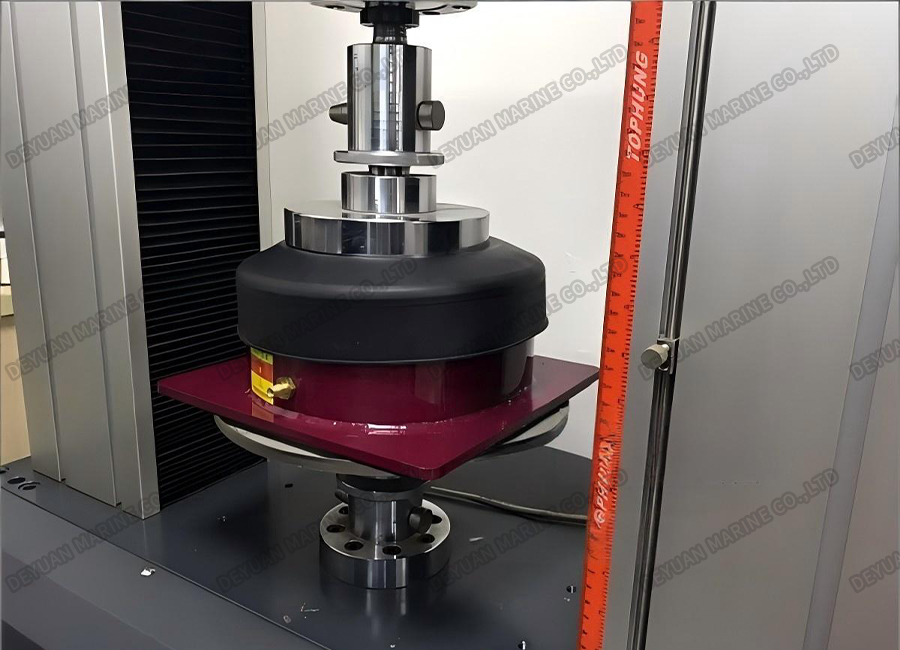

*Air pressure anti vibration device conforms to JISD-4101 air cushion pressure test standard.
*The natural frequency is 3Hz~5Hz, and the maximum use pressure is 4.5 Kg/cm^2.
*Multi layer antirust paint is used in the body.

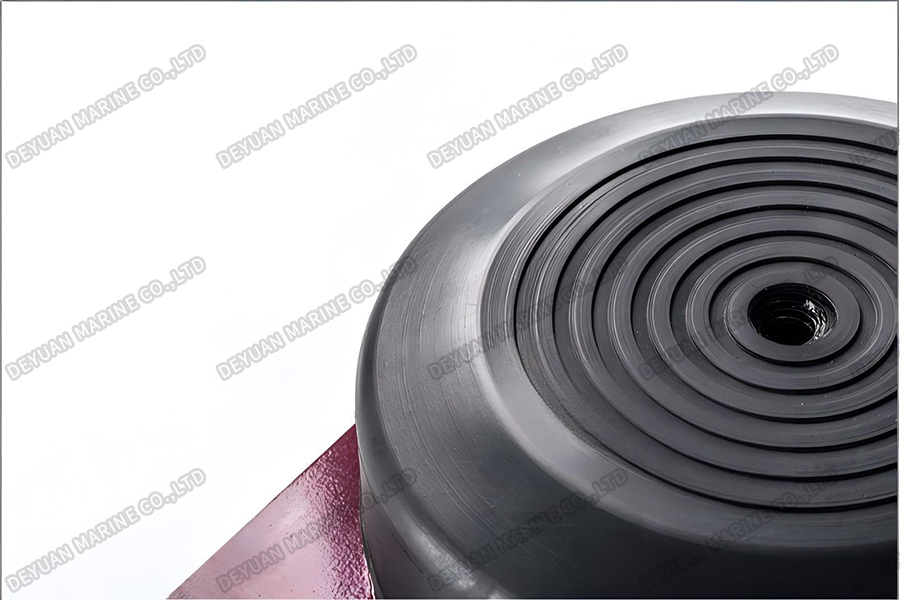

*The body adopts Neoprene Rubber, which has good air tightness in one.
*The anti vibration effect is very high, and the efficiency of the general equipment.
*The range of load is 0~3500Kg.
*Oil proof cap can be added to prevent oil corrosion.
*Use: chiller, punch, pump group.

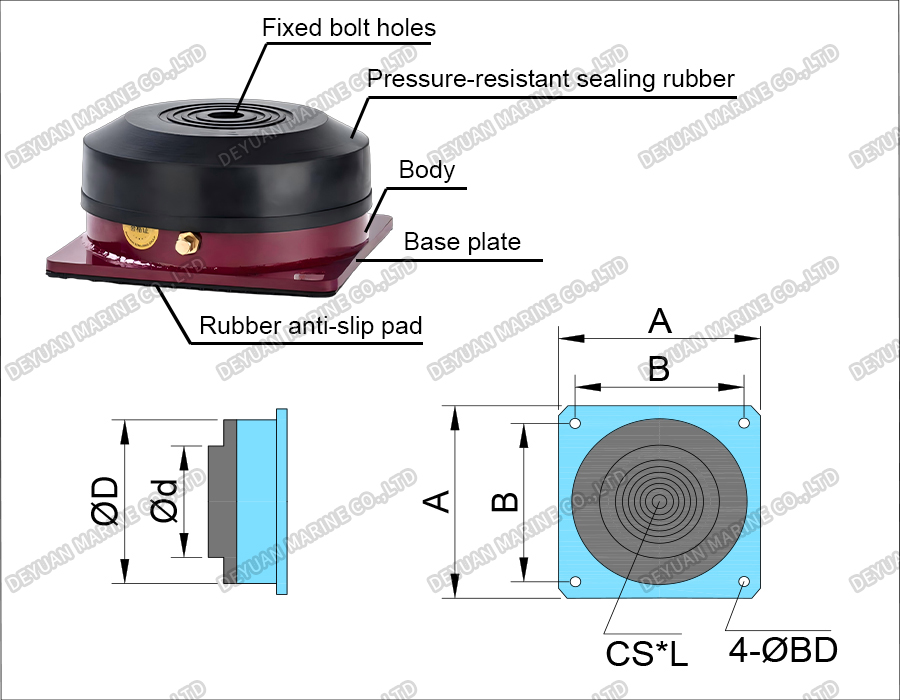

Drawing:
Performance parameters:
| Model | Product Size | Load | hig | Weight | ||||||
| A | B | 4-BD | CS*L | D | d | Min | Max | (H) | (kg) | |
| KQJZ-100-A | 125 | 100 | 12 | M12-80L | 100 | 50 | 50 | 100 | 100 | 2kg |
| KQJZ-200-A | 125 | 100 | 12 | M12-80L | 100 | 60 | 100 | 200 | 100 | 2kg |
| KQJZ-400-A | 160 | 125 | 12 | M12-80L | 138 | 90 | 200 | 400 | 100 | 4kg |
| KQJZ-700-A | 200 | 160 | 12 | M12-80L | 160 | 115 | 400 | 700 | 100 | 6kg |
| KQJZ-900-A | 235 | 180 | 14 | M16-130L | 192 | 132 | 700 | 900 | 100 | 8kg |
| KQJZ-1200-A | 250 | 200 | 14 | M16-130L | 218 | 150 | 900 | 1200 | 100 | 10kg |
| KQJZ-1600-A | 300 | 250 | 14 | M16-130L | 272 | 200 | 1200 | 1600 | 100 | 15kg |
| KQJZ-2000-A | 350 | 300 | 14 | M16-130L | 324 | 252 | 1600 | 2000 | 100 | 20kg |
| KQJZ-3500-A | 450 | 400 | 18 | M16-130L | 412 | 300 | 2000 | 3500 | 104 | 35kg |
