Product Description
SJNG Austria Oil Shock Absorber Rubber Hose
Product introduction
The SJNG oil-resistant rubber expansion joint is a critical component for ensuring the reliability and longevity of high-pressure hydraulic systems. Designed for harsh environments, its structure withstands the unique challenges posed by hydraulic oil, pulsating pressure, and intense vibration.

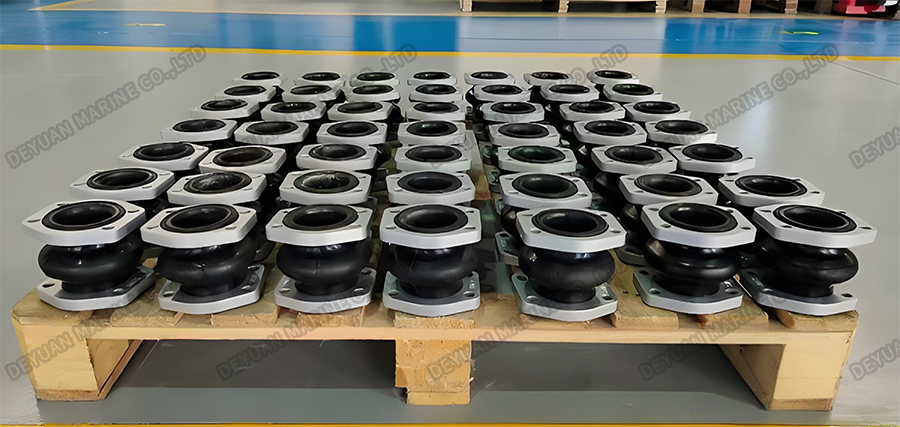

The SJNG oil-resistant rubber expansion joint is primarily used in hydraulic systems of large die-casting machines, injection molding machines, filter presses, tunnel boring machines, and shield machines. Operating pressures are less than 1 kg, and this product is in stock.

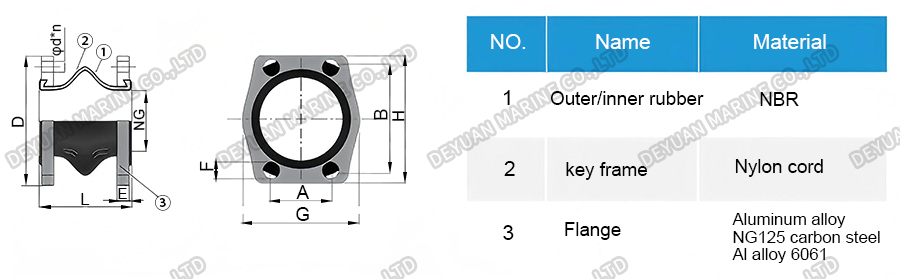

Drawing
Performance Parameter Table
| description | order number | size | lnner | Screw hole spacing | Sealing surface outer diameter | Flange thickness | Screw hole diameter | Flange height | Flange length | Length | wieght | |
| SAE | NG | A(mm) | B(mm) | D(mm) | E(mm) | F(mm) | G(mm) | H(mm) | L(mm) | (KG) | ||
| K16S-25 | SDKSS025 | 1 | 25 | 26.2 | 52.4 | 43 | 11 | 11 | 59 | 70 | 65 | 0.4 |
| K16S-32 | SDKSS032 | 1-1/4 | 32 | 30.2 | 58.7 | 50 | 11 | 13 | 73 | 81 | 65 | 0.5 |
| K16S-40 | SDKSS040 | 1-12 | 40 | 35.7 | 70.7 | 62 | 13 | 13 | 83 | 95 | 100 | 0.8 |
| K16S-S0 | SDKSS050 | 2 | 50 | 42.9 | 77.8 | 72 | 13 | 13 | 97 | 103 | 100 | 1 |
| K16S-63 | SDKSS063 | 2-12 | 63 | 50.8 | 89 | 87 | 14 | 13 | 109 | 115 | 100 | 1.2 |
| K16S-80 | SDKSS080 | 3 | 80 | 62 | 106.4 | 104 | 14 | 17 | 131 | 136 | 100 | 1.8 |
| K16S-90 | SDKSS090 | 3-1/2 | 80 | 70 | 120.6 | 104 | 14 | 17 | 140 | 152 | 100 | 1.9 |
| K16S-100 | SDKSS100 | 4 | 100 | 77.8 | 130.2 | 130 | 16 | 17 | 152 | 162 | 100 | 2.5 |
| K16S-125 | SDKSS125 | 5 | 125 | 92 | 152.4 | 155 | 16 | 17 | 165 | 184 | 130 | 3 |
