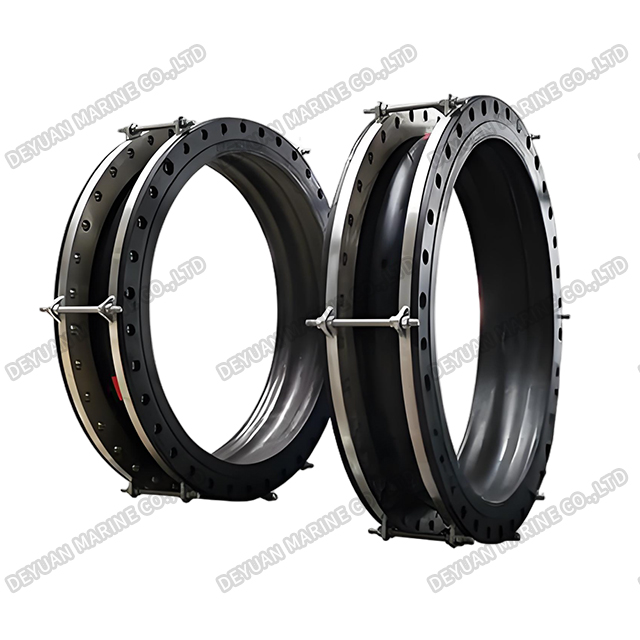

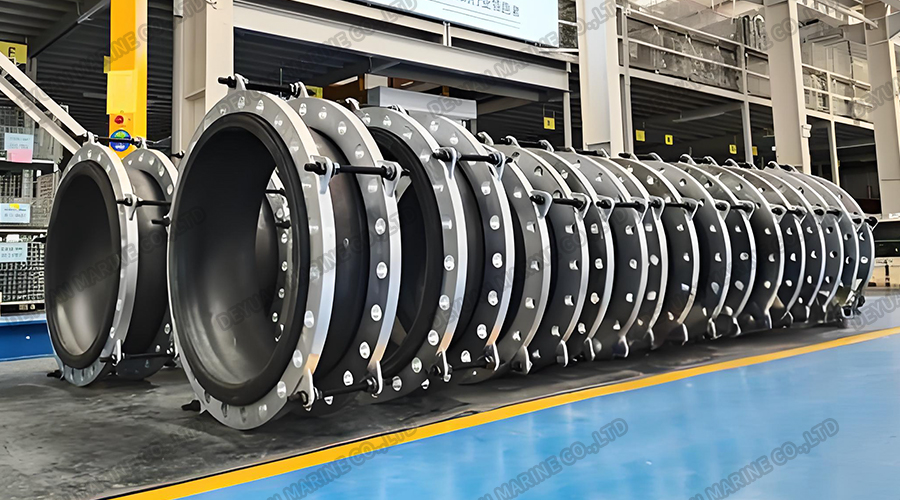

RE Type Devulcanized Rubber Expansion Joint
Product introduction:
The RE type desulfurization rubber expansion joint is mainly used at the entrance and exit of the slurry circulation pump of the desulfurization absorption tower,It serves to reduce vibration and noise. it uses Japanese Mitsui 4045 raw materials, 100% raw rubber, no reclaimed rubber, false one pays ten, and provides safety guarantee for thermal power generation.

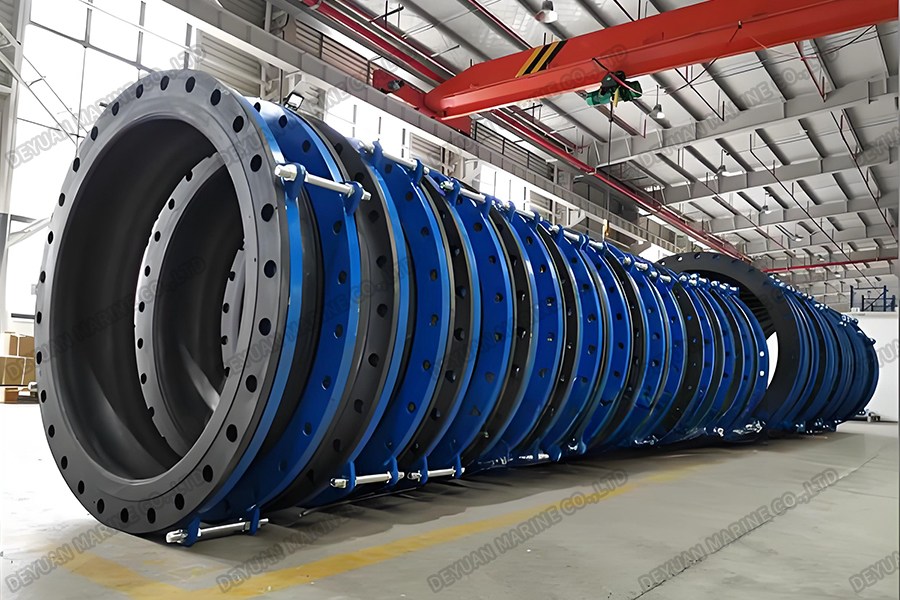

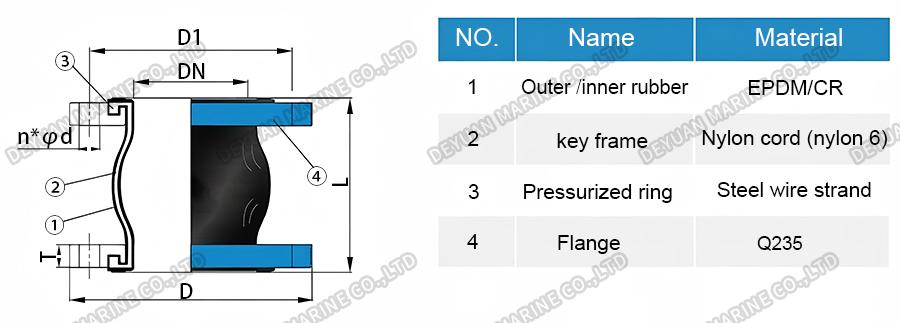

Drawing:
Performance Parameter Table:
| Nominal diameter | Length | Outer diameter | Flange thickness | Number of bolts | Bolt hole diameter | central circle diameter | Stretch | Compression | Displacemen | Deflection | Limit | |
| mm | inch | L (mm） | D (mm) | T (mm) | n (pcs) | d (mm) | D1 (mm) | (mm) | (mm) | (mm) | ° | Quantity |
| 25 | 1 | 95 | 115 | 14 | 4 | 14 | 85 | 6 | 9 | 9 | 15° | / |
| 32 | 1-1/4 | 95 | 135 | 15 | 4 | 18 | 100 | 6 | 9 | 9 | 15° | / |
| 40 | 1-1/2 | 95 | 145 | 15 | 4 | 18 | 110 | 6 | 10 | 9 | 15° | / |
| 50 | 2 | 105 | 160 | 15 | 4 | 18 | 125 | 7 | 10 | 10 | 15° | / |
| 65 | 2-1/2 | 115 | 180 | 15 | 4 | 18 | 145 | 7 | 13 | 11 | 15° | / |
| 80 | 3 | 135 | 195 | 17 | 8 | 18 | 160 | 8 | 15 | 12 | 15° | / |
| 100 | 4 | 150 | 215 | 20 | 8 | 18 | 180 | 10 | 19 | 13 | 15° | / |
| 125 | 5 | 165 | 245 | 19 | 8 | 18 | 210 | 12 | 19 | 13 | 15° | / |
| 150 | 6 | 180 | 280 | 21 | 8 | 23 | 240 | 12 | 20 | 14 | 15° | / |
| 200 | 8 | 210 | 335 | 24 | 12 | 23 | 295 | 16 | 25 | 22 | 10° | / |
| 250 | 10 | 230 | 405 | 28 | 12 | 26 | 355 | 16 | 25 | 22 | 10° | / |
| 300 | 12 | 245 | 460 | 28 | 12 | 26 | 410 | 16 | 25 | 22 | 10° | / |
| 350 | 14 | 255 | 520 | 29 | 16 | 26 | 470 | 16 | 25 | 22 | 10° | 4 |
| 400 | 16 | 255 | 565 | 29 | 16 | 30 | 525 | 16 | 25 | 22 | 10° | 4 |
| 450 | 18 | 255 | 640 | 33 | 20 | 30 | 585 | 16 | 25 | 22 | 5° | 4 |
| 500 | 20 | 255 | 705 | 35 | 20 | 33 | 650 | 16 | 25 | 22 | 5° | 5 |
