Product Description

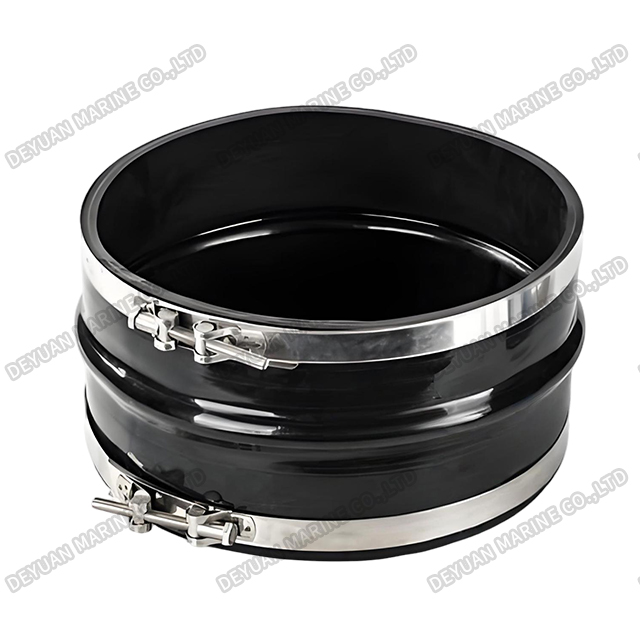

KKT Type Clamp Rubber Joint
Product introduction
The KKT Type Clamp Style Rubber Expansion Joint is a highly efficient and versatile piping component designed to absorb movement, reduce noise, and compensate for misalignments. Unlike flanged rubber joints, our KKT series utilizes a unique clamp and grooved pipe ends connection system, ensuring a quick, secure, and leak-proof seal. This design makes it an ideal solution for a wide range of applications where speed of installation and reliability are paramount.
Rubber clamp joints are typically used in low-pressure piping systems such as oil return lines, drainage lines, and powder conveying systems. Pressures are limited to 1kg. The diameter, length, thickness, and material (high-temperature, hydraulic, or food-grade) can be customized. Typical turnaround times are 15 days.

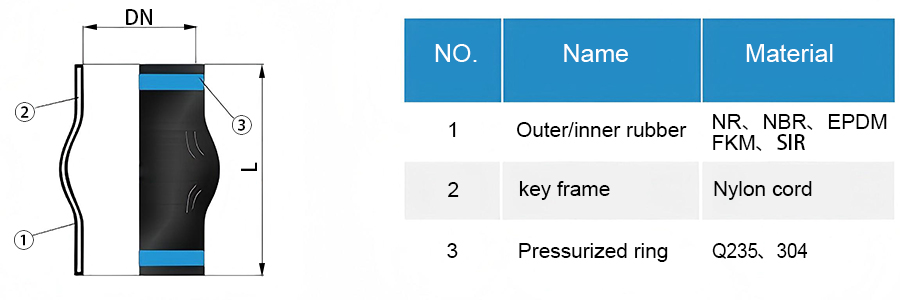

Drawing
Performance Parameter Table
| Nominal diameter | Length | Stretch | Compression | Displacemen | Deflection | |
| mm | inch | L(mm) | mm | mm | mm | ° |
| DN50 | 2 | 168 | 50 | 30 | 40 | 40° |
| DN65 | 2-1/2 | 168 | 50 | 30 | 40 | 40° |
| DN80 | 3 | 177 | 50 | 30 | 40 | 40° |
| DN100 | 4 | 200 | 50 | 30 | 40 | 35° |
| DN125 | 5 | 220 | 50 | 30 | 40 | 35° |
| DN150 | 6 | 230 | 50 | 35 | 40 | 30° |
| DN200 | 8 | 300 | 60 | 35 | 35 | 30° |
| DN250 | 10 | 300 | 60 | 35 | 35 | 30° |
| DN300 | 12 | 300 | 60 | 35 | 35 | 30° |
| DN350 | 14 | 300 | 60 | 35 | 35 | 30° |
| DN400 | 16 | 300 | 60 | 35 | 35 | 30° |
| DN500 | 20 | 300 | 60 | 35 | 35 | 30° |
| DN600 | 24 | 300 | 60 | 35 | 35 | 30° |
| DN700 | 28 | 300 | 60 | 35 | 35 | 30° |
| DN800 | 32 | 300 | 60 | 35 | 35 | 30° |
| DN900 | 36 | 300 | 60 | 35 | 35 | 30° |
| DN1000 | 40 | 300 | 60 | 35 | 35 | 30° |
| DN1200 | 48 | 400 | 60 | 35 | 35 | 30° |
| DN1400 | 56 | 400 | 60 | 35 | 35 | 30° |
