CKXT Series Flexible Single Ball Rubber Joint
Product introduction

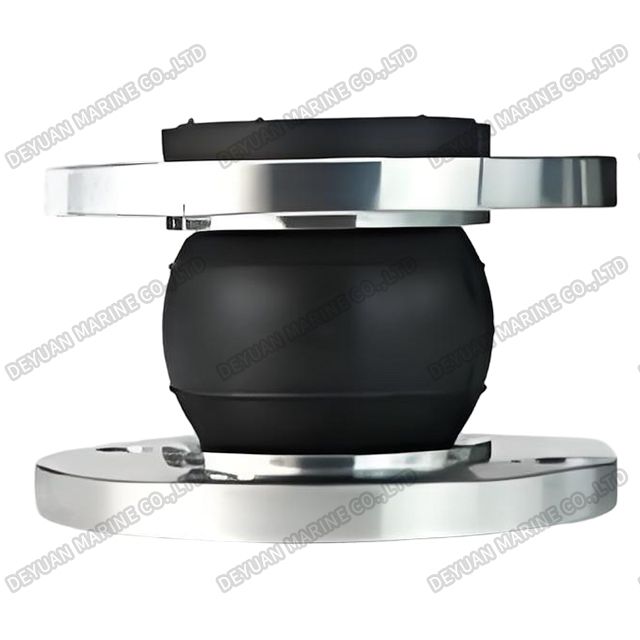

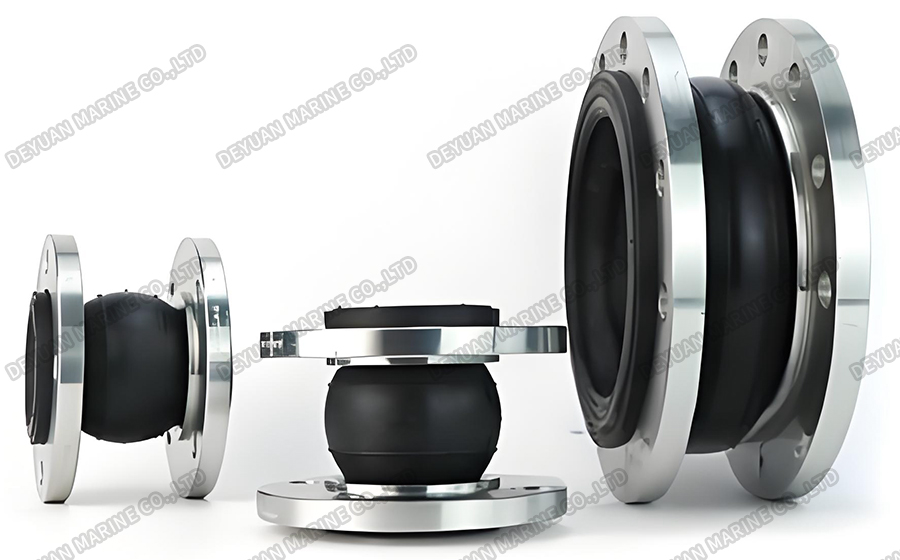

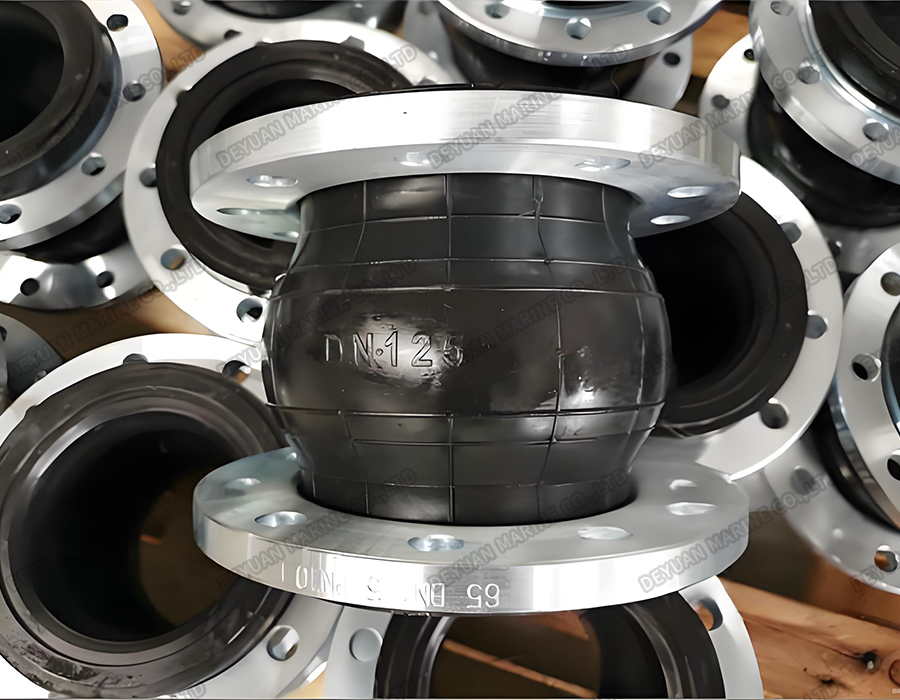

The CKXT Type Marine Single Sphere Flexible Rubber Joint is a high-performance, flexible connector engineered specifically for the demanding environments of shipbuilding and marine applications. It is designed to absorb vibrations, mitigate noise, compensate for misalignments, and accommodate thermal expansion in piping systems, ensuring superior reliability and longevity.
This product is a product composed of an inner rubber layer, nylon cord or polyester cord reinforcement, a rubber sphere compounded with an outer rubber layer and a metal flange loose sleeve it has the characteristics of high pressure resistance, good elasticity, large displacement, good vibration absorption and noise reduction, and easy installation. it can be widely used in water supply and drainage, HVAC, fire protection, compressors, papermaking ,pharmaceuticals, ships, water pumps, fans and other pipelines system.

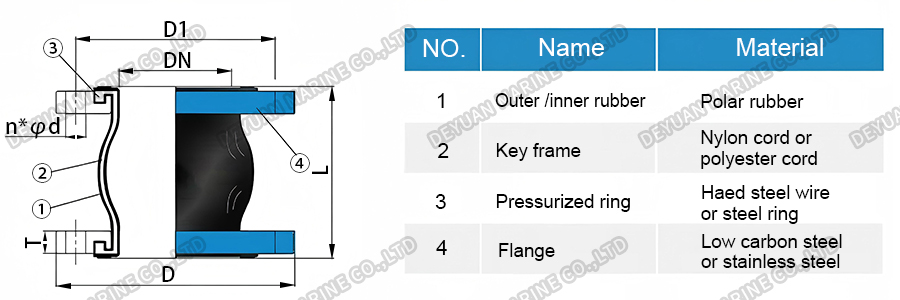

Drawing
Performance Parameter Table
| Nominal diameter | Length | Outer diameter | Flange thickness | Number of bolts | Bolt hole diameter | central circle diameter | Rubber seal outer diameter | Stretch | Compression | Displacemen | Deflection | |
| mm | inch | L (mm） | D (mm) | T (mm) | n (pcs) | d (mm) | D1 (mm) | D2(mm) | (mm) | (mm) | (mm) | ° |
| 25 | 1 | 95 | 105 | 14 | 4 | 13 | 73 | 57 | 6 | 9 | 9 | 15° |
| 32 | 1-1/4 | 95 | 115 | 14 | 6 | 15 | 83 | 64 | 6 | 9 | 9 | 15° |
| 40 | 1-1/2 | 95 | 125 | 14 | 6 | 15 | 93 | 74 | 6 | 10 | 9 | 15° |
| 50 | 2 | 106 | 135 | 14 | 6 | 15 | 103 | 84 | 8 | 10 | 11 | 15° |
| 65 | 2-1/2 | 115 | 155 | 14 | 6 | 15 | 123 | 104 | 8 | 10 | 11 | 15° |
| 80 | 3 | 136 | 170 | 14 | 8 | 15 | 138 | 18 | 10 | 12 | 13 | 15° |
| 100 | 4 | 151 | 190 | 14 | 8 | 15 | 158 | 138 | 12 | 15 | 15 | 15° |
| 125 | 5 | 167 | 215 | 14 | 10 | 15 | 183 | 164 | 14 | 18 | 18 | 15° |
| 150 | 6 | 180 | 240 | 14 | 12 | 15 | 208 | 190 | 16 | 20 | 20 | 15° |
| 200 | 8 | 190 | 310 | 17 | 12 | 17 | 273 | 250 | 16 | 20 | 20 | 15° |
| 250 | 10 | 230 | 380 | 21 | 14 | 21 | 336 | 306 | 16 | 22 | 22 | 15° |
