Product Description

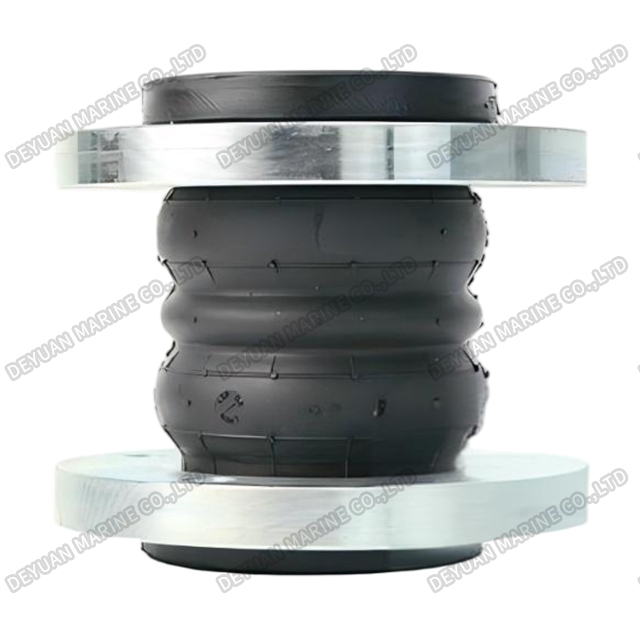

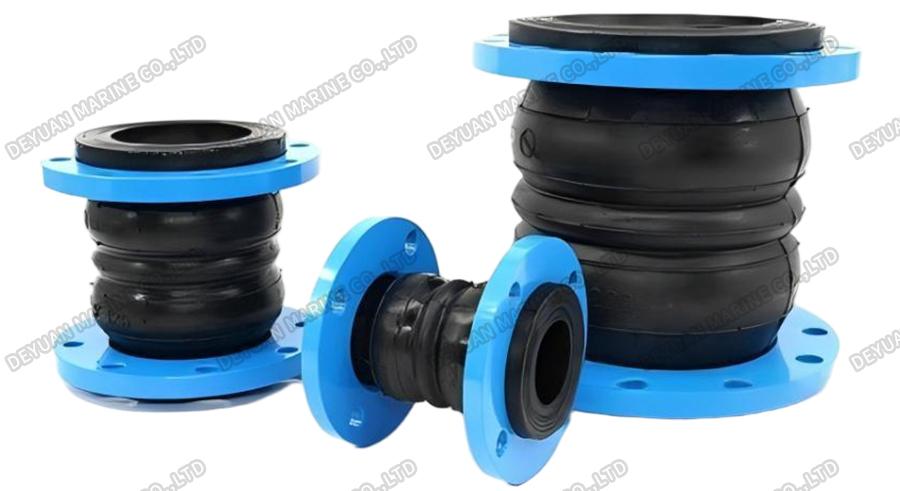

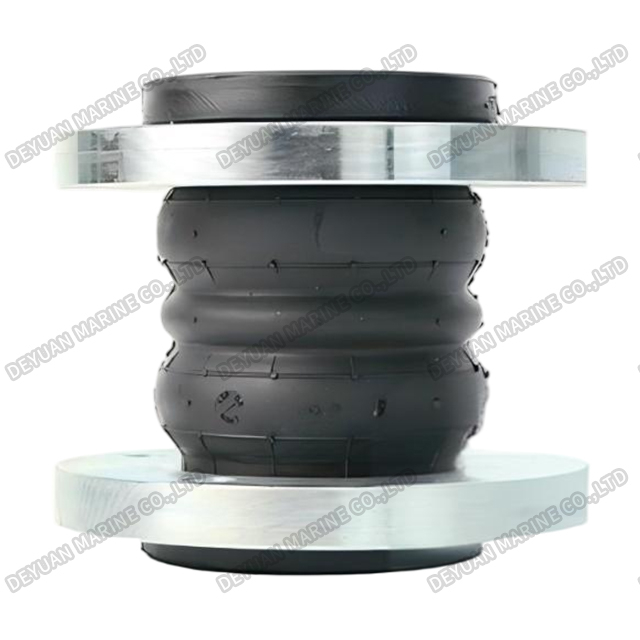

KST-F Type Double Ball Rubber Joint
Product introduction
Double ball type rubber joints in the installation length is longer than the single - ball type rubber shock joints. Applicable to: high vibration frequency, noise, some of the pump equipment, the increase in the length of the producteffective guarantee of good sound insulation effect!

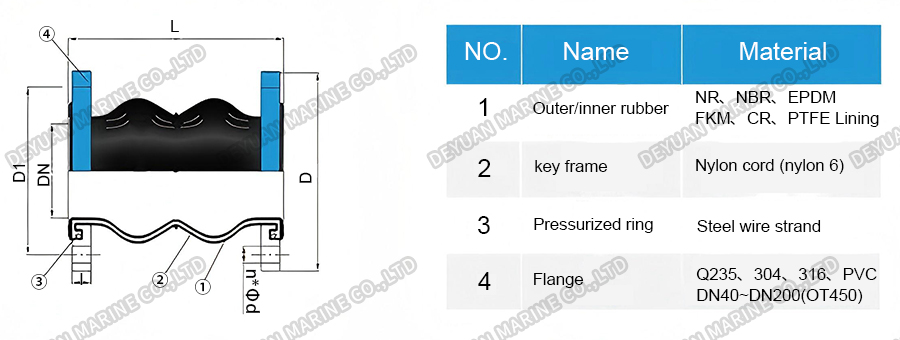

Drawing
Performance Parameter Table
| Nominal diameter | Length | Stretch | Compression | Displacemen | Deflection | Limit | |
| mm | inch | L(mm) | mm | mm | mm | ° | quantity |
| 40 | 1-1/2 | 155 | 25 | 40 | 40 | 35° | / |
| 50 | 2 | 160 | 30 | 50 | 45 | 40° | / |
| 65 | 2-1/2 | 170 | 30 | 50 | 45 | 40° | / |
| 80 | 3 | 170 | 30 | 50 | 45 | 40° | / |
| 100 | 4 | 220 | 35 | 50 | 40 | 35° | / |
| 125 | 5 | 220 | 35 | 50 | 40 | 35° | / |
| 150 | 6 | 220 | 35 | 50 | 40 | 35° | / |
| 200 | 8 | 320 | 35 | 60 | 35 | 30° | 3 |
| 250 | 10 | 320 | 35 | 60 | 35 | 30° | 3 |
| 300 | 12 | 320 | 35 | 60 | 35 | 30° | 3 |
| 350 | 14 | 320 | 35 | 60 | 35 | 30° | 4 |
| 400 | 16 | 320 | 35 | 60 | 35 | 30° | 4 |
| 500 | 20 | 330 | 35 | 60 | 35 | 30° | 5 |
| 600 | 24 | 330 | 35 | 60 | 35 | 30° | 5 |
