Product Description

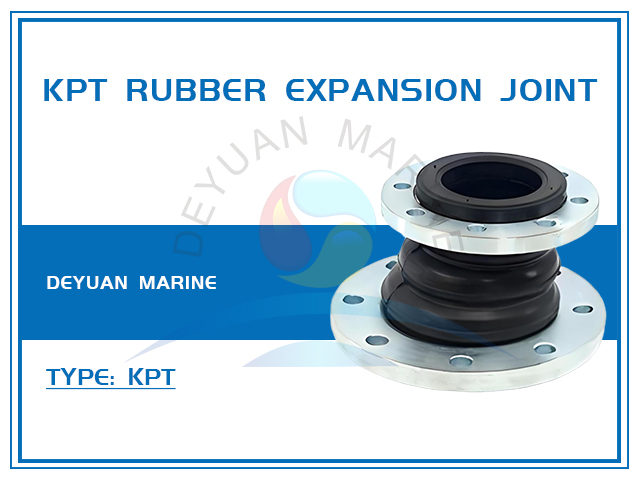

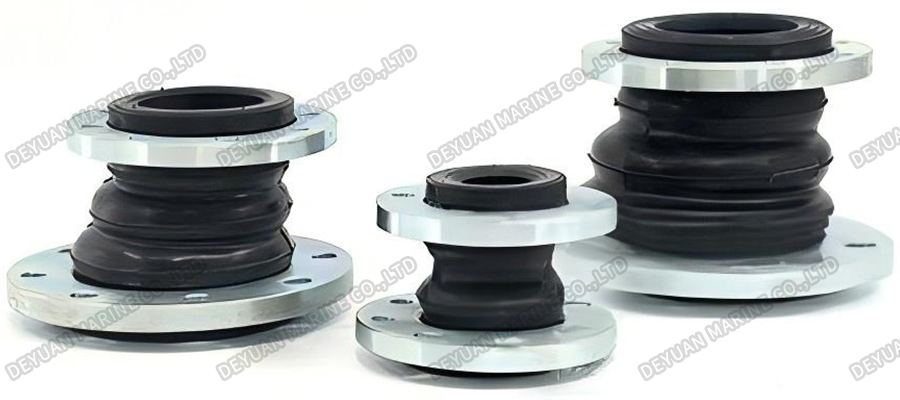

KPT Rubber Expansion Joint
Product introduction
Eccentric reducing rubber joints are primarily used for connections where pipe diameters need to be changed. The pipe is mounted against a wall or on a bracket, with one side facing a flat surface.
Note: This product is generally not in stock and requires custom ordering.

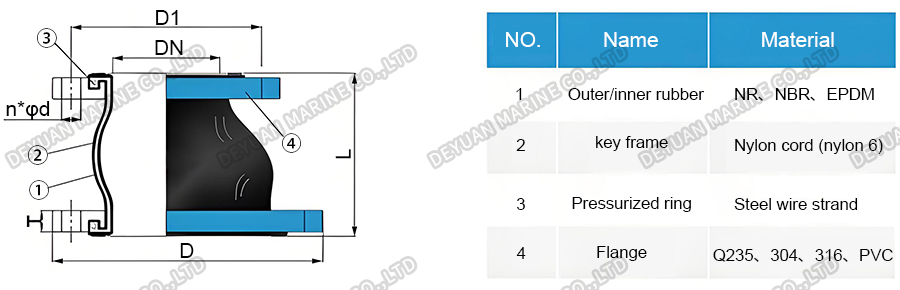

Drawing
Performance Parameter Table
| Nominal diameter | Length | Stretch | Compression | Displacemen | Deflection |
| mm | L(mm) | mm | mm | mm | ° |
| 50*32 | 110 | 7 | 9 | 8 | 10° |
| 50*40 | 110 | 7 | 9 | 8 | 10° |
| 65*50 | 130 | 8 | 10 | 9 | 10° |
| 80*50 | 125 | 8 | 11 | 10 | 10° |
| 80*65 | 140 | 9 | 12 | 11 | 10° |
| 100*65 | 140 | 9 | 12 | 11 | 10° |
| 100*80 | 140 | 9 | 12 | 11 | 10° |
| 125*100 | 175 | 12 | 17 | 14 | 10° |
| 150*100 | 180 | 12 | 17 | 14 | 10° |
| 200*125 | 220 | 15 | 20 | 17 | 10° |
| 200*150 | 220 | 15 | 23 | 17 | 10° |
