Product Description

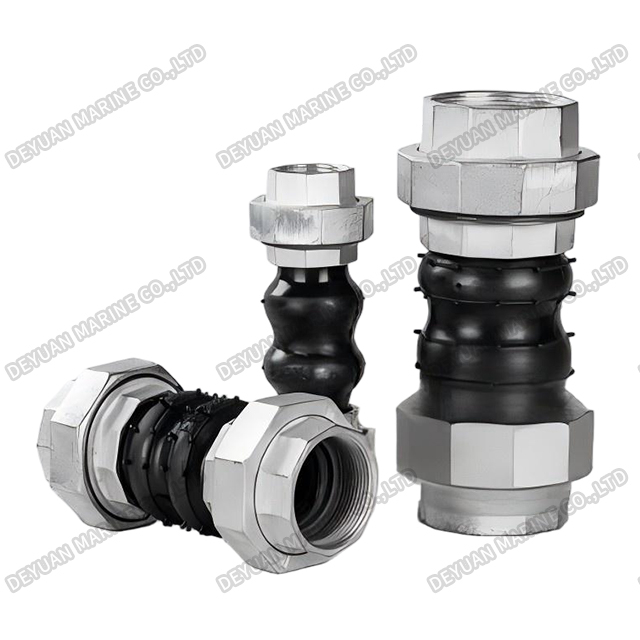

KST-L Type Double Sphere Threaded Rubber Joint
Product introduction
The connection method of the double ball thread rubber joint is the inter-nal thread union at both ends.
Applicable to: central air-conditioning fan coil, the product length is in-creased, which effectively ensures good sound insulation effect!

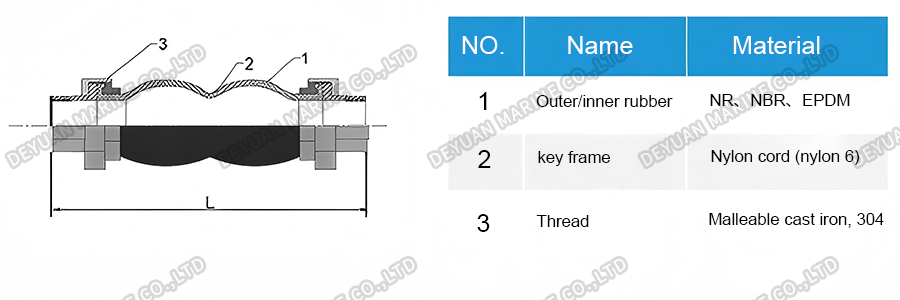

Drawing
Performance Parameter Table
| Nominal diameter | Length | Stretch | Compression | Displacemen | Deflection | |
| mm | inch | L(mm) | mm | mm | mm | ° |
| 32 | 1-1/4 | 200 | 6 | 22 | 22 | 40° |
| 40 | 1-1/2 | 200 | 6 | 22 | 22 | 35° |
| 50 | 2 | 200 | 6 | 22 | 22 | 25° |
| 65 | 2-1/2 | 240 | 6 | 22 | 22 | 25° |
| 80 | 3 | 250 | 6 | 22 | 22 | 25° |
