Mooring Deck Mounted Steel Vertical Guide Sheaves For Ship

Brand: DEYUAN MARINE
Name: Vertical Guide Sheaves
Material: cast steel
Color: as per customer's request
Certificate: CCS,ABS,DNV,GL,RINA,LR,BV etc
Warranty : 2years
Delivery time: depends on order
  • Name: Vertical Guide Sheaves
  • Material: cast steel
  • Color: as per customer's request
  • Certificate: CCS,ABS,DNV,GL,RINA,LR,BV etc
  • Warranty : 2years
  • Delivery time: depends on order
Availability:

Product Description

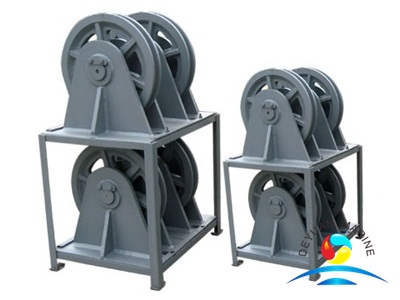

Mooring Deck Mounted Steel Vertical Guide Sheaves For Ship


Steel vertical guide sheaves is designed for mooring or load moving applications,for breaking strength of wire with 90° wrap on sheave,its guide roller is removable.Deck Mounted Vertical guide sheaves is fabricated from good quality steel and can come with weld down base or bolt down base,a wide range of size,capacities are for selection.


Our Mooring vertical guide sheaves are approved by CCS,ABS,DNV,RINA,GL,BV etc,for more information,Warmly welcome you to send us your inquiry if you in need of any Ship Vertical Guide Sheaves.


Deyuan Marine consists of skilled technical personnel, excellent salesperson, as well as a highly experienced management. Together we are united in our mission to ensure our clients experience only the best of quality products and after sale services. We are always in here to wait for you .



Vertical Guide Sheaves Specifications:


1)Material : High Quality Structured Steel

2) Sealed grease lubricated Timken tapered roller bearings

3) Hardened rope grooves for longer life

4) Weld down base

5) Removable guide roller

6) Maximum wire size: 3/4", 1", 1.1/4", 1.1/2", 1.3/4"  ,from 22mm to 66mm, other size can be customized


Mooring Deck Mounted Steel Vertical Guide Sheaves Specification:

Figure No. Lead Sheave  Stock No. Sheave Diameter(in.) Standard Wire Rope Size(in.) Weight
(lbs)
Dimensions(in.)
A B C D
461-18 239753 18  7/8 500 12 20 11 1.5
461-24 131574 24 1-1/4 500 15 26 14 1.5
461-26 238120 26 1-1/2 660 16 28 15 1.5
461-36 148389 36 1-1/8 850 20 36 19.5 2
461-40 136285 40 2 2006 23 42 22.5 2
461-42 130753 42 2-1/2 4000 28 52 25.5 2.5
