Product Description
A wide range of size,capacities ship's fairleads can be offered,custom-made fairleads also available,pls feel free to contact us if any inquiry.

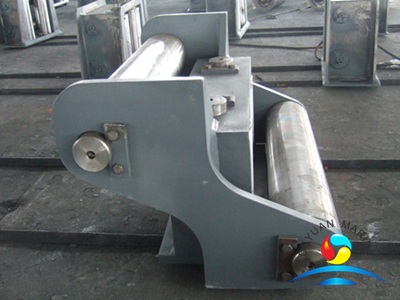

Below is the data sheet of Engineering Vessel Fairlead for your reference
Roller dia D | Horizontal roller dia d1 | Suitable steel wire dia | L | B | H | Screw hole dia d | |||||
A type | B type | b | h1 | h2 | I | ||||||
100 | 85 | 19.5 | 540 | 340 | 240 | 240 | 250 | 220 | 50 | 200 | 22 |
150 | 120 | 26 | 760 | 460 | 340 | 340 | 340 | 320 | 65 | 290 | 26 |
200 | 150 | 37.5 | 980 | 580 | 430 | 440 | 430 | 410 | 80 | 380 | 32 |
250 | 200 | 48.5 | 1220 | 740 | 520 | 550 | 540 | 500 | 110 | 480 | 39 |
300 | 250 | 56 | 1460 | 900 | 620 | 675 | 650 | 590 | 135 | 580 | 39 |
