Product Description

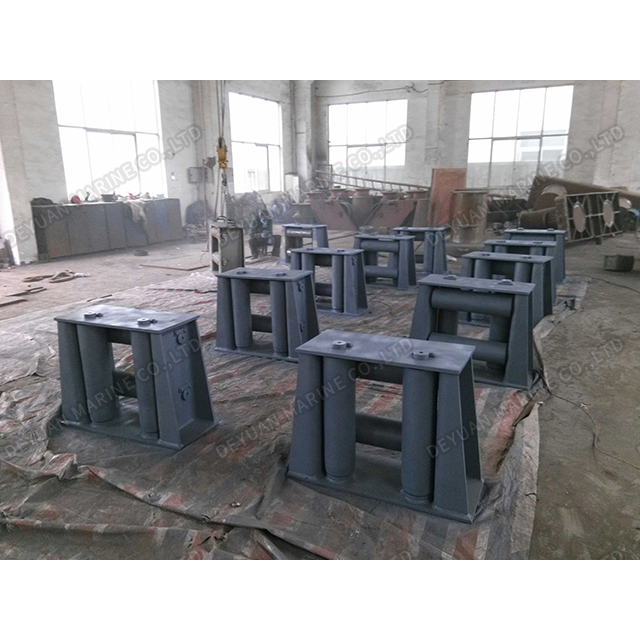

CB/T 3062 Type B Universal Fairlead Roller with 4 Rollers
Introduction of CB/T3062 Universal Fairlead Roller
CB/T3062 Universal Fairlead Roller is a type of ship's mooring fitting installed on board to lead the mooring rope from the ship's inboard to outboard, to save the cable from getting damaged by sharp borders and for the reduction of line damage.
There are three types of CB/T3062 Universal Fairlead Roller, type A built with 3 rollers, type B built with 4 rollers, type C built with 5 rollers, all types can certified by any of IACS Class like CCS, ABS, LR, BV, DNV, NK etc.
Material for CB/T3062 Universal Fairlead Roller
Frame and other plates: carbon structural steel
Roller: tube Steel
Axle: carbon steel
Bush: brass or equivalent
DEYUAN MARINE provides a full range of Fairlead Roller for multiple marine-duty applications.
ISO13733 Universal Roller Fairlead with upper roller
ISO13742 Universal Roller Fairlead without upper roller
JIS F2020 Deck End Rollers
JIS F 2026-80 Universal Fairlead Rollers, type A
JIS F 2026-80 Universal Fairlead Rollers, type BR
DIN81902 Universal Fairlead Rollers, type FA4
DIN81902 Roller Fairleaders, type FA6
DIN81902 Roller Fairleaders, type FB7
DIN81902 Roller Fairleader, type FB10
CB/T 3062 Fairlead Roller
CB3015 Engineering Fairlead
CB/T3062 Type B Universal Fairlead Roller with 4 Rollers
Nominal Size. (Dn) | Wire dia.(mm) | Rope Dia.(mm) | SWL(kn) | Dimension(mm) | Weight (kg) | ||||||||
B | B1 | B2 | D | H | L | L1 | L2 | L3 | |||||
100 | 14 | 36 | 54 | 238 | 194 | 108 | 102 | 508 | 644 | 416 | 300 | 544 | 112 |
120 | 16 | 40 | 70 | 280 | 232 | 128 | 128 | 552 | 728 | 456 | 320 | 608 | 169 |
140 | 18 | 45 | 89 | 304 | 250 | 138 | 138 | 606 | 776 | 480 | 330 | 646 | 227 |
150 | 20 | 70 | 110 | 346 | 288 | 158 | 158 | 670 | 880 | 540 | 370 | 730 | 328 |
160 | 22 | 80 | 133 | 370 | 308 | 168 | 168 | 710 | 940 | 580 | 400 | 780 | 388 |
180 | 26 | 85 | 186 | 417 | 345 | 190 | 194 | 770 | 1030 | 620 | 420 | 850 | 620 |
200 | 28 | 95 | 216 | 459 | 385 | 210 | 219 | 820 | 1136 | 686 | 460 | 936 | 798 |
230 | 32 | 100 | 282 | 521 | 445 | 240 | 245 | 910 | 1256 | 746 | 490 | 1026 | 1067 |
260 | 36 | 100 | 357 | 590 | 500 | 270 | 273 | 1000 | 1430 | 850 | 560 | 1170 | 1585 |
320 | 44 | 100 | 533 | 714 | 620 | 330 | 325 | 1130 | 1690 | 990 | 640 | 1370 | 2441 |
