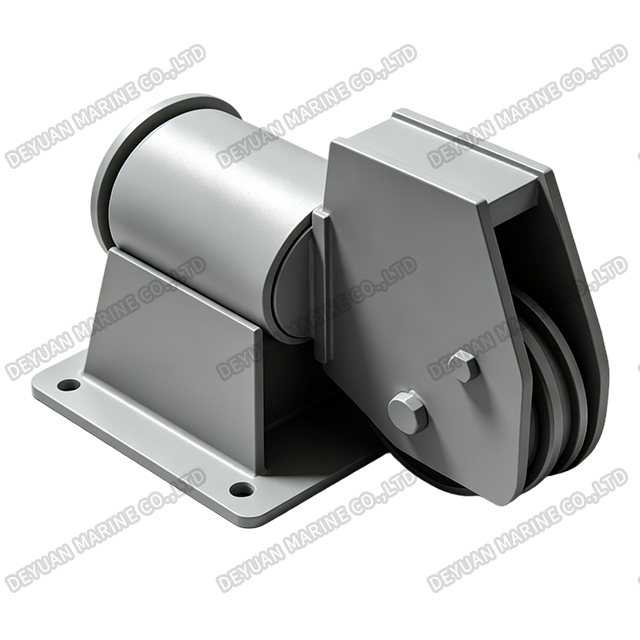

A40 Deck Mounted Single Sheave Swivel Head Anchor Fairlead

Place of Origin: China
Brand: DEYUAN MARINE
Product: Head Anchor Fairlead
Type: A40
Installation: Deck mounted
Base: Weld down or bolt down
Material: High quality steel
Surface: with anti-corrosion protective finish

Product Description

A40 Deck Mounted Single Sheave Swivel Head Anchor Fairlead

360 degree universal fairleaders suppliers product description

Introduction of A40 Single Sheave  Anchor Fairleader

Swivel Head Anchor Fairlead, also know as  balanced head swivel fairleads, type A39 fairleader is a single sheave fairleads that designed for wire dia. range from 19mm to 76mm, a weld down or bolt down base are designed for option, third party certificate available too if required.

Apart from A40 Swivel Head Anchor Fairlead, DEYUAN MARINE also provide A38 Balance head fairlead, A39swivel anchor fairleader, vertical type guide sheaves,  single sheave horizontal guide sheaves, double sheave horizontal guide sheaves,ISO Standard multi-angle fairlead,JIS Standard Roller Fairlead,DIN Standard Universal Roller Fairlead.

A variety of sizes are designed to meet different job requirements, should any of the anchor fairleaders be interested of you, pls donot hesitate to contact DEYUAN MARINE sales team for further discussion.


Balanced head swivel fairleads in stock product description

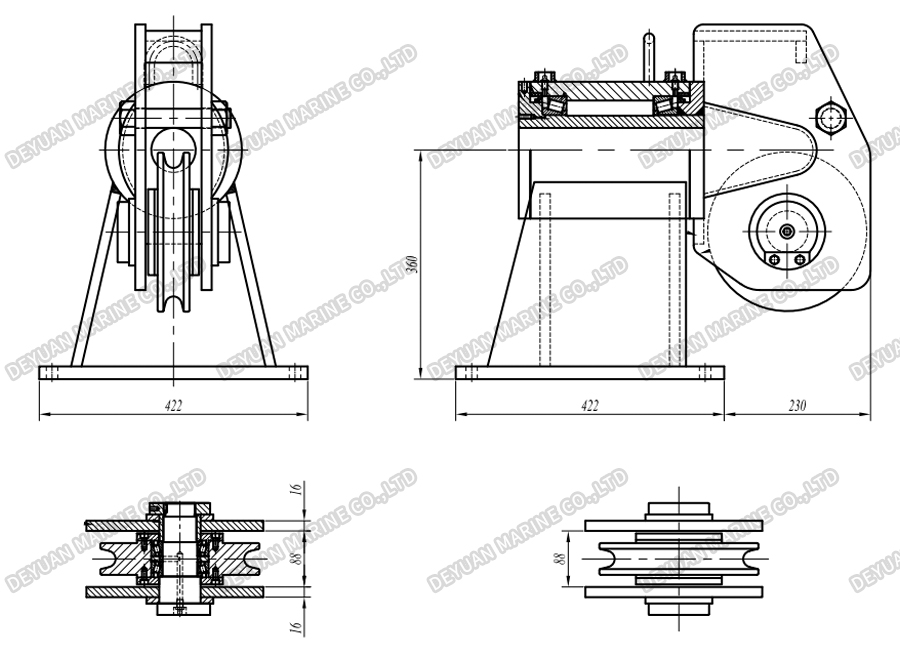

A40 Single Sheave  Anchor Fairleader

Wire Rope Diameter Sheave Dia. Dimensions(mm) Mass
(mm) (Inch) (mm) A B C D E F (kgs)
19 3/4 210 627 406 511 405 279 114 122
25 1 254 756 489 625 491 343 143 225
32 1-1/4 305 790 480 735 400 375 180 380
38 1-1/2 424 1220 782 921 782 495 205 941
44 1-3/4 508 1201 724 1156 614 597 241 953
50 2 610 1343 762 1138 756 648 305 1202
57 2-1/4 632 1515 1022 1543 769 800 330 2177
64 2-1/2 762 1670 1016 1784 769 921 368 2722
76 3 1012 2335 1400 1822 1300 970 410 6300

Swivel Head Anchor Fairlead for sale
