Product Description

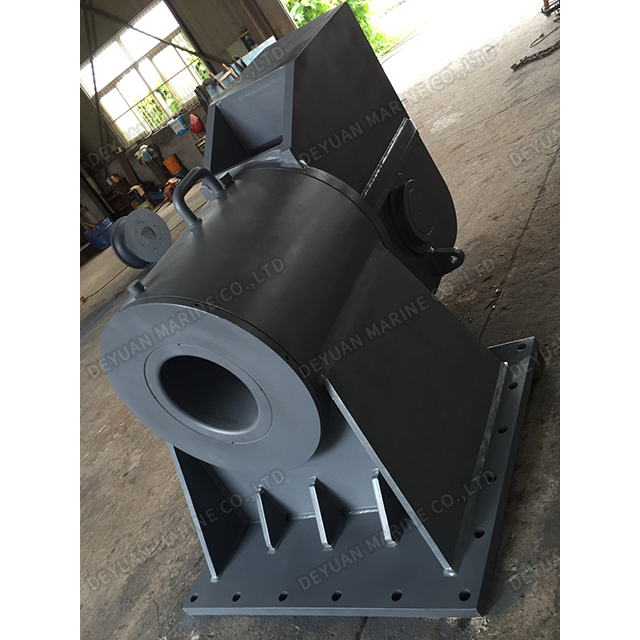

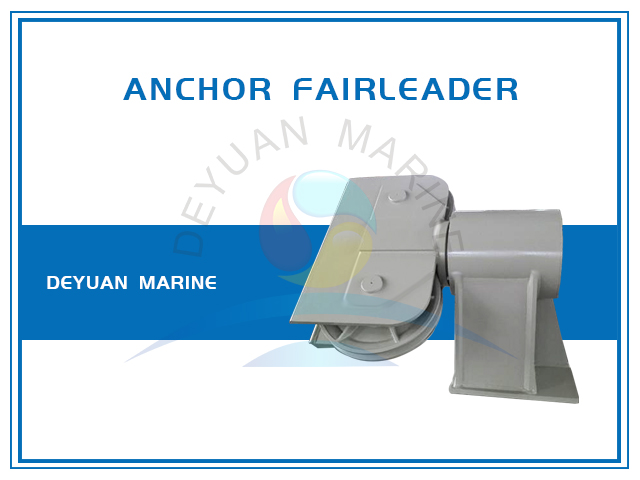

Type A39 360 Rotation Double Sheave Swivel Head Anchor Fairleads
Introduction of A39 Double Sheave Swivel Head Anchor Fairleads
Swivel Head Anchor Fairleads, also know as balanced head swivel fairleads, type A39 swivel fairleader is a double sheave fairleads with 2 rollers. It's designed for wire dia. range from 25mm to 64mm, for Breaking Strength of Wire Rope at 90° Wrap on the Sheave and 360° rotation of swivel head.
This Swivel Head Anchor Fairleads were made from high quality steel and a weld down or bolt down base are designed for option, third party approval certificate available if required.
Apart from standard design, customed designed also available, tail sheaves, tail rollers can be for option too.
DEYUAN MARINE supplies serval types of Anchor Fairleader to suit different jobs,
A38 double sheave anchor fairleader
A39 double sheave swive head anchor fairlead
A40 deck mounted Anchor Fairleader
vertical type guide sheaves
horizontal type deck sheave
Should any of the anchor fairleaders be interested of you, pls donot hesitate to contact DEYUAN MARINE sales team for further discussion.
A39 Double Sheave Swivel Head Anchor Fairleads
Wire Rope Diameter | Sheave Dia. | Dimensions(mm) | Mass | ||||||
(mm) | (Inch) | (mm) | A | B | C | T | H | G | (kgs) |
25 | 1 | 254 | 559 | 356 | 651 | 20 | 292 | 90 | 367 |
32 | 1-1/4 | 305 | 711 | 508 | 862 | 30 | 343 | 100 | 612 |
38 | 1-1/2 | 406 | 780 | 782 | 1231 | 30 | 489 | 150 | 720 |
44 | 1-3/4 | 508 | 1067 | 914 | 1503 | 50 | 546 | 190 | 1700 |
50 | 2 | 610 | 1219 | 1067 | 1775 | 50 | 648 | 220 | 2108 |
64 | 2-1/2 | 762 | 1370 | 1550 | 2400 | 50 | 800 | 300 | 4370 |
