Marine Guide DIN Standard Five or Six-roller Fairlead

Name: Five or Six-roller Fairlead
Standard: DIN(German standard)
Material: cast steel
Color: as per yr request
Warranty : 2years
Place of Origin: Zhuhai,China
Delivery time:10-30 days
Payment:T/T ,L/C etc

Product Description

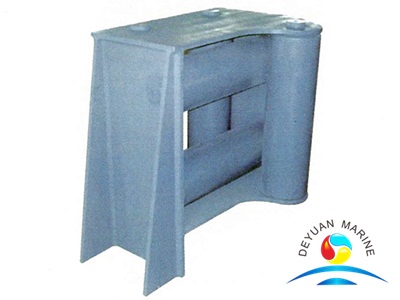

Marine Guide  DIN Standard Five or Six-roller Fairlead

According to DIN(German standard),there are four roller fairleads,five roller fairleads,six roller fairleads,the biggest one is with 12 rollers fairleads.Different fairleads with different rollers are suitable for different wire rope or rope diameter.

All our fairleads are made of high level steel and are certified by CCS,ABS,DNV,GL,BV,NK etc,no matter what types of fairleads you are looking for,contact  deyuan marine sales team,you will find the right person and the right fairleads.


Roller fairlead data sheet for your reference

Type Wire Ø A B C D E F G H I K L M weight
(kg)
1 2
CFL2
CFR2
CFA2
12 180 100 650 80 446 170 10 465 208 80 356 255 85 95
CFL3
CFR3
CFA3
16 230 130 800 100 546 210 10 575 258 100 446 315 145 165
CFL5
CFR5
CFA5
20 250 130 900 120 626 250 15 655 308 120 506 375 255 290
CFL8
CFR8
CFA8
24 280 160 1000 140 716 288 20 730 328 120 576 432 390 440
CFL12
CFR12
CFA12
32 300 160 1200 180 836 366 25 855 398 140 676 549 665 750
CFL20
CFR20
CFA20
40 320 180 1350 245 1030 500 35 1045 505 180 830 750 1300 1450
CFL32
CFR32
CFA32
48 400 250 1700 300 1236 608 45 1260 583 200 1016 912 2400 2700
