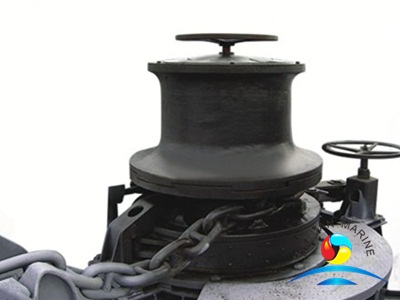

Vertical type Ship Anchor and Warping Tugger Capstan

Brand: Deyuan Marine
Drive: Electric or Hydraulic
Chain diameter: 17.5~40mm
Working load: 13~76KN
Rated pull: 19.5~114KN
Rated load: 80KN~576KN
Rated speed: 9m/min Mooring load: 8~40KN
Availability:

Product Description

Vertical type Ship Anchor and Warping Tugger Capstan


Sometimes need to use vertical type anchor handling windlass to save deck space for a ship especially for small boats, that's why such type of windlass existing.


And normally there will be a vertical drum which also called capstan head installed together to realize warping/mooring function. To allow separately running for the capstan head and windlass wildcat, there will be a clutch for the gypsy.


Chain Dia. Working Load  (kN) Rated Pull  (kN) Rated Load  (kN) Rated Speed Mooring Load
(mm) AM2 AM3 AM2 AM3 AM2 AM3 (m/min) (kN)
17.5 13 14.6 19.5 21.9 80 115 9 8
19 15.3 17.2 23 25.8 95 135 9 10
20 17.9 20 26.9 30 110 157 9 10
22 20.6 23 30.9 34.5 126 180 9 15
24 24.5 27.4 36.8 41.1 149 214 9 20
26 28.7 32.1 43.1 48.2 175 250 9 20
28 33.3 37.2 50 55.8 202 289 9 20
30 38.3 42.8 57.5 64.2 231 330 9 30
32 43.5 48.6 65.3 72.9 261 374 9 30
34 49.1 54.9 73.7 82.4 294 421 9 30
36 55.1 61.6 82.7 92.4 329 470 9 30
38 61.4 68.9 92.1 103.4 365 522 9 40
40 68 76 102 114 402 576 9 40

More ship anchor and warping capstan can be offered,pls contact us for more details.
