Marine Casting Steel Double Mooring Bitts Bollards DIN82607 For Ship

Brand: DEYUAN MARINE
Name: Double Bollards
Standard: DIN82607
Material: Cast iron or cast steel
Color: as per yr request
Surface treatment: primed,galvanised or painted finish.
Certificate: CCS,ABS,RINA,LR,BV,DNV etc

Product Description

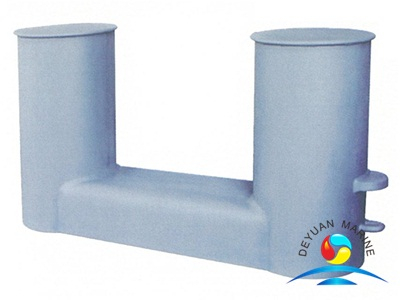

Marine Casting Steel Double Mooring Bitts Bollards DIN82607 For Ship


Our Marine double bollards were designed as per DIN82607 standard.The Casting Steel double bollard's two steel tubes are fitted directly into a common reinforced steel base,two ridges is provided to prevent ropes from moving, A rope stopper ,also call stopper lug also be offered.Upon request,our double mooring bitts can be delivered in combination with a warping roller.


Tubes penetrate the base plate and reinforcement plates have been fitted in the base , Therefore ,the foundation construction does not have to penetrate the deck .


All our DIN82607 Marine double bollards is finished by standard sandblasted,one layer of shop primer,if needed,galvanized  finishing is for option.


The Marine Double bitts pull from 10T up to 200T, and used in Various shipyards, docks and marine applications all over the Panama and Europe seaboards, our Marine double mooring bollards can paint according to customer’s requirements with good quality and prompt delivery , we can offer ABS, CCS, BV, NK, KR, DNV , LR Certificate .


 We guaranteed products at a competitive price and quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit.


If you are interested in our Steel Mooring Bitts, welcome to send the inquiry or call our sales team directly , we will handle your case quickly and quote for you .


Marine Casting Steel Double Mooring Bitts Bollards DIN82607 For Ship:

Size Rated towing
 pill(kN)
TUBE D1 B D2 E H1 H2 S2 A Weight
(kg)
D1 10 139.9x6.3 130 160 430 370 105 5 4 20,6
D2 20 219.1x8 180 242 570 475 115 6 4 52,3
D3 32 273.0x10 250 300 700 570 135 8 5 99,5
D5 50 323.9x10 300 355 880 670 150 8 6 145,4
D8 80 355.6x14.2 330 390 1050 780 175 10 8 259,4
D12 120 457.0x16 420 490 1200 860 195 16 12 437,0
D20 200 508.0x17.5 470 545 1350 970 230 16 . 571,0
D32 320 559.0x20.0 530 600 1400 1000 270 16
830,0
