Product Description

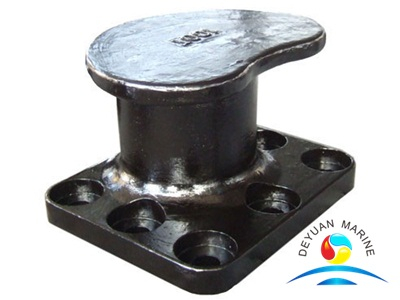

100T K-head Type Marine Mooring Bollard For Boat And Wharf
K-Head Marine Bollard have A variety sizes, commonly used mooring ,capacities of K head marine wharf bollard has been designed for warping applications for ships and vessels. Mooring K head type bollard is an economic and popular bollard,other bollards like Y type dock bollard,T type bollard,S type bollard,Kidney type bollard, tee head type bollard also can be provided if needed.
Wharf marine K head bollard is loading capacity from100T to 800T , there are several different material ,they are Cast Iron, Cast Steel or Ductile Iron (Spheroidal Graphite), available Mounting Hardware is Galvanized Grade 8.8 bolts, nuts and washers or Stainless Steel available Surface and Paint is Shot Blast to Sa2.5 then Fully painted or with rust preventative primer.
All our Boat K head bollards are finished in good workmanship and at least with 2 years warranty.Usually life span for our bollard is 10 to 15years,if you are looking for any marine bollards,Deyuan marine would be your best choice.
We can design and produce the Marine Boat Bollard according to the drawings and technical requirements you request. We guaranteed products at a competitive price and quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit.
If you are interested in our K-head Mooring Bollard , welcome to send the inquiry or call our sales team directly , we will handle your case quickly and quote for you .
K-head Type Marine Mooring Bollard For Boat And Wharf Parameter :
Marine bollard | D | D1 | 1 | A | B | L | H | t3 | marine bollard |
Nominal Dia | Weight(kg) | ||||||||
100 | 114 | 145 | 10 | 250 | 165 | 445 | 196 | 6 | 19 |
125 | 140 | 180 | 10 | 315 | 195 | 540 | 246 | 6 | 29 |
160 | 168 | 210 | 10 | 400 | 225 | 670 | 316 | 6 | 45 |
200 | 219 | 270 | 10 | 500 | 290 | 860 | 378 | 8 | 80 |
250 | 273 | 335 | 11 | 630 | 360 | 1065 | 470 | 10 | 141 |
315 | 325 | 390 | 15 | 800 | 430 | 1300 | 597 | 12 | 264 |
355 | 351 | 420 | 17 | 890 | 480 | 1475 | 663 | 13 | 358 |
400 | 402 | 480 | 18 | 1000 | 550 | 1630 | 749 | 14 | 499 |
450 | 450 | 545 | 19 | 1130 | 620 | 1840 | 841 | 16 | 680 |
500 | 508 | 610 | 20 | 1250 | 690 | 2040 | 928 | 18 | 911 |
560 | 560 | 670 | 22 | 1380 | 750 | 2240 | 1025 | 20 | 1208 |
630 | 610 | 730 | 24 | 1570 | 820 | 2510 | 1152 | 22 | 1601 |
710 | 712 | 840 | 25 | 1750 | 960 | 2840 | 1294 | 24 | 2252 |
800 | 813 | 940 | 26 | 2000 | 1100 | 3240 | 1480 | 25 | 3071 |
