ME Type Round-corner Single-leaf Steel Weathertight Door

Material: Steel
Leaf type: Single leaf
Clear size: Customized
Color: White or customized
Feature: Weather tight
Waterproof test: Under nozzle diameter 12.5mm,water pressure 0.25Mpa
Certificate: RINA, RS, NK, LR, KR, CCS, GL, DNV, ABS Class
  • DEYUAN MARINE
Availability:

Product Description

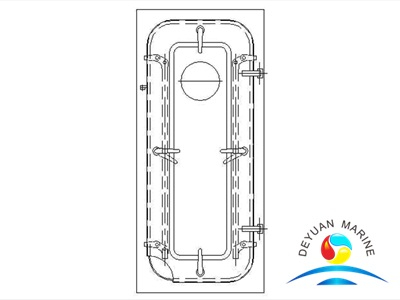

ME Type Steel Door

Door opening direction as rule GB 11874-89
Steel door test request: It should passed the hose test which nozzle diameter 12.5mm,water pressure 0.25Mpa
Clear Size Cut-out Size ME
B X L B1 X L1 t Grip Quantity Weight(kg)
500X1000 560X1060 - - -
600X1200 660X1260 - - -
600X1400 660X1460 3 2 68
650X1550 710X1610 3 2 78
650X1650 710X1710 3 2 80
800X1650 860X1710 3 2 98
