Product Description
ABS Approved Marine A60 Single Handle Watertight Steel Door
Marine steel watertight doors are normally use for engine room and the other locations to meet water-pressure requirement. This type with A60 fireproof level to meet fire resistence requirement. We can also supply with other fireproof level such as A30, A0, B15, B0 etc.
Our marine A60 steel watertight door with features of single handle operated, view port options, good quality material, watertightness, fireproofness and epoxy zinc rich primer coating etc. Main classification socienties certificate such as ABS, GL, DNV, CCS, BV, LR, etc can be provide, welcome contact with us if you are interested in this kind of marine A60 watertight steel door.
Suitable for accommodations with A60 fireproof and watertight requirements.

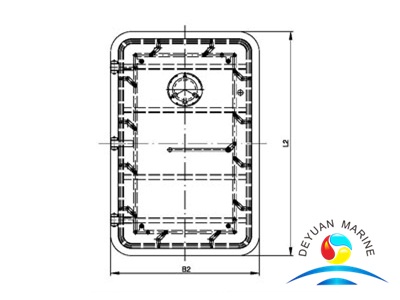

| No | Nomial size(mm) | Cutout in steel wall | Extemal size(mm) | Leaf thickness | Remarks |
| B×L×R100 | B1×L1×R150 | B2×L2×R200 | |||
| 1 | 600×1700 | 700×1800 | 800×1900 | 95 | With bulleye Φ200 |
| 2 | 650×1700 | 750×1800 | 850×1900 | ||
| 3 | 700×1700 | 800×1800 | 900×1900 | ||
| 4 | 600×1800 | 700×1900 | 800×2000 | ||
| 5 | 700×1800 | 800×1900 | 900×2000 | ||
| 6 | 800×1800 | 900×1900 | 1000×2000 | ||
| 7 | 800×1900 | 900×2000 | 1000×2100 | ||
| 8 | 900×1900 | 1000×2000 | 1100×2100 | ||
| 9 | 1000×2000 | 1100×2100 | 1200×2200 | ||
| 10 | 1200×2000 | 1300×2100 | 1400×2200 |
