Product Description

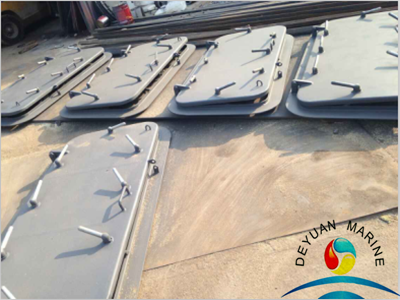

900X1600mm Marine Weathertight Steel Door 6mm With 8 Clips
Marine weathertight steel door used for the doorway of superstructure above freeboard deck or deck house to meet ISO6042-1980.
Above type marine steel door is weathertight type with dog clips for operating, our standard clear size for this steel weathertight door is from 500*1000mm to 900*1600mm, other size can be customized as per required. thickness can be 6, 8, 10mm etc are all available.Gog clips number 6 or 8 are available.This kind of steel weathertight door can also customized with view port or with deadlight to meet custoemrs special demand.
We supply high quality of marine steel weathertight door, marine certificate such as GL, DNV, CCS, BV, ABS, LR, etc. can be provide.
Steel door test request: It should passed the hose test which nozzle diameter 12.5mm, water pressure 0.25Mpa.
| Model | Clear Size | Cut-out Size | Door Leaf Size | Door Frame | Weight | ||||||||||||
| HA | HB | HC | HD | HE | |||||||||||||
| Wxh | W1Xh1 | R | W2Xh2 | t | Spec | THK | 6 | 8 | 6 | 8 | 6 | 8 | 6 | 8 | 6 | 8 | |
| HA HB HC HD HE | 500X1000 | 560X1060 | 130 | 555X1055 | 6 8 | 75X50 | 6 8 | 83 | 96 | 91 | 97 | 92 | 98 | 89 | 95 | 92 | 99 |
| 600X1200 | 660X1260 | 655X1255 | 102 | 124 | 110 | 125 | 111 | 126 | 108 | 123 | 112 | 127 | |||||
| 600X1400 | 660X1460 | 655X1455 | 116 | 147 | 124 | 148 | 125 | 149 | 122 | 146 | 126 | 150 | |||||
| 750X1400 | 810X1460 | 805X1455 | 133 | 167 | 141 | 168 | 142 | 169 | 139 | 166 | 143 | 170 | |||||
| 900X1400 | 960X1460 | 955X1455 | 164 | 196 | 172 | 197 | 173 | 198 | 170 | 195 | 174 | 199 | |||||
| 600X1600 | 660X1660 | 655X1655 | 128 | 159 | 136 | 160 | 137 | 161 | 134 | 158 | 138 | 162 | |||||
| 750X1600 | 810X1660 | 805X1655 | 155 | 186 | 163 | 187 | 164 | 188 | 161 | 185 | 165 | 189 | |||||
| 900X1600 | 960X1660 | 955X1655 | 176 | 218 | 184 | 219 | 185 | 220 | 182 | 217 | 186 | 221 | |||||
