Product Description

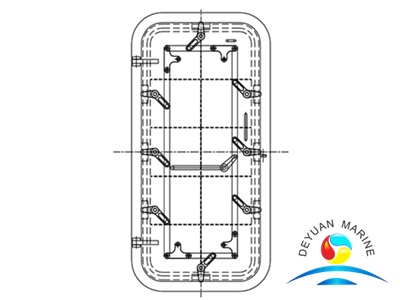

Marine CCS Approved Single Handle Hinged Type Steel Watertight Door
Marine watertight doors are normally use for engine room and the other locations to meet water-pressure requirement. Above type is hinged type steel watertight door with single handle operated, it is mainly consist of steel door plate, door frame, single handle, linkage device, seal packing and hinges etc.
Our ship single handle steel watertight door with features of handle operated, view port options, good quality material, watertightness, and epoxy zinc rich primer coating etc. we can supply many marine watertight doors with different clear size and thickness, main classification socienties certificate such as GL, DNV, CCS, BV, ABS, LR, etc can be provide, welcome contact with us if you are interested in this kind of marine quick acting watertight steel door.
| Model | Clear Size | Cut-out Size | Door Leaf Size | Door Frame Size | Weight(kg) | |||||
| WXh | W1Xh1 | R | W2Xh2 | t | Spec | THK | 6 | 8 | 10 | |
| QLJ-305WA | 500X1000 | 560X1060 | 130 | 555X1055 | 6 8 | 100X50 | 6 8 10 | 100 | 115 | 133 |
| 600X1200 | 660X1260 | 655X1255 | 127 | 152 | 183 | |||||
| 600X1400 | 660X1460 | 655X1455 | 151 | 169 | 189 | |||||
| 750X1400 | 810X1460 | 805X1455 | 166 | 188 | 213 | |||||
| 900X1400 | 960X1460 | 955X1455 | 192 | 217 | 246 | |||||
| 600X1600 | 660X1660 | 655X1655 | 156 | 175 | 196 | |||||
| 750X1600 | 810X1660 | 805X1655 | 175 | 197 | 223 | |||||
| 900X1600 | 960X1660 | 955X1655 | 213 | 242 | 275 | |||||
| Steel door test request:It can be passed the water pressure tank test,whick water pressure 0.1Mpa in the tank. | ||||||||||
