Product Description

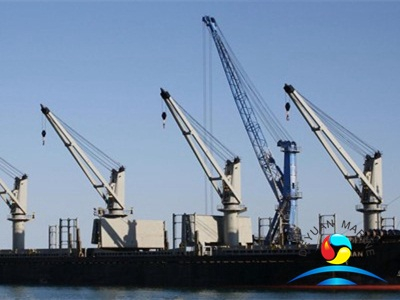

Hydraulic Fixed Type Shipyard Port Cargo Crane(Hydrocylinder Amplitude)
Hydraulic crane is an important hoisting equipment widely use in various engineering construction, such as shipyard, port, habor and cargo yards. it is use for lifting, transportation, loading, unloading and installation works on material mechanical equipment.
Hydrocylinder amplitude shipyard port cargo crane adopt full hydraulic driven, and hydrocylinder amplitude, combine with electro-hydraulic control and manual control, the hoisting speed can be changable gradually, crane arm can also rotating from 0 °to 360 °. Hydrocylinder amplitude have a very important safty device that is balance valve, its main function is to avoid cargo crane out of control when this crane arm come down, it can play a role of speed balance limited, when stop it, it can lock the oil pipe then makes crane arm pending in the space but not loss control.
Such fixed type shipyard port cargo crane with compact structure, steady operating feature, easy operation, safty and reliable, the crane can aslo assemble with remote control system, remote control range is within 100 meters.
| Type | SWL | Out-reach | Hoist Speed | Luffing Time | Slewomg Speed | Power Req. |
| (t) | (h) | (m/min) | (sec) | (r/min) | (kw) | |
| YQ5/18 | 5 | 18 | 25 | 50 | 1 | 55 |
| YQ5/22 | 5 | 22 | 25 | 60 | 1 | 55 |
| YQ5/26 | 5 | 26 | 25 | 60 | 1 | 75 |
| YQ7.5/18 | 7.5 | 18 | 25 | 60 | 1 | 75 |
| YQ7.5/22 | 7.5 | 22 | 25 | 70 | 1 | 75 |
| YQ7.5/26 | 7.5 | 26 | 25 | 70 | 1 | 90 |
| YQ7.5/30 | 7.5 | 30 | 25 | 80 | 1 | 90 |
| YQ10/18 | 10 | 18 | 25 | 60 | 1 | 90 |
| YQ10/22 | 10 | 22 | 25 | 70 | 1 | 110 |
| YQ10/26 | 10 | 26 | 25 | 70 | 1 | 110 |
| YQ10/28 | 10 | 28 | 25 | 80 | 1 | 110 |
| YQ15/18 | 15 | 18 | 20 | 70 | 0.9 | 132 |
| YQ15/22 | 15 | 22 | 20 | 70 | 0.9 | 132 |
| YQ15/26 | 15 | 26 | 20 | 70 | 0.9 | 132 |
| YQ15/30 | 15 | 30 | 20 | 70 | 0.9 | 132 |
| YQ20/18 | 20 | 18 | 18 | 70 | 0.9 | 160 |
| YQ20/22 | 20 | 22 | 18 | 70 | 0.9 | 160 |
| YQ20/26 | 20 | 26 | 18 | 80 | 0.9 | 160 |
| YQ25/18 | 25 | 18 | 18 | 80 | 0.9 | 160 |
| YQ25/22 | 25 | 22 | 18 | 80 | 0.8 | 200 |
| YQ25/24 | 25 | 24 | 18 | 90 | 0.8 | 200 |
| YQ25/26 | 25 | 26 | 18 | 90 | 0.8 | 200 |
| YQ30/18 | 30 | 18 | 16 | 80 | 0.8 | 200 |
| YQ30/22 | 30 | 22 | 16 | 80 | 0.8 | 200 |
| YQ30/26 | 30 | 26 | 16 | 90 | 0.8 | 200 |
| YQ35/28 | 35 | 28 | 15 | 120 | 0.6 | 260 |
| YQ40/28 | 40 | 28 | 15 | 120 | 0.6 | 260 |
More hydraulic cargo crane(hydrocylinder amplitude) can be offered,pls contact us for more details.
