Product Description

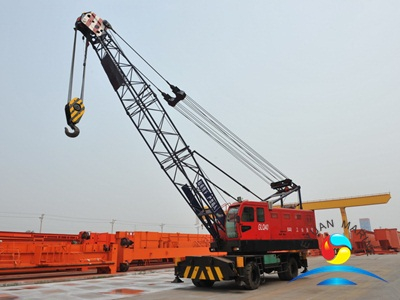

25 Ton / 40 Ton Rubber Tyred Crane For Harbour / Port / Goods Yard:
Rubber Tyred Harbour Crane is one of rotating crane which using tire chassis for moving, with special tire chassis, short body and easy moving charatoristic. Rubber tyred crane safty working load can design to be 25 Ton, 40 ton and 50 ton.
Rubber tyred harbour crane is a crane machine which is extensively applied to loading and unloading all kinds of cargos at various working site. The rubber tyred crane can be used in port, harbour, goods yard, train station, etc. It can lift all kinds of cargo with different tools. Rubber tyred harbour crane also can undertake maintenance and assembly work.
| Drive | Diesel engine - AC power | |||
| Item | Unit | Model | ||
| GLQ25 | GLQ40 | GLQ50 | ||
| Capacity | t | 25 | 40 | 50 |
| Min. Radius (Basic jib) | m | 3.6 | 4.74 | 4 |
| Max.Radius (Longest jib) | m | 22 | 24.8 | 27.5 |
| Lifting Height | m | 23 | 25 | 28 |
| Lifting Speed（Single rope） | m/min | 75 | 60 | 56 |
| Rotating Speed | r/min | 5 | 3 | 2.5 |
| Travel Speed | km/h | 16 | 12 | 11 |
| Luffing time | s | 24 | 35 | 35 |
| （30°～75°） | ||||
| Basic jib length | m | 9.12.15.18 | 12.15.18.21 | 12.15.18.21 |
| 21.24 | 24.27 | 24.27.30 | ||
| Min.Turning radius | m | 8 | 8.6 | 9.5 |
| Gradeability | % | 12.2 | 12.2 | 12.2 |
More rubber tyred harbour crane can be offered,pls contact us for more details.
