1-10T Marine Hydraulic Driven Telescopic Boom Crane

Place of Origin: China (Mainland)
Brand Name: Deyuan
Driven: Hydraulic
SWL:1-10T
Out-reach:10-15m
Hoist Speed:8-15m/min
Slewing Speed: 0.5r/min
Condition: New
Customized: Accept
Transport Package: Export standard
Certificate: CCS, BV, ABS, DNV, RINA LR
  • Deyuan Marine

Product Description

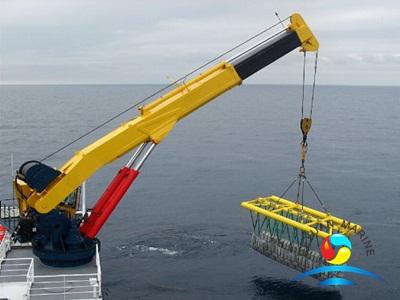

Hydraulic Telescopic Crane

Model SWL Hoist Speed Out-reach Luffing Time Slewing Speed Power REQ.
(T) (m/min) (m) (sec) (r/min) (KW)
HTC1/10 1 8~15 10 60~80 0.5 11
HTC1/15 1 8~15 15 60~80 0.5 11
HTC2/10 2 8~15 10 60~80 0.5 15
HTC2/15 2 8~15 15 60~80 0.5 15
HTC3/10 3 8~15 10 60~80 0.5 18.5
HTC3/15 3 8~15 15 60~80 0.5 18.5
HTC4/10 4 8~15 10 60~80 0.5 22
HTC4/15 4 8~15 15 60~80 0.5 22
HTC5/10 5 8~12 10 70~100 0.5 30
HTC5/15 5 8~12 15 70~100 0.5 30
HTC8/15 8 8~12 15 70~100 0.5 45
HTC10/15 10 8~12 15 70~100 0.5 55

More hydraulic telescopic crane can be offered,pls contact us for more details.
