100 Ton Mobile Yacht Hoisting Crane And Boat Lifting Crane

Origin: Made in China
SWL: 100-200Ton
Speed: 2-35m/min
Working temperature: -20 to 50℃
Application:Yatch, boat
Power supply: Hydraulic
Sling type: Wire rope
Brand: Deyuan Marine

Product Description

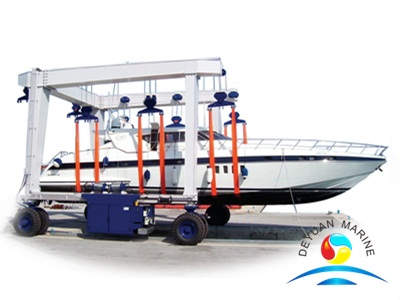

100 Ton Mobile Yacht Hoisting Crane And Boat Lifting Crane


Yacht or boat hositing and lifting crane includes the following items: main structure, traveling wheel block, hoisting mechanism,steering mechanism, hydraulic transmission system, electric control system, the main structure for the “U”type , it can transfer the boat or yatch which the height surpass its height. According to different requirements of our customers, the boat hoist crane can handling different tons boat or yacht from the shore side, capacity can raech 200 ton.


Boat lifting crane can be used for the maintenance on the shore side or can put the new boat inside the water. It adopts the soft and firm belt to lift the boat, yacht; it will never hurt the surface. Mobile yacht and boat hositing crane also can put the boat in sequence quickly with small gap between each two boat.


Rated capacity (t) 100 150 200
Grounding specific pressure (kg/cm3) 11,5 11 11,5
Grade ability (m/min) 2% 4% 4%
Lifting speed (m/min) Full load 0~2 0~1 0~2
Non-load 0~5 0~4 0~3
Running speed(m/min) Full load 0~20 0~20 0~20
Non-load 0~35 0~35 0~35
Working ambient temperature() -20°C~+50°C -20°C~+50°C -20°C~+50°C

More yacht hoist crane can be offered,pls contact us for more details.
